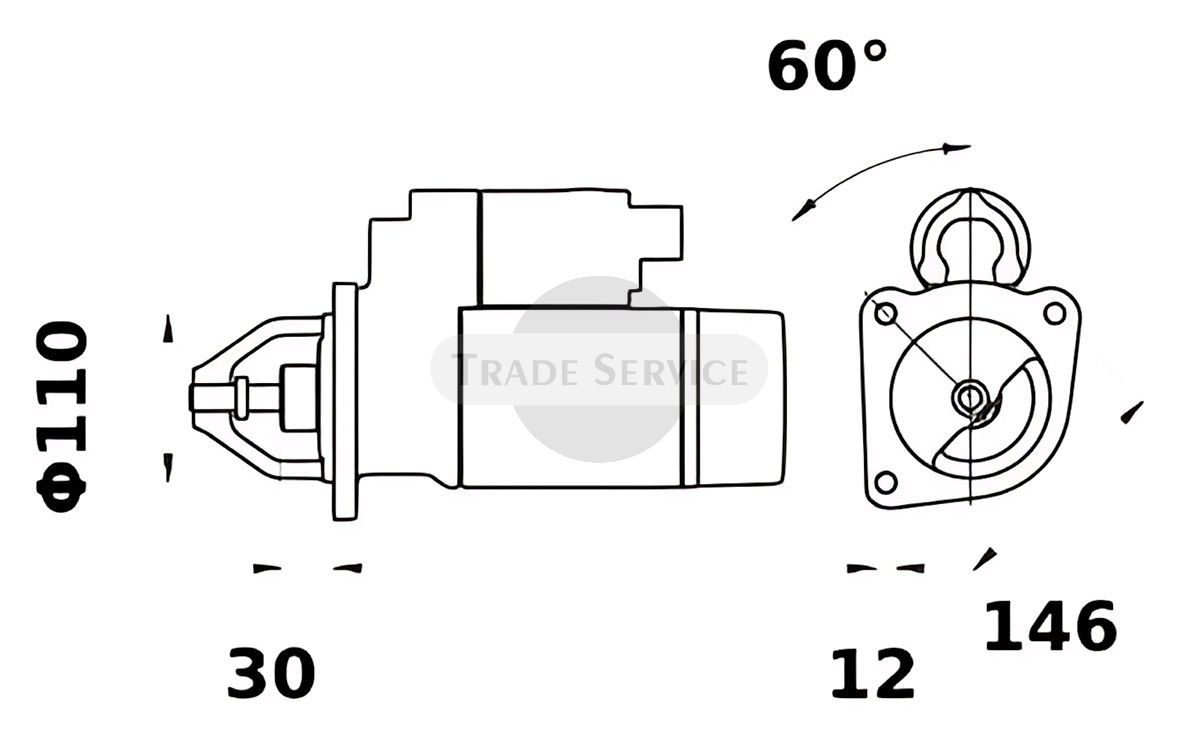

12V 3.0kW z9 (IS0403, MS195)
MAHLE Webkatalog
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Haben Sie Fragen?
403 € 317 €
Verfügbar in 2-3 Werktagen i Unser Lieferant hat diesen Artikel auf Lager, den wir innerhalb der vorgegebenen Zeit besorgen können. Bestellungen, die außerhalb der Geschäftszeiten aufgegeben werden, werden am nächsten Werktag bearbeitet.
Versandkostenrechner
Bestellschlusszeit:
GLS: 15:00 / UPS: 12:30

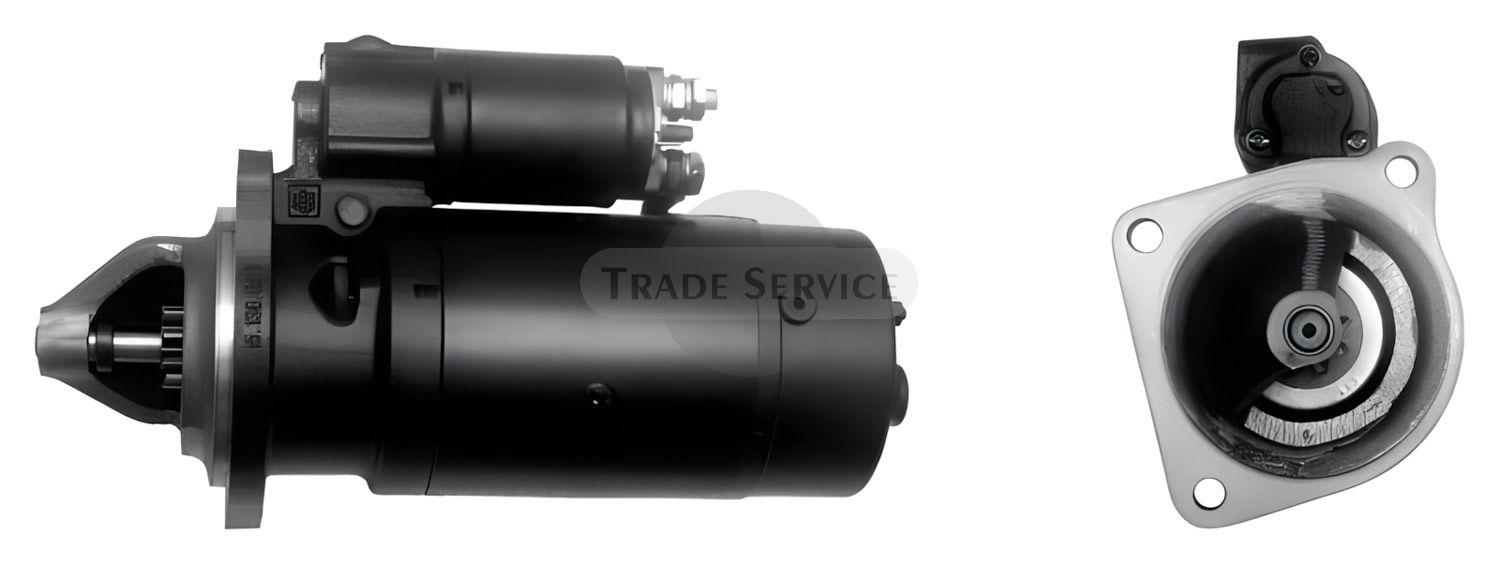

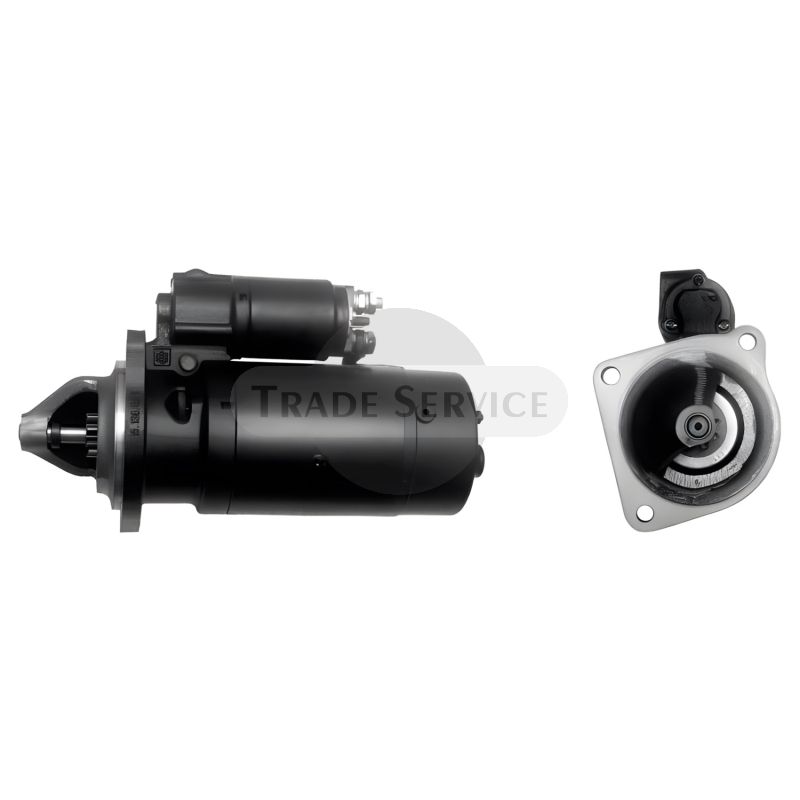

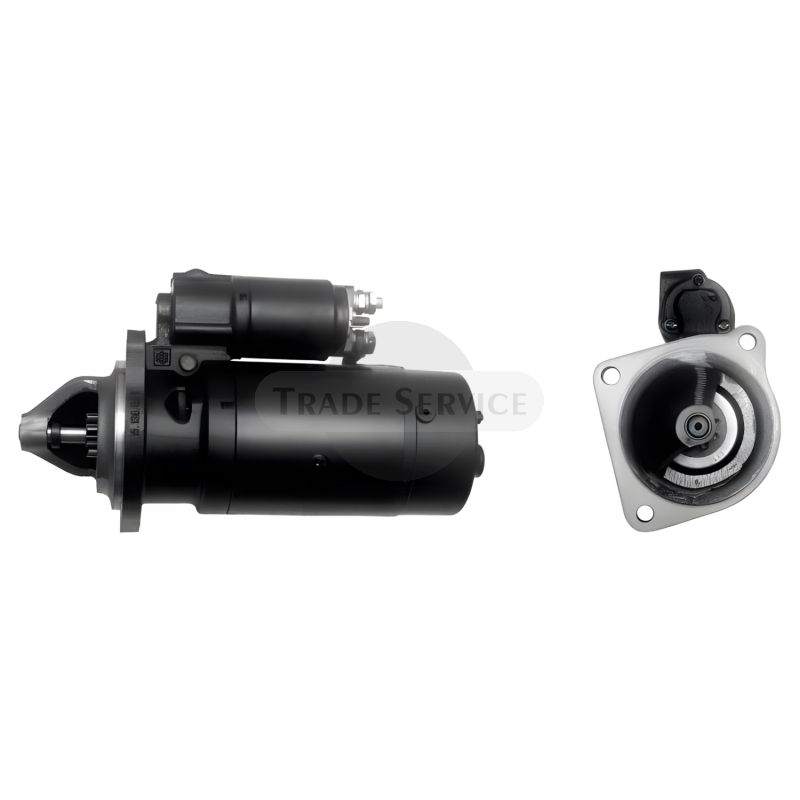

11.130.403 AZJ3110 MS195 MAHLE (Letrika, Iskra) Anlasser (11130403)
Ähnliche Produkte
Wir haben andere Produkte gefunden, die Ihnen gefallen könnten!
Information
11.130.403 AZJ3110 MS195 MAHLE (Letrika, Iskra) Anlasser (11130403) ist ein zuverlässiges Ersatzteil, das häufig bei AGRIFULL, AIFO, BENFRA, FIAT, FIAT-ALLIS, FIAT-OM-CARELLI-ELEVATORI, IVECO, LAVERDA (FIATAGRI), NEW HOLLAND ITALIA, VM MOTORI, WHITE Motoren verwendet wird.
Genaue Modelle und Referenznummern finden Sie in den Listen unten.
Falls Sie Fragen zu diesem Produkt haben oder Hilfe bei der Suche nach dem richtigen Ersatzteil benötigen, können Sie sich gerne an uns wenden!
Wir sind hier, um Ihnen zu helfen, Ihr Geschäft am Laufen zu halten.
Referenznummern
| AGCO | C000900060050 |
|---|---|
| BOSCH (USA) | SR914X |
| BOSCH | 0001359021, 0001359102, 0001367028, 0001367082, 0986011220, 0986011221 |
| CLAAS | 6005706621 |
| CNH / FIAT AGRI | 87376493 |
| EFEL | 11370 |
| FIAT NEW HOLLAND | 4169093, 4692478, 4702248, 4832942 |
| FIAT | 2022506, 4699705, 4737755, 4755109, 4807375, 88205006, 9972215 |
| HELLA | 8EA726032001, CS240 |
| IVECO | 500333271, 504059251 |
| LANCIA | 2022507, 4699705, 88205006 |
| LESTER | 16659, 17111, 18029 |
| LUCAS | LRS00847 |
| MAGNETI MARELLI | 30380301, 63213815, 63216825, 63216826, 63216827, 63296865, MSN219, MT38QA, MT38TB, MT68A, MT68AA, MT68AB, MT68AC, MT68AD |
| MAHLE (Letrika, Iskra) | IS0403, 11130410, AZJ3116, 11130403, AZJ3110, MS195, 11130322, AZJ3582, 11130199, AZJ3535, 11130140, AZJ3517 |
| PRESTOLITE | 20500847 |
| SPAREX | 35971 |
| VALEO | 436073, 458297 |
| WILSON | 91157010 |
Kompatibilität
| Hersteller | Modell | Typ | Motor | Leistung | Baujahr |
|---|---|---|---|---|---|
| AGRIFULL | 65 | - | 8045.06.320 | 3.6 | 1985.03-1989.12 |
| AGRIFULL | 65 | DT | 8045.06.220 | 3.6 | 1985.03- |
| AGRIFULL | 65 | LM | 8045.06.321 | 3.6 | 1990.01- |
| AGRIFULL | 670 | - | Fiat-8045.02.378 | 3.5 | 1980.09-1984.12 |
| AGRIFULL | 70 | - | 8045.06.206 | 3.6 | 1984.10- |
| AGRIFULL | 70 | - | 8045.06.307 | 3.6 | 1990.01- |
| AGRIFULL | 70 | .86F.V | 8045.06.208.309 | 3.6 | 1992.09- |
| AGRIFULL | 70 | C | 8045.06.306 | 3.6 | 1985.03-1989.12 |
| AGRIFULL | 70 | C | 8045.06.307 | 3.6 | 1990.01- |
| AGRIFULL | 70 | C-L | 8045.06.206 | 3.6 | 1985.03- |
| AGRIFULL | 70 | DT Frutteto | 8045.06.208 | 3.6 | 1985.03- |
| AGRIFULL | 70 | Frutteto | 8045.06.308 | 3.6 | 1985.03-1989.12 |
| AGRIFULL | 70 | Frutteto | 8045.06.309 | 3.6 | 1990.01- |
| AGRIFULL | 80 | - | 8045.05.206.306 | 3.9 | 1984.10-1989.12 |
| AGRIFULL | 80 | - | 8045.05.207.307 | 3.9 | 1990.01- |
| AGRIFULL | 80 | .66 | 8045.02.276 | 3.5 | 1984.03-1984.12 |
| AGRIFULL | 80 | .70C | Fiat-8045.02.211 | 3.5 | 1980.09-1983.03 |
| AGRIFULL | 80 | .70F | Fiat-8045.02.278 | 3.5 | 1980.09-1984.12 |
| AGRIFULL | 80 | .76 | 8045.04.276 | 3.7 | 1984.03-1984.12 |
| AGRIFULL | 80 | C | 8045.05.206.306 | 3.9 | 1985.03-1989.12 |
| AGRIFULL | 80 | C | 8045.05.207.307 | 3.9 | 1990.01- |
| AGRIFULL | 80 | DTF | 8045.05.308 | 3.9 | 1986.09-1989.12 |
| AGRIFULL | 80 | DTF | 8045.05.309 | 3.9 | 1990.01- |
| AGRIFULL | 80 | F | 8045.05.208 | 3.9 | 1986.09-1989.12 |
| AGRIFULL | 80 | F | 8045.05.209 | 3.9 | 1990.01- |
| AGRIFULL | 82 | .86F | 8045.05.208.309 | 3.9 | 1992.06- |
| AGRIFULL | A | 70LM | 8045.06.206.307 | 3.6 | 1990.01- |
| AIFO | 8031 | .04.300 | - | 2.8 | 1979.06-1983.06 |
| AIFO | 8041 | .04.200 | - | 3.7 | 1980.03-1980.12 |
| AIFO | 8041 | .04.300 | - | 3.7 | 1979.06-1983.06 |
| AIFO | 8060 | .02.800 | - | 5.2 | 1973.06-1981.10 |
| AIFO | 8060 | .02.811 | - | 5.2 | 1973.06-1980.12 |
| AIFO | 8061 | .04.000 | - | 5.5 | 1979.06-1983.06 |
| AIFO | 8061 | .04.050 | - | 5.5 | 1979.06-1983.06 |
| AIFO | 8061 | .04.051 | - | 5.5 | 1981.09-1983.06 |
| AIFO | 8061 | .04.060 | - | 5.5 | 1978.06-1983.06 |
| AIFO | 8061 | .04.061 | - | 5.5 | 1981.09-1983.06 |
| AIFO | 8065 | .02.000 | - | 5.2 | 1973.06-1980.12 |
| BENFRA | 1.45 | - | Aifo-8041SI25 | 3.9 | 1989.06- |
| BENFRA | 215 | I | Aifo-8031I002 | 2.8 | 1979.01-1985.06 |
| BENFRA | 4.11 | - | Aifo-8041SI25 | 3.9 | 1989.01- |
| BENFRA | 7.07 | - | Aifo-8041SI25 | 3.9 | 1989.01-1991.04 |
| BENFRA | 9.09 | CH | Aifo-8061SI25 | 5.9 | 1985.10-1991.04 |
| BENFRA | 9.10 | CH | Aifo-8061SI25 | 5.9 | 1985.02-1991.04 |
| FIAT | 1000 | DT.DTS.S | 8065.02.200 | 5.2 | 1975.04-1979.12 |
| FIAT | 1380 | - | 8065.24.000 | 5.5 | 1980.09-1983.12 |
| FIAT | 580 | DT | 8035.04.270 | 2.8 | 1977.12-1984.02 |
| FIAT | 600 | 600 | 8045.02.. 60HP | 3.5 | 1971.01-1972.12 |
| FIAT | 605 | C.CS | 8045.02.211 | 3.5 | 1977.01-1982.07 |
| FIAT | 640 | DT | 8045.02.200 | 3.5 | 1972.10-1982.03 |
| FIAT | 65 | 46 | 8045.06.220.320 | 3.6 | 1985.04-1988.12 |
| FIAT | 65 | 56 | 8045.06.220.321 | 3.6 | 1990.01- |
| FIAT | 65 | 66 | 8045.06.220.321 | 3.6 | 1987.06- |
| FIAT | 65 | 88 | 8045.06.219.319 | 3.6 | 1989.11- |
| FIAT | 65 | 90 | 8045.06.225 | 3.6 | 1987.09-1992.12 |
| FIAT | 66 | .80S | 8045.05.000 | 80HP | 3.9 |
| FIAT | 665 | C | 8045.02.276 | 3.5 | 1982.06-1984.12 |
| FIAT | 666 | - | 8045.02.276 | 3.5 | 1982.02-1984.12 |
| FIAT | 666 | DT | 8045.02.376 | 3.5 | 1982.02-1984.12 |
| FIAT | 670 | - | 8045.02.278 | 3.5 | 1980.09-1982.04 |
| FIAT | 670 | DT | 8045.02.270 | 3.5 | 1977.07-1982.04 |
| FIAT | 680 | DT | 8045.02.270 | 3.5 | 1977.07-1984.02 |
| FIAT | 70 | 56 | 8045.06.206.307 | 3.6 | 1990.01- |
| FIAT | 70 | 65 | 8045.06.206.306 | 3.6 | 1984.10-1989.02 |
| FIAT | 70 | 66 | 8045.06.206 | 3.6 | 1984.09- |
| FIAT | 70 | 66 Vigneto | 8045.06.208.309 | 3.6 | 1990.01- |
| FIAT | 70 | 66DT | 8045.06.307 | 3.6 | 1990.01- |
| FIAT | 70 | 66F.FDT.LP.DT | 8045.06.208.309 | 3.6 | 1990.01- |
| FIAT | 70 | 75 | 8045.06.206.307 | 3.6 | 1990.01- |
| FIAT | 70 | 76 | 8045.06.208.309 | 3.6 | 1990.01- |
| FIAT | 70 | 88 | 8045.06.216.317 | 3.6 | 1989.11- |
| FIAT | 70 | 90 | 8045.06.200 | 3.6 | 1984.03- |
| FIAT | 765 | C | 8045.04.276 | 3.7 | 1982.06-1984.12 |
| FIAT | 766 | .DT | 8045.04.376 | - | 1982.01-1983.12 |
| FIAT | 766 | DT | 8045.04.376 | 3.7 | 1982.02-1983.12 |
| FIAT | 766 | DT | 8045.04.376 | 3.7 | 1982.02-1984.12 |
| FIAT | 780 | DT | 8045.04.270 | 3.7 | 1975.01-1984.02 |
| FIAT | 80 | 65 | 8045.06.200 | 3.9 | 1984.10-1989.02 |
| FIAT | 80 | 66 2RM | 8045.05.208 | 3.9 | 1987.05-1989.12 |
| FIAT | 80 | 66 2RM | 8045.05.209 | 3.9 | 1990.01- |
| FIAT | 80 | 66 4RM | 8045.05.308 | 3.9 | 1987.05-1989.12 |
| FIAT | 80 | 66 4RM | 8045.05.309 | 3.9 | 1990.01- |
| FIAT | 80 | 66.DT | 8045.05.207.307 | 3.9 | 1990.01- |
| FIAT | 80 | 66.DT | 8045.06.206.306 | 3.9 | 1984.09-1989.12 |
| FIAT | 80 | 75 | 8045.05.206 | 3.9 | 1989.03-1989.12 |
| FIAT | 80 | 75 | 8045.05.207 | 3.9 | 1990.01- |
| FIAT | 80 | 88 | 8045.05.216.317 | 3.9 | 1989.11- |
| FIAT | 80 | 90.DT | 8045.05.205 | 3.9 | 1984.03- |
| FIAT | 85 | 55 | 8045.05.200.300 | 3.9 | 1984.10-1989.06 |
| FIAT | 85 | 90 | 8045.25.310 | 3.9 | 1991.01- |
| FIAT | 855 | C | 8045.04.275 | 3.7 | 1981.02-1984.12 |
| FIAT | 880 | 5 | 8055.04.200 | 4.6 | 1980.09-1982.08 |
| FIAT | DI | 25C | 8035.04.359 | 2.8 | 1980.01-1986.02 |
| FIAT | DI | 25C | 8035.05.359 | 2.9 | 1986.02-1990.12 |
| FIAT | DI | 30 | 8045.02.359 | 3.5 | 1973.01-1981.11 |
| FIAT | DI | 30C | 8035.04.359 | 2.8 | 1980.01-1986.02 |
| FIAT | DI | 30C | 8035.05.359 | 2.9 | 1986.02-1990.12 |
| FIAT | DI | 30C | 8045.04.359 | 3.7 | 1981.07-1985.05 |
| FIAT | DI | 30CH | 8045.05.359 | 3.9 | 1985.06-1990.12 |
| FIAT | DI | 35 | 8045.02.359 | 3.5 | 1973.01-1981.11 |
| FIAT | DI | 35C | 8045.04.359 | 3.7 | 1981.07-1985.05 |
| FIAT | DI | 35C | 8045.05.359 | 3.9 | 1985.06-1990.12 |
| FIAT | DI | 40 | 8045.02.359 | 3.5 | 1973.01-1981.11 |
| FIAT | DI | 40C | 8045.04.359 | 3.7 | 1981.07-1985.05 |
| FIAT | DI | 40C | 8045.05.359 | 3.9 | 1985.06-1990.12 |
| FIAT | DI | 45C | 8045.05.359 | 3.9 | 1985.06-1990.12 |
| FIAT | DI | 50 | 8045.02.356 | 3.5 | 1973.01-1981.07 |
| FIAT | DI | 50CH | 8045.05.359 | 3.9 | 1985.06-1990.12 |
| FIAT | DI | 60C | 8045.05.359 | 3.9 | 1985.06-1990.12 |
| FIAT | DI | 70 | 8055.04.250 | 4.6 | 1981.01-1981.12 |
| FIAT | DI | 70C | 8055.05.250 | 4.9 | 1985.10-1990.12 |
| FIAT | DI | 80C | 8055.05.250 | 4.9 | 1985.10-1990.12 |
| FIAT | DIM | 30 | 8045.02.358 | 3.5 | 1973.01-1981.11 |
| FIAT | DIM | 35 | 8045.02.358 | 3.5 | 1973.01-1981.11 |
| FIAT-ALLIS | 545 | B | 8061.I000Alles.009 | 5.5 | 1981.09-1982.12 |
| FIAT-ALLIS | FG | 65A | 8041.04.300 | 3.7 | 1984.03-1988.01 |
| FIAT-ALLIS | FL | 4C | 8035.02.261 | 2.6 | 1970.11-1978.07 |
| FIAT-ALLIS | FL | 4C | 8035.02.361 | 2.6 | 1970.11-1978.07 |
| FIAT-ALLIS | FL | 4D | 8035.02.365 | 2.6 | 1970.11-1978.07 |
| FIAT-OM-CARELLI-ELEVATORI | DI | 20C | 8035.05.359 | 2.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 25C | 8035.05.359 | 2.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 30C | 8035.05.359 | 2.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 30CH | 8045.05.359 | 3.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 35C | 8045.05.359 | 3.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 40C | 8045.05.359 | 3.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 45C | 8045.05.359 | 3.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 50CH | 8045.05.359 | 3.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 60C | 8045.05.359 | 3.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 70C | 8055.05.250 | 4.9 | 1990.12- |
| FIAT-OM-CARELLI-ELEVATORI | DI | 80C | 8055.05.250 | 4.9 | 1990.12- |
| IVECO | AIFO-8031 | 04.300 | - | 2.8 | 1983.06-1984.12 |
| IVECO | AIFO-8031 | 05.300 | - | 2.9 | 1985.01-1989.12 |
| IVECO | AIFO-8031 | I 05.00 | - | 2.9 | 1990.01- |
| IVECO | AIFO-8041 | 04.300 | - | 3.7 | 1983.06-1984.12 |
| IVECO | AIFO-8041 | 05.260 | - | 3.9 | 1986.06-1988.09 |
| IVECO | AIFO-8041 | 05.300 | - | 3.9 | 1985.01-1989.12 |
| IVECO | AIFO-8041 | I 05.00 | - | 3.9 | 1990.01- |
| IVECO | AIFO-8041 | I 05.50 | - | 3.9 | 1990.01- |
| IVECO | AIFO-8041 | SI 25.00 | - | 3.9 | 1990.01- |
| IVECO | AIFO-8051 | 04.100 | - | 4.6 | 1984.01-1984.12 |
| IVECO | AIFO-8051 | 05.200 | - | 4.9 | 1985.01-1989.12 |
| IVECO | AIFO-8051 | I 05.00 | - | 4.9 | 1990.01- |
| IVECO | AIFO-8061 | 04.000 | - | 5.5 | 1983.06-1984.12 |
| IVECO | AIFO-8061 | 04.001 | - | 5.5 | 1984.01-1984.12 |
| IVECO | AIFO-8061 | 04.060 | - | 5.5 | 1983.06-1984.12 |
| IVECO | AIFO-8061 | 04.061 | - | 5.5 | 1983.06-1983.07 |
| IVECO | AIFO-8061 | 05.000 | - | 5.9 | 1985.01-1989.12 |
| IVECO | AIFO-8061 | 05.260 | - | 5.9 | 1990.01- |
| IVECO | AIFO-8061 | 05.260 | - | 5.9 | 1986.06-1988.09 |
| IVECO | AIFO-8061 | 05.300 I 25 | - | 5.9 | 1986.01-1989.12 |
| IVECO | AIFO-8061 | 24.000 | - | 5.5 | 1984.01-1985.12 |
| IVECO | AIFO-8061 | 25.000 | - | 5.9 | 1986.01- |
| IVECO | AIFO-8061 | 25.010 | - | 5.9 | 1985.01- |
| IVECO | AIFO-8061 | I 05.00 | - | 5.9 | 1990.01- |
| IVECO | AIFO-8061 | I 25.00 | - | 5.9 | 1990.01- |
| IVECO | AIFO-8061 | SI 35.05 | - | 5.9 | 1991.12- |
| IVECO | AIFO-8061 | SRI 25.00 | - | 5.9 | 1989.10- |
| IVECO | DI | 20C. 25C. 30C | 8035.05.359 | 2.9 | 1986.02-1990.12 |
| LAVERDA (FIATAGRI) | 3300 | - | 8051.04.100 | 4.6 | 1983.01-1986.12 |
| LAVERDA (FIATAGRI) | 3300 | AL | 8051I005 | 4.9 | 1983.04- |
| LAVERDA (FIATAGRI) | 3350 | - | 8065I | 5.2 | 1983.01-1986.06 |
| LAVERDA (FIATAGRI) | 3350 | AL | 8061SI | 5.5 | 1983.01-1986.12 |
| LAVERDA (FIATAGRI) | 3400 | - | 8061I005 | 5.9 | 1986.05- |
| LAVERDA (FIATAGRI) | 3450 | - | 8065I | 5.2 | 1983.01-1984.12 |
| LAVERDA (FIATAGRI) | 3500 | - | 8061I05 | 5.5 | 1985.01- |
| LAVERDA (FIATAGRI) | 3550 | - | 8061SI05 | 5.9 | 1985.03- |
| LAVERDA (FIATAGRI) | 3600 | - | 8061SI | 5.5 | 1983.01-1986.06 |
| LAVERDA (FIATAGRI) | 3650 | - | 8061I05 | 5.9 | 1985.06- |
| LAVERDA (FIATAGRI) | 3750 | - | 8061SI25 | 5.5 | 1985.06- |
| NEW HOLLAND ITALIA | 3500 | - | 8061I05 | 5.5 | 1985.03- |
| NEW HOLLAND ITALIA | 3550 | - | 8061SI05 | 5.9 | 1985.03- |
| NEW HOLLAND ITALIA | 3750 | - | 8061SI25 | 5.9 | 1985.06- |
| NEW HOLLAND ITALIA | 517 | H | 8061SI35 | 5.9 | 1939.02- |
| NEW HOLLAND ITALIA | 517 | I | 8061SI35 | 5.9 | 1939.02- |
| NEW HOLLAND ITALIA | 517 | M | 8061SI35 | 5.9 | 1939.02- |
| NEW HOLLAND ITALIA | 65 | 56 | 8045.06.220.321 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 65 | 66 | 8045.06.220.321 | 3.6 | 1987.06- |
| NEW HOLLAND ITALIA | 65 | 88 | 8045.06.319 | 3.6 | 1989.11- |
| NEW HOLLAND ITALIA | 65 | 90 | 8045.06.225 | 3.6 | 1987.09- |
| NEW HOLLAND ITALIA | 70 | 56 | 8045.06.206 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 70 | 56 | 8045.06.307 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 70 | 66 | 8045.06.206 | 3.6 | 1984.09- |
| NEW HOLLAND ITALIA | 70 | 66DT.LP | 8045.06.307 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 70 | 66F.DT.LP | 8045.06.208.309 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 70 | 75 | 8045.06.206.307 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 70 | 76V | 8045.06.208 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 70 | 76V | 8045.06.309 | 3.6 | 1990.01- |
| NEW HOLLAND ITALIA | 70 | 86F.V | 8045.06.208.309 | 3.6 | 1992.09- |
| NEW HOLLAND ITALIA | 70 | 88 | 8045.06.317 | 3.6 | 1989.11- |
| NEW HOLLAND ITALIA | 70 | 90 | 8045.06.200 | 3.6 | 1984.03- |
| NEW HOLLAND ITALIA | 80 | 88 | 8045.05.216.317 | 3.9 | 1989.11- |
| NEW HOLLAND ITALIA | 82 | 86F | 8045.05.208.309 | 3.9 | 1992.06- |
| NEW HOLLAND ITALIA | L | 517H.I.M | 8061SI35 | 5.9 | 1992.03- |
| VM MOTORI | HR | 329SHTR | - | 1.8 | 1986.01- |
| WHITE | TRACTORS | 2-50 | Fiat Engine | - | 1976.01-1980.01 |
| WHITE | TRACTORS | 2-60 | 4-211 | - | 1976.01-1984.01 |
Mehr Informationen
| Gewicht (kg) | 14.611000 |
|---|---|
| Zustand | Neu |
| Die Spannung | 12 V |
| Die Leistung | 3.0 kW |
| Zähnezahl | 9 |
| Drehrichtung | Im Uhrzeigersinn |
Ersatzteile
-
-
-
-
-
Stellvertretend
-
-
-
-
-
-
-
-
