24V 4.0kW z9 (IS0491, MS386)
MAHLE Webkatalog
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Haben Sie Fragen?
474 € 373 €
Verfügbar in 2-3 Werktagen i Unser Lieferant hat diesen Artikel auf Lager, den wir innerhalb der vorgegebenen Zeit besorgen können. Bestellungen, die außerhalb der Geschäftszeiten aufgegeben werden, werden am nächsten Werktag bearbeitet.
Versandkostenrechner
Bestellschlusszeit:
GLS: 15:00 / UPS: 12:30

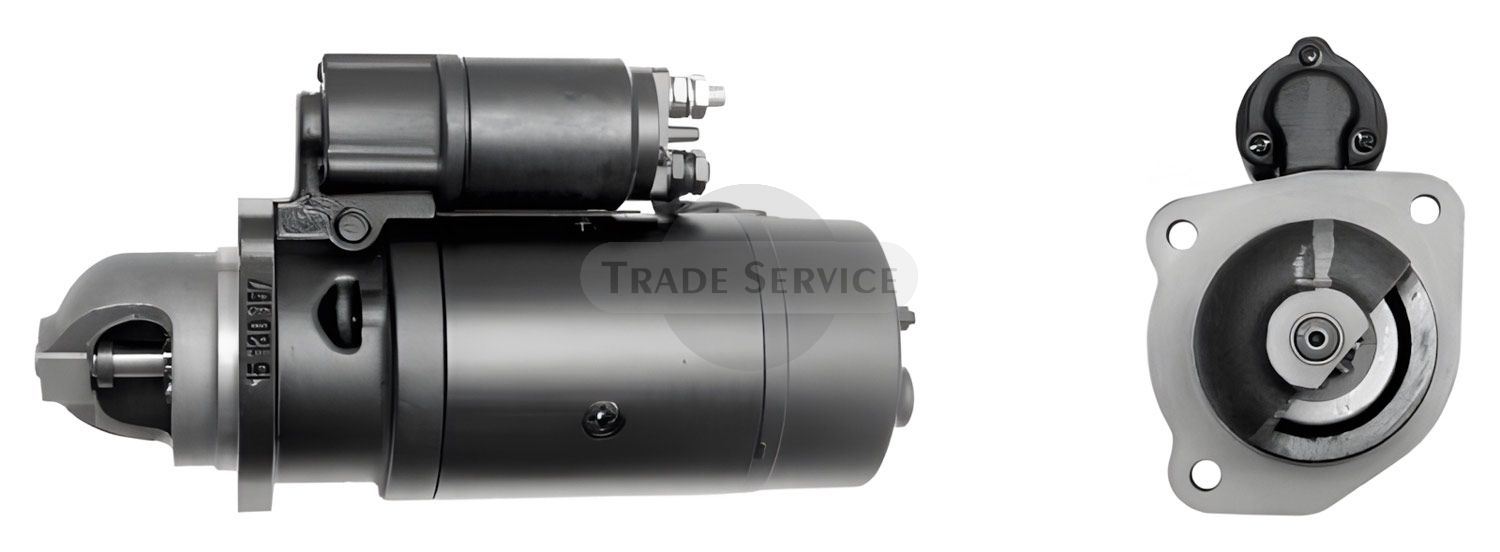

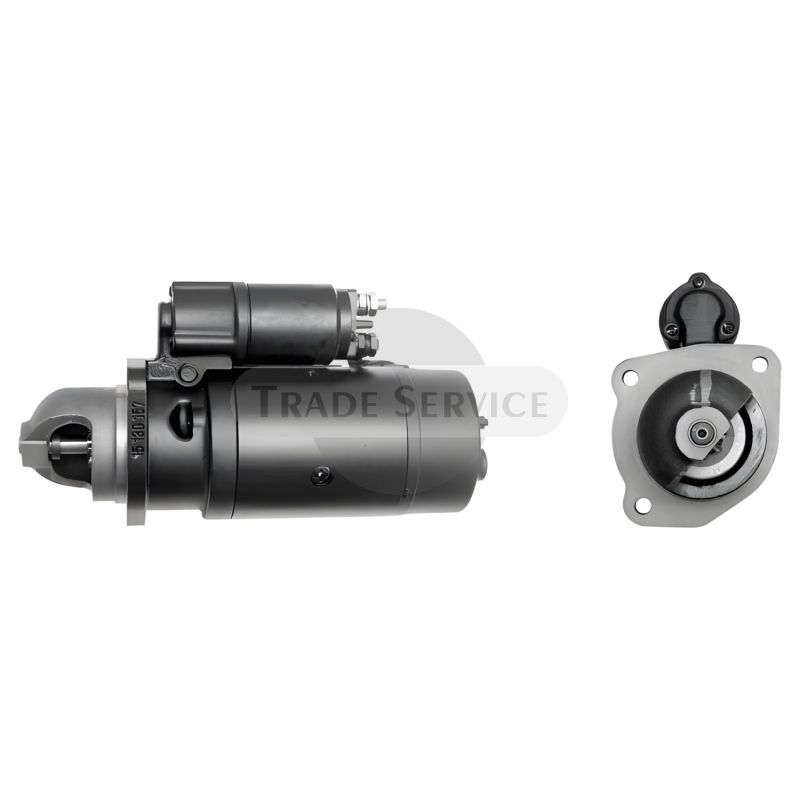

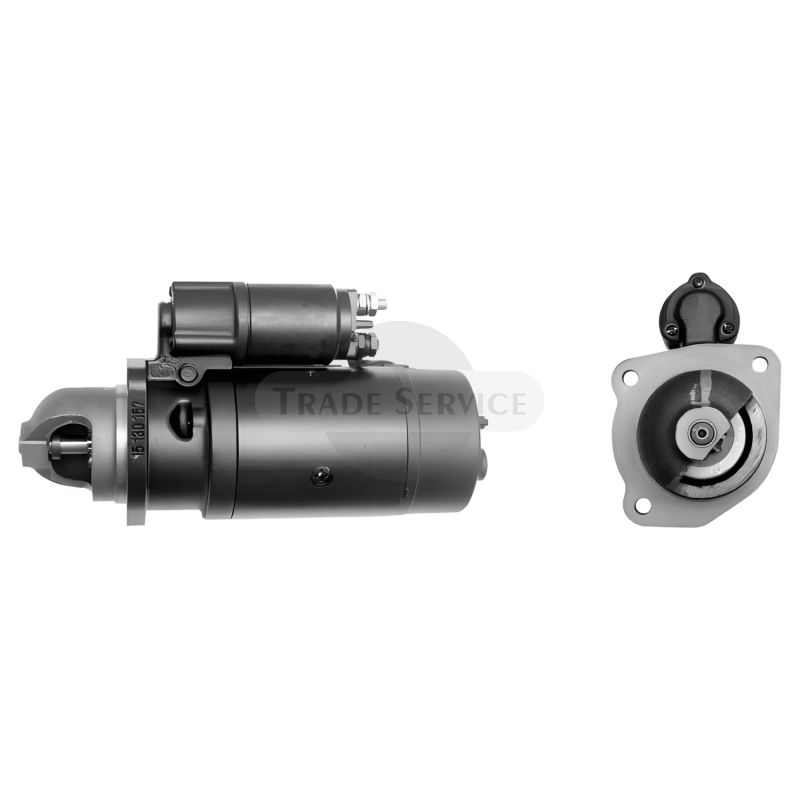

11.130.491 AZJ3132 MS386 MAHLE (Letrika, Iskra) Anlasser (11130491)
Referenznummern
| AHLMANN (MECALAC) | 4188195A, 6929014 |
|---|---|
| ATLAS | 0892155 |
| BOMAG | 05710903 |
| BOSCH (USA) | SR913X |
| BOSCH | 0001360003, 0001360012, 0001360035, 0001368001, 0001368007, 0986011270 |
| DAF | 1516768R |
| DEUTZ AG (KHD) | 01161422, 01164995, 01173241, 01173820 |
| EFEL | 10460, 11580 |
| FAUN | 1701065 |
| HELLA | 8EA726170001, CS530 |
| IVECO | 42522653 |
| LESTER | 17045, 17073 |
| LIEBHERR | 42488477, 6200662, 6200827 |
| LUCAS | LRS00923 |
| MAGNETI MARELLI | 943252205, MSR698 |
| MAHLE (Letrika, Iskra) | IS0491, 11130491, AZJ3132, MS386, 11130141, AZJ3518 |
| NIKKO | E41565 |
| O&K | 744648 |
| PRESTOLITE | 859539 |
| SPAREX | 36128 |
| TORPEDO | 0212403 |
| VALEO | 455516 |
| VOLVO | 6209190 |
Kompatibilität
| Hersteller | Modell | Typ | Motor | Leistung | Baujahr |
|---|---|---|---|---|---|
| ABG | TITAN | 211 | KHD-F3L912 | 2.8 | 1968.02-1975.12 |
| ABG | TITAN | 350S | KHD-F4L912 | 3.8 | 1971.03-1991.12 |
| ABG | TITAN | 360 | KHD-F4L912 | 3.8 | 1972.05-1990.12 |
| ABG | TITAN | 410S | KHD-BF6L912 | 5.7 | 1972.03-1990.12 |
| AHLMANN (MECALAC) | A | 69 | KHD-F4L912 | 3.8 | 1968.06-1974.12 |
| AHLMANN (MECALAC) | FRONT LOADERS | AF10 | KHD-F4L912 | 3.8 | 1968.06-1980.12 |
| AHLMANN (MECALAC) | SYSTEM 180 (SWING) | AS7 | KHD-F4L912 | 3.8 | 1968.06-1979.12 |
| CASE | EXCAVATORS | B60CL | - | 1976.03-1988.01 | |
| CASE | EXCAVATORS | B75CL | - | 1975.06-1988.01 | |
| CASE | EXCAVATORS | B75P | - | 1975.09-1988.01 | |
| CASE | EXCAVATORS | LC80 | - | 1969.01-1976.06 | |
| CASE | EXCAVATORS | LY80 | - | 1969.01-1977.01 | |
| DEMAG | H | 15C.P | KHD-F4L912 | 3.8 | 1974.04-1978.12 |
| DEMAG | H | 21C.P | KHD-F5L912 | 4.7 | 1974.04-1978.12 |
| DEMAG | H | 23C.L | KHD-F6L912 | 5.6 | 1974.04-1978.12 |
| DEUTZ AG (KHD) | BF6L912 | - | 5.6 | 1973.01-1973.06 | |
| DEUTZ AG (KHD) | F3L911 | - | 2.5 | 1973.01-1973.07 | |
| DEUTZ AG (KHD) | F3L912 | - | 2.8 | 1973.01-1975.12 | |
| DEUTZ AG (KHD) | F4L911 | - | 3.3 | 1973.01-1973.07 | |
| DEUTZ AG (KHD) | F4L912 | - | 3.8 | 1973.01-1975.12 | |
| DEUTZ AG (KHD) | F5L912 | - | 1972.04-1975.12 | ||
| DEUTZ AG (KHD) | F6L911 | - | 4.9 | 1973.01-1973.07 | |
| DEUTZ AG (KHD) | F6L912 | - | 1971.06-1975.12 | ||
| DEUTZ AG (KHD) | F6L912 | - | 5.6 | 1973.01-1975.12 | |
| DEUTZ AG (KHD) | FM1012 | - | - | ||
| DEUTZ AG (KHD) | FM1013 | - | - | ||
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M110 | D7/8/9FK | F6L912 | 5.6 | 1967.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M110 | D7/8/9FS | F6L912 | 5.6 | 1967.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M110 | D7/8FL | F6L912 | 5.6 | 1967.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M110 | D9/11FL | F6L912 | 5.6 | 1967.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M120 | D12AK | F6L912 | 5.7 | 1971.05-1973.08 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M120 | D12K | F6L912 | 5.7 | 1971.05-1973.08 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M120 | D7FA | F6L912 | 5.7 | 1969.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M120 | D7FK | F6L912 | 5.7 | 1969.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M120 | D7FL | F6L912 | 5.7 | 1969.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M120 | D7FS | F6L912 | 5.7 | 1969.10-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M120 | R80 | F6L912 | 5.7 | 1973.01-1974.12 |
| EISENWERKE KAISERSLAUTERN | PL | 60R | KHD-F6L912 | 5.6 | 1968.01-1979.12 |
| FUCHS | 118 | M | KHD-F6L912 | 3.8 | 1975.06-1986.12 |
| IVECO | 110 | 13A.. | KHD-BF6L913T | 6.1 | 1986.03-1991.12 |
| IVECO | 110 | 16A.. | KHD-BF6L913 | 6.1 | 1986.03-1991.12 |
| IVECO | 120 | 13ANW | KHD-BF6L913T | 6.1 | 1983.08-1988.02 |
| IVECO | 120 | 13ANW | KHD-F6L913 | 6.1 | 1983.01-1986.02 |
| IVECO | 130 | 13A.. | KHD-BF6L913T | 6.1 | 1986.03-1989.05 |
| IVECO | 130 | 16A.. | KHD-BF6L913 | 6.1 | 1986.03-1991.10 |
| IVECO | 60 | 9A | KHD-BF4L913T | 4.1 | 1985.11-1988.04 |
| IVECO | 75 | 9A | KHD-BF4L913T | 4.1 | 1985.11-1989.05 |
| IVECO | 80 | 13A.. | BF6L913TVollkaps. | 6.1 | 1986.03-1991.12 |
| IVECO | 80 | 13A.. | KHD-BF6L913T. | 6.1 | 1986.03-1991.12 |
| IVECO | 80 | 16A.. | KHD-BF6L913 | 6.1 | 1986.03-1991.12 |
| IVECO | 90 | 13A.. | KHD-BF6L913T | 6.1 | 1986.03-1991.12 |
| MAGIRUS-DEUTZ | 130R | 81 | F6L913 | 6.1 | 1977.10-1979.12 |
| MAGIRUS-DEUTZ | M120 | R80 | F6L912 | 5.7 | 1975.01-1979.09 |
| MAGIRUS-DEUTZ | M90 | D5.2/5.6/6.5/7.5FK | F4L913 | 4.1 | 1976.05-1982.10 |
| MAGIRUS-DEUTZ | M90 | D5.2/5.6/6/6.5/7.5FL | F4L913 | 4.1 | 1976.05-1982.10 |
| MAGIRUS-DEUTZ | M90 | D5.2/5.6/6/6.5/7.5FV | F4L913 | 4.1 | 1976.05-1982.10 |
| O&K | G | 8 | KHD-F6L912 | 5.7 | 1974.01-1987.06 |
| O&K | L | 10 | KHD-F4L912 | 3.8 | 1974.01-1986.12 |
| O&K | L | 15 | KHD-F5L912 | 4.7 | 1974.01-1986.12 |
| O&K | MH | 4 | KHD-F3L912 | 2.8 | 1973.01-1976.08 |
| O&K | MH | 4 | KHD-F4L912 | 3.8 | 1976.09-1990.06 |
| O&K | MH | 6 | KHD-F4L912 | 3.8 | 1973.01-1976.08 |
| O&K | MH | 6 | KHD-F5L912 | 4.7 | 1976.09-1990.06 |
| O&K | MH | 6 | KHD-F6L912 | 5.7 | 1976.09-1990.06 |
| O&K | RH | 3 | KHD-F3L912 | 2.8 | 1976.01-1982.06 |
| O&K | RH | 4 | KHD-F3L912 | 2.8 | 1973.01-1976.08 |
| O&K | RH | 4 | KHD-F4L912 | 3.8 | 1976.09-1990.06 |
| O&K | RH | 6 | KHD-F4L912 | 3.8 | 1973.01-1976.08 |
| O&K | RH | 6 | KHD-F5L912 | 4.7 | 1976.09-1990.06 |
| O&K | RH | 6 | KHD-F6L912 | 5.7 | 1976.09-1990.06 |
| O&K | RH | 9 | KHD-F6L912 | 5.7 | 1973.01-1990.06 |
| POCLAIN | CRANES | 18.01 | KHD-F6L912 | 5.6 | 1969.01-1979.12 |
| POCLAIN | CRANES | 18.15 | KHD-F6L912 | 5.6 | 1969.01-1979.12 |
| POCLAIN | EXCAVATORS | 60CL | KHD-F4L912 | 3.8 | 1976.03- |
| POCLAIN | EXCAVATORS | 60P | KHD-F4L912 | 3.8 | 1988.03- |
| POCLAIN | EXCAVATORS | 75CL. 75P | KHD-F5L912 | 4.7 | 1975.06- |
| WESERHUETTE | RW | 1600A | KHD-F6L912 | 5.7 | 1973.05-1987.12 |
| WESERHUETTE | RW | 1700K | KHD-F6L912 | 5.7 | 1973.05-1987.12 |
| WESERHUETTE | RW | 2300K | KHD-BF6L913 | 6.1 | 1973.05-1987.12 |
| WESERHUETTE | W | 60 | KHD-F6L912 | 5.7 | 1973.01-1979.12 |
| WESERHUETTE | W | 80 | KHD-F6L912 | 5.7 | 1973.01-1979.12 |
| ZETTELMEYER | KL | 20 | KHD-F6L912 | 5.7 | 1973.02-1977.12 |
Mehr Informationen
| Gewicht (kg) | 14.259000 |
|---|---|
| Zustand | Neu |
| Die Spannung | 24 V |
| Die Leistung | 4.0 kW |
| Zähnezahl | 9 |
| Drehrichtung | Im Uhrzeigersinn |
