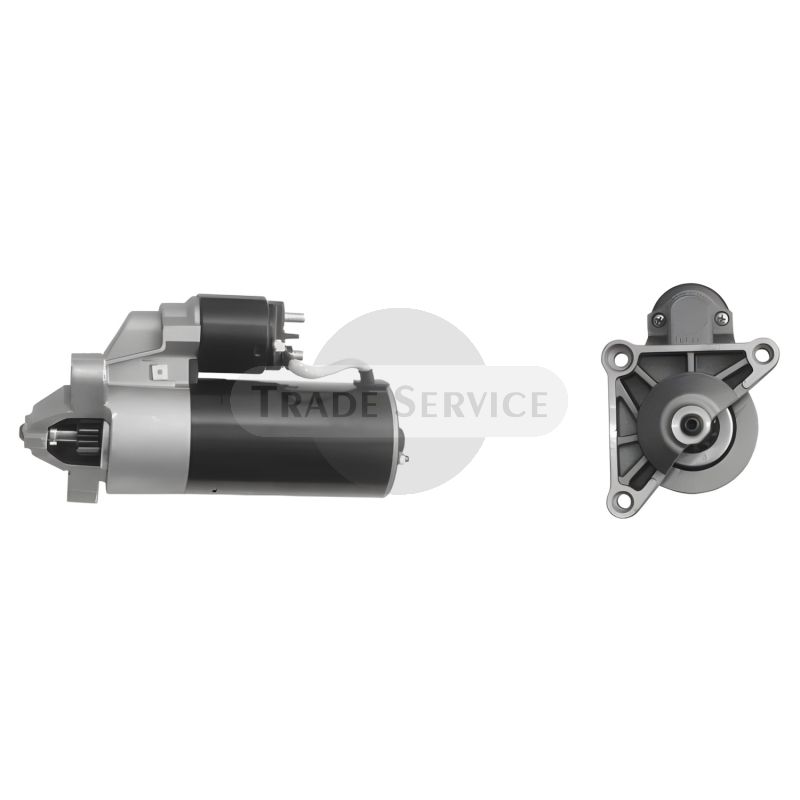

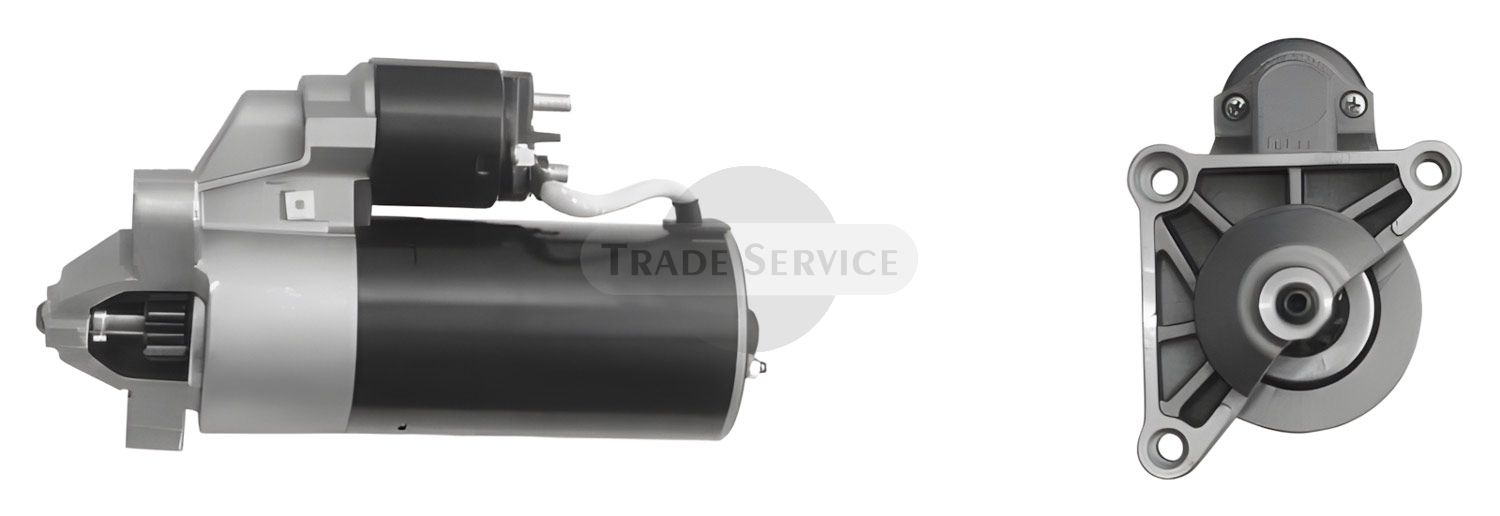

12V 1.7kW z11 (IS0642, MS150)
MAHLE Webkatalog
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Haben Sie Fragen?
Dieses Produkt ist zur Zeit leider nicht auf Lager.
Über den Preis und Erreichbarkeit des Produkts, bitte erkundigen Sie sich bei unseren Mitarbeitern.
Über den Preis und Erreichbarkeit des Produkts, bitte erkundigen Sie sich bei unseren Mitarbeitern.
Nicht auf Lager i Über den Preis und Erreichbarkeit des Produkts, bitte erkundigen Sie sich bei unseren Mitarbeitern.
Bestellschlusszeit:
GLS: 15:00 / UPS: 12:30
11.130.642 AZE2521 MS150 MAHLE (Letrika, Iskra) Anlasser (11130642)
Ähnliche Produkte
Wir haben andere Produkte gefunden, die Ihnen gefallen könnten!
-
9141404 Magneton Anlasser12V 1.0kW z11 -
35258730 Prestolite Anlasser12V 1.5kW z9
Referenznummern
| BOSCH | 0001109010, 0001110017, 0001110056, 0001314034, 0986013240, 0986013241 |
|---|---|
| CITROEN | 91040098, 91514125, 91514312, 95607234 |
| HELLA | 8EA726090001, 8EA726121001, 8EA726218001, 8EA737751001, CS1177, CS342, CS373, CS594 |
| LESTER | 18501, 18967, 30473, 30475, 30476, 33015 |
| LUCAS | LRS00475, LRS00476 |
| MAGNETI MARELLI | 943251127, 943251144, MSR377 |
| MAHLE (Letrika, Iskra) | IS0642, 11130642, AZE2521, MS150 |
| MITSUBISHI | M1T50171, M1T50172 |
| PARIS-RHONE | 182604, 184643, 185625, 185994, D7R2, D7R8, D9R84 |
| PEUGEOT | 555836, 555838, 580235, 580236, 580250, 580292, 91040098 |
| TALBOT | A04009880 |
| VALEO | 432561, 433305, 436068, 438069, 455514, ND053, ND123, ND138, VS140, VS283, VS285 |
Kompatibilität
| Hersteller | Modell | Typ | Motor | Leistung | Baujahr |
|---|---|---|---|---|---|
| CITROEN | BERLINGO | 1.8D | A9A | 1.8 | 1996.07-2002.11 |
| CITROEN | BERLINGO | 1.9D | DJY.D9B | 1.9 | 1996.07-2003.11 |
| CITROEN | BERLINGO | 2.0HDI | RHY | 2.0 | 1999.12-2002.11 |
| CITROEN | BX | 17Diesel | 161A | 1.8 | 1985.07-1994.12 |
| CITROEN | BX | 17DieselTurbo | AJZ.A8A | 1.8 | 1988.02-1994.12 |
| CITROEN | BX | 19Diesel | 162 | 1.9 | 1983.09-1987.12 |
| CITROEN | BX | 19Diesel | DJZ.D9B | 1.9 | 1987.03-1994.12 |
| CITROEN | C15 | E 1.0 | C1A | 1.0 | 1988.07-1997.12 |
| CITROEN | C25 | 1.9D | D9B | 1.9 | 1987.07- |
| CITROEN | C25 | 2.5D Turbo | CRD93LS | 2.5 | 1987.08- |
| CITROEN | EVASION | 1.8i | LFW | 1.8 | 1996.09-2002.07 |
| CITROEN | EVASION | 1.9D Turbo | DHX.D8B | 1.9 | 1994.10-2002.07 |
| CITROEN | EVASION | 2.0HDI | RHZ | 2.0 | 1999.01-2002.07 |
| CITROEN | EVASION | 2.0i | RFU | 2.0 | 1994.06-2002.07 |
| CITROEN | EVASION | 2.0i Turbo | RGX | 2.0 | 1994.06-1997.02 |
| CITROEN | EVASION | 2.1D Turbo | P8C | 2.1 | 1996.04-2002.07 |
| CITROEN | JUMPER | 1.9D | D9B; 51kW | 1.9 | 1994.02-2002.02 |
| CITROEN | JUMPER | 1.9D Turbo | DHX;D8C; 66kW | 1.9 | 1994.02-2002.02 |
| CITROEN | JUMPY | 1.9 D | D9B (XUD9A/U); 51kW | 1.9 | 1995.10-1998.08 |
| CITROEN | JUMPY | 1.9DTurbo | DHX;D8B | 1.9 | 1995.10- |
| CITROEN | JUMPY | 2.0HDI | RHX; 69kW | 2.0 | 1999.10-2006.10 |
| CITROEN | VISA | 17D | 161A | 1.7 | 1984.04-1991.03 |
| CITROEN | XANTIA | 1.9D | DJY.D9B | 1.9 | 1993.07-1996.12 |
| CITROEN | XANTIA | 1.9D Turbo | DHW | 1.9 | 1996.09-2001.12 |
| CITROEN | XANTIA | 1.9D Turbo | DHW | 1.9 | 1997.12-2001.12 |
| CITROEN | XANTIA | 1.9D Turbo | DHX.D8B | 1.9 | 1993.07-1998.01 |
| CITROEN | XANTIA | 1.9D Turbo | PSA.DHX | 1.9 | 1997.12-2001.12 |
| CITROEN | XANTIA | 1.9D Turbo Break | DHW.PSA.DHX | 1.9 | 1997.12-2001.12 |
| CITROEN | XANTIA | 1.9D Turbo Break | DHX.D8B | 1.9 | 1995.09-1998.01 |
| CITROEN | XANTIA | 2.0HDI | PSA.HZ | 2.0 | 1998.10-2001.12 |
| CITROEN | XANTIA | 2.0HDI Break | PSA.RHZ | 2.0 | 1998.10-2001.12 |
| CITROEN | XANTIA | 2.1D Turbo | P8C | 2.1 | 1995.05-2001.12 |
| CITROEN | XANTIA | 2.1D Turbo | PSA.P8C | 2.1 | 1995.05-2001.12 |
| CITROEN | XANTIA | 2.1D Turbo Break | P8C.PSA | 2.1 | 1996.06-2001.12 |
| CITROEN | XM | 2.1D | PJZ.P9A | 2.1 | 1989.05-1994.06 |
| CITROEN | XM | 2.1D | PJZ.P9A | 2.1 | 1994.07-1996.12 |
| CITROEN | XM | 2.1D Turbo | P8A | 2.1 | 1989.05-1994.06 |
| CITROEN | XM | 2.1D Turbo | P8C | 2.1 | 1994.07-2000.10 |
| CITROEN | XM | 2.1D Turbo | PHZ.P8B | 2.1 | 1989.05-1994.06 |
| CITROEN | XM | 2.1D Turbo | PHZ.P8B | 2.1 | 1994.07-2000.10 |
| CITROEN | XSARA | 1.8D | A9A.161A | 1.8 | 1998.07-2000.08 |
| CITROEN | XSARA | 1.8D Break | A9A.161A | 1.8 | 1998.04-2000.08 |
| CITROEN | XSARA | 1.9D | DJY | 1.9 | 1997.07-2000.08 |
| CITROEN | XSARA | 1.9D | WJZ | 1.9 | 1998.04-2000.08 |
| CITROEN | XSARA | 1.9D Break | DJY | 1.9 | 1998.04-2005.08 |
| CITROEN | XSARA | 1.9D Turbo | DHW;DHY;D8A | 1.9 | 1997.07-2000.08 |
| CITROEN | XSARA | 1.9D Turbo Break | DHY | 1.9 | 1998.04-2000.08 |
| CITROEN | XSARA | 2.0 HDI | RHY. RHZ | 2.0 | 2000.09-2001.06 |
| CITROEN | XSARA | 2.0HDi | RHY | 2.0 | 1999.02-2000.08 |
| CITROEN | ZX | 1.8 Diesel | XUD7 | 1.8 | 1991.03-1997.10 |
| CITROEN | ZX | 1.9 Diesel | XUD9A/D9B | 1.9 | 1991.03-1997.10 |
| CITROEN | ZX | 1.9 Turbo Diesel | XUD9TE | 1.9 | 1991.03-1997.10 |
| FIAT | SCUDO | 1.9D | D9B | 1.9 | 1995.10-2000.05 |
| FIAT | SCUDO | 1.9D | WJZ | 1.9 | 1998.06-2004.05 |
| FIAT | SCUDO | 1.9TD | D8B | 1.9 | 1995.10-2006.04 |
| FIAT | SCUDO | 1.9TD | DHX | 1.9 | 1997.03-2006.04 |
| FIAT | SCUDO | 2.0JTD | RHX.RHZ | 2.0 | 1999.10-2004.05 |
| FIAT | ULYSSE | 1.9TD | D8B.DHX | 1.9 | 1995.05-1999.12 |
| LADA (VAZ) | NIVA | 1.9D | Peugeot XUD9A | 1.9 | - |
| LANCIA | Z | 2.0 JTD | RHZ EDC-BOSCH | 2.0 | 1999.06-2000.10 |
| LANCIA | Z | 2.1TD | P8C EDC-Bosch | 2.1 | 1996.05-1999.06 |
| LANCIA | ZETA | 2.0JDT | RHZ EDC | 1.7 | 1999.06-2002.06 |
| LANCIA | ZETA | 2.1TD | P8CE EDC | 2.1 | 1996.05-1999.06 |
| PEUGEOT | 205 | 1.8 Diesel | XUD7 | 1.8 | 1983.10-1989.12 |
| PEUGEOT | 205 | 1.8 Diesel Pick up | XUD7 | 1.8 | 1985.05-1998.09 |
| PEUGEOT | 205 | 1.8 Diesel Turbo | XUD7T | 1.8 | 1990.01-1998.09 |
| PEUGEOT | 205 | 1.9 Diesel | XUD9 | 1.9 | 1986.10-1998.09 |
| PEUGEOT | 206 | 1.9D | WJZ | 1.9 | 1998.06- |
| PEUGEOT | 206 | 2.0HDi | RHY(DW10TD); 66kW | 2.0 | 1999.04-2002.06 |
| PEUGEOT | 305 | 1.7 Diesel | XUD7 | 1.7 | 1982.10-1988.06 |
| PEUGEOT | 305 | 1.9 Diesel | XUD9 | 1.9 | 1982.10-1990.07 |
| PEUGEOT | 306 | 1.8 | A9A.161A.XUD7 | 1.8 | 1993.05-1997.04 |
| PEUGEOT | 306 | 1.9 | D8B.WJZ.XUD9.DW8 | 1.9 | 1998.09-2003.10 |
| PEUGEOT | 306 | 1.9 | DJY.D9B.XUD9Y.XUD9A | 1.9 | 1994.07-1997.04 |
| PEUGEOT | 306 | 1.9 | DJZ.XUD9Y | 1.9 | 1993.05-1994.06 |
| PEUGEOT | 306 | 1.9D Break | DYJ.D9B.XUD9; 47kW | 1.9 | 1994.05-2002.03 |
| PEUGEOT | 306 | 1.9D Break | WJZ.WJY.DW8.DW8B | 1.9 | 1998.09-2002.03 |
| PEUGEOT | 306 | 1.9D Turbo | DHW.DHY.XUD9BSD.XUD9TE | 1.9 | 1997.05-2003.10 |
| PEUGEOT | 306 | 1.9D Turbo | DHY.D8A.XUD9TE | 1.9 | 1993.05-1997.04 |
| PEUGEOT | 306 | 1.9D TurboBreak | DHY.DHV.XUD9BSD.XUD9TE | 1.9 | 1997.05-2002.03 |
| PEUGEOT | 306 | 2.0HDI | RHY.DW10TD | 2.0 | 1999.06-2003.10 |
| PEUGEOT | 306 | 2.0HDI Break | RHY.DW10TD | 2.0 | 1999.06-2002.03 |
| PEUGEOT | 309 | 1.7 Diesel | XUD7 | 1.7 | 1986.06-1993.12 |
| PEUGEOT | 309 | 1.7 Diesel | XUD7TE | 1.7 | 1989.11-1993.12 |
| PEUGEOT | 309 | 1.9 Diesel | XUD9 | 1.9 | 1986.06-1993.12 |
| PEUGEOT | 309 | 1.9 Diesel | XUD9Y | 1.9 | 1986.06-1993.12 |
| PEUGEOT | 405 | 1.8 Diesel | XUD7 | 1.8 | 1990.10-1992.12 |
| PEUGEOT | 405 | 1.8 Diesel Turbo | XUD7EY | 1.8 | 1990.10-1992.12 |
| PEUGEOT | 405 | 1.8 Diesel Turbo | XUD7TE | 1.8 | 1988.03-1992.12 |
| PEUGEOT | 405 | 1.9 Diesel | XUD9A | 1.9 | 1988.03-1992.12 |
| PEUGEOT | 405 | 1.9 Diesel | XUD9Y | 1.9 | 1988.03-1992.09 |
| PEUGEOT | 405 | 1.9 Diesel Turbo | XUD9TE.XUD9TE Kat. | 1.9 | 1992.06-1997.04 |
| PEUGEOT | 406 | 1.9D Tubro | D8B.XUD9TE.DHX.SUD9TE | 1.9 | 1995.12-1999.01 |
| PEUGEOT | 406 | 1.9D Tubro | DHW.XUD9SD | 1.9 | 1996.06-1999.03 |
| PEUGEOT | 406 | 1.9D Turbo Break | D8B.XUD9TE.DHW.XUD9SD | 1.9 | 1996.10-1999.03 |
| PEUGEOT | 406 | 2.0HDI | RHZ.RHY | 2.0 | 1999.04-2004.06 |
| PEUGEOT | 605 | 2.1 Diesel | XUD11A | 2.1 | 1989.06-1994.06 |
| PEUGEOT | 605 | 2.1 Diesel Turbo | XUD11ATE | 2.1 | 1989.06-1999.05 |
| PEUGEOT | 607 | 2.0HDI | RHZ.DW10ATED | 2.2 | 2000.03-2004.11 |
| PEUGEOT | 607 | 2.2HDI | 4HX.DW12TED4 | 2.2 | 2000.03-2004.11 |
| PEUGEOT | 806 | 1.9D Turbo | DHY.D8B.XUD9TE | 1.9 | 1994.12-2002.08 |
| PEUGEOT | 806 | 2.0HDI | RHZ.DW10ATED | 2.0 | 1999.08-2002.08 |
| PEUGEOT | 806 | 2.1D Turbo | P8C.XUD11BTE | 2.1 | 1996.04-2000.08 |
| PEUGEOT | BOXER | 1.9D | XUD9; 66kW | 1.9 | 1994.02-2002.05 |
| PEUGEOT | BOXER | 1.9DTurbo | DHY(XUD9TE); 66kW | 1.9 | 1994.02-2002.05 |
| PEUGEOT | EXPERT | 1.9D | D9B.XUD9TE; 68kW | 1.9 | 1995.09-2000.10 |
| PEUGEOT | EXPERT | 1.9D | WJZ.DW8 | 1.9 | 1998.06- |
| PEUGEOT | EXPERT | 1.9D Turbo | DHX.XUD9TE.D8B.XUD9TE | 1.9 | 1995.09- |
| PEUGEOT | J5 | 1.9D | XUD9A | 1.9 | 1987.11-1993.12 |
| PEUGEOT | PARTNER | 1.8D | XUD7 | 1.8 | 1996.09-2002.08 |
| PEUGEOT | PARTNER | 1.9D | XUD9/XUD9A/L | 1.9 | 1996.09-2002.08 |
| PEUGEOT | RANCH | 1.9D | D9B | 1.9 | 1997.07-1998.10 |
| TALBOT | EXPRESS | 1.9D | XUD9A | 1.9 | 1987.11-1993.12 |
| TALBOT | HORIZON | 1.9 Diesel | XUD9 | 1.9 | 1982.07-1986.06 |
| TALBOT (E) | HORIZON | 1.9 Diesel | XUD9 | 1.9 | 1982.09-1986.06 |
| TALBOT (E) | SOLARA | 1.9 Diesel | XUD9 | 1.9 | 1984.11-1986.07 |
| VAZ | 21215 | 1.9 | Peugeot XUD9A | 1.9 | - |
| VAZ | 2131-50 | 1.9 | Peugeot XUD9A | 1.9 | - |
Mehr Informationen
| Gewicht (kg) | 4.859000 |
|---|---|
| Zustand | Neu |
| Die Spannung | 12 V |
| Die Leistung | 1.7 kW |
| Zähnezahl | 11 |
| Drehrichtung | Im Uhrzeigersinn |
| Bemerkungen | Off set drive end bracket, With reduction gear |
Ersatzteile
-
-
-
-
-
-
-
-
-
-
-
-
