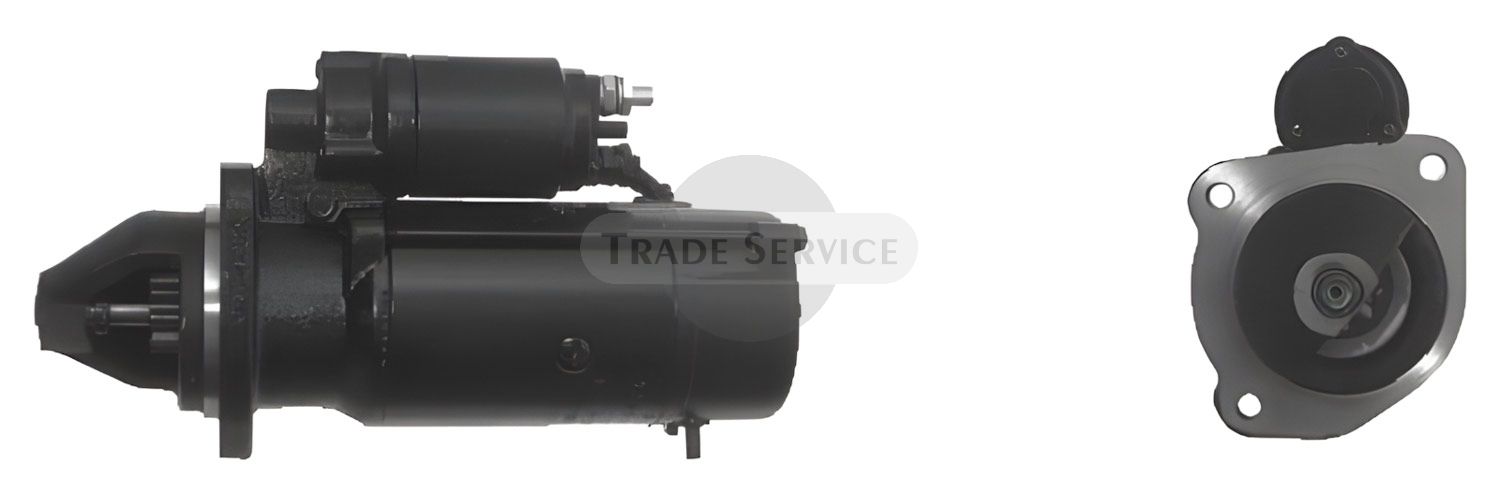

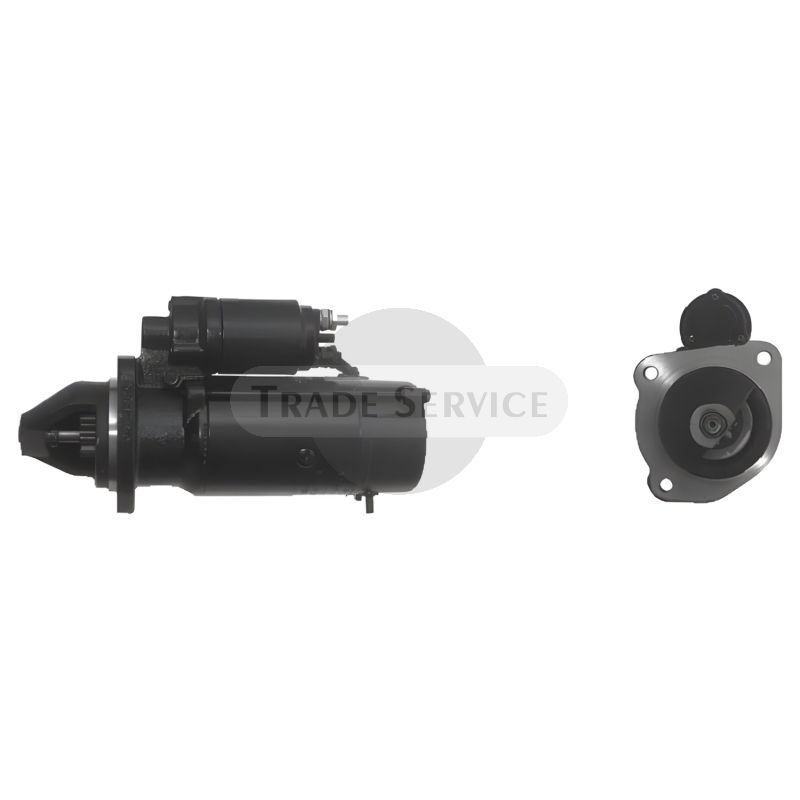

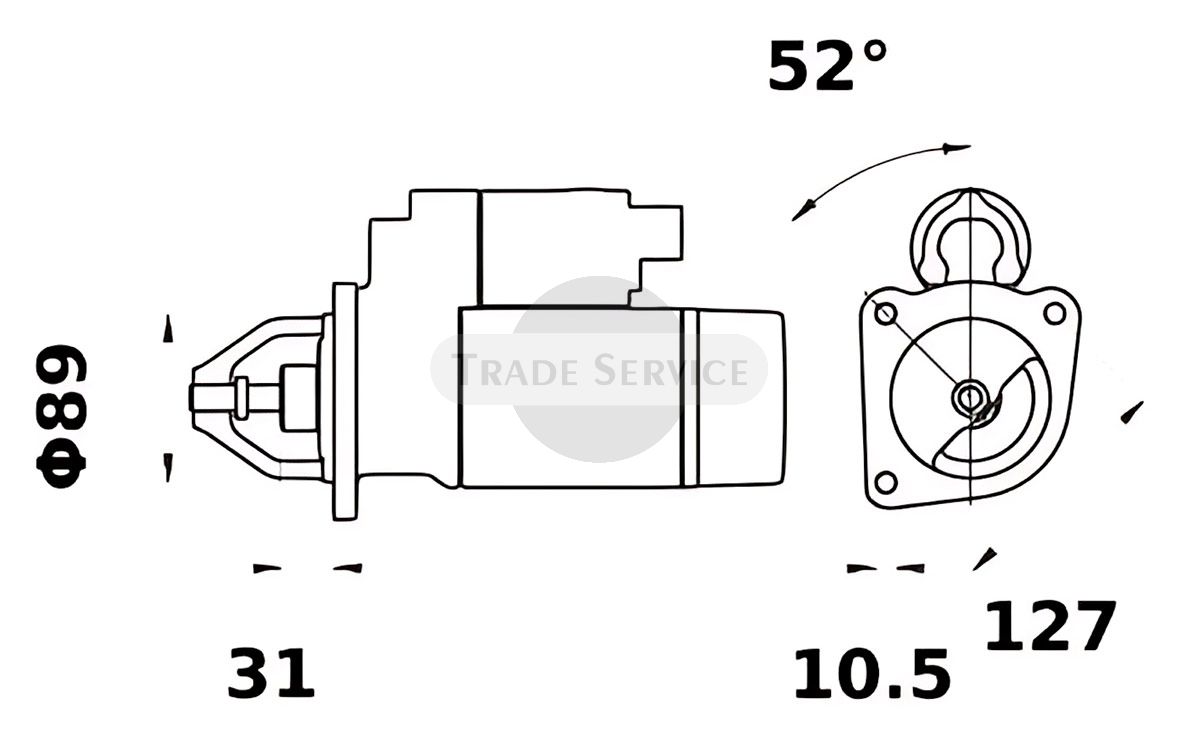

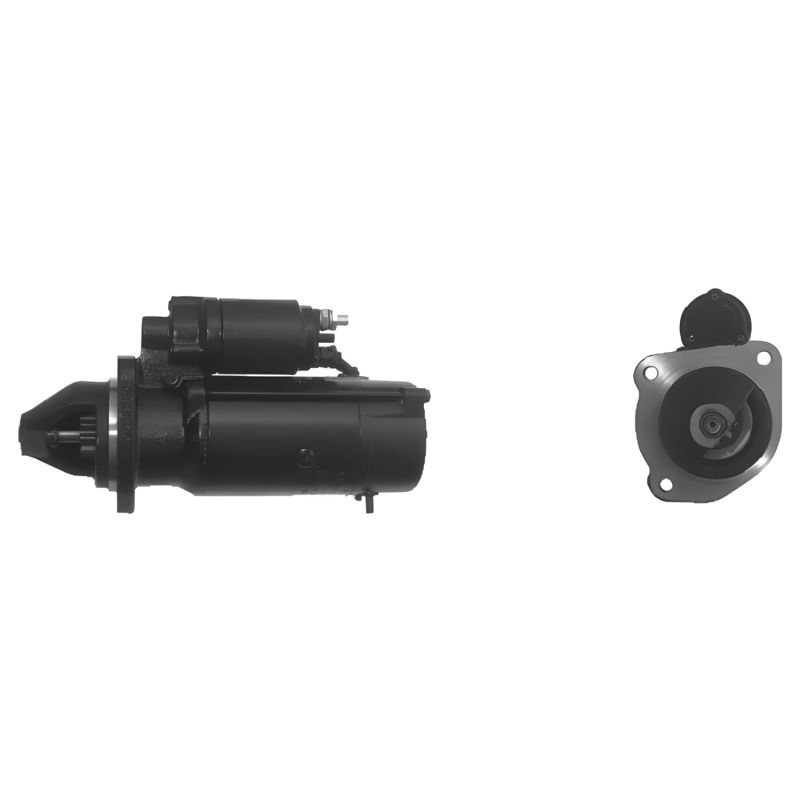

24V 4.0kW z9 (IS0842, MS232)
MAHLE Webkatalog
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Haben Sie Fragen?
514 € 405 €
Auf Lager i Ab Lager in unserem Shop erhältlich. Aktualisierungshäufigkeit: 5 Minuten
Versandkostenrechner
Bestellschlusszeit:
GLS: 15:00 / UPS: 12:30
11.130.842 AZF4515 MS232 MAHLE (Letrika, Iskra) Anlasser (11130842)
Ähnliche Produkte
Wir haben andere Produkte gefunden, die Ihnen gefallen könnten!
-
11.130.673 AZJ3222 MS613 MAHLE (Letrika, Iskra) Anlasser (11130673)24V 4.0kW z9 (IS0151, MS613)
Referenznummern
| AHLMANN (MECALAC) | 2300088A, 4188195A |
|---|---|
| ATLAS COPCO | 2913163700 |
| BOMAG | 05710903 |
| BOSCH (USA) | SR925X |
| BOSCH | 0001231005, 0001263051, 0001263052, 0001364100, 0001364301, 0001368088, 0986011270, 0986012700 |
| CASE | 1480963 |
| DAF | 1516768R |
| DELCO REMY | DRS2700 |
| DEUTZ AG (KHD) | 01163626, 01173820, 01179586, 01180804, 01180999 |
| FAUN | 4159015 |
| FUCHS | 5411656432 |
| HELLA | 8EA726149001, CS501 |
| IVECO | 42522653 |
| LESTER | 17045, 18958 |
| LIEBHERR | 6200662, 6200827, 7026025A |
| LUCAS | LRS00960, LRS01936 |
| MAGNETI MARELLI | 063522310050, 943252215, MSR705 |
| MAHLE (Letrika, Iskra) | IS0842, 11130842, AZF4515, MS232, 11130673, AZJ3222, MS613, 11130151, AZJ3522 |
| SPAREX | 36125 |
| VOLVO | 22175635 |
| WAI | 508435 |
Kompatibilität
| Hersteller | Modell | Typ | Motor | Leistung | Baujahr |
|---|---|---|---|---|---|
| ABG | SAW | 186 | KHD-BF6L913 | 6.1 | 1976.05-1990.12 |
| ABG | SF | 213 | KHD-BF6L913 | 6.1 | 1976.05-1990.12 |
| ABG | TITAN | 211 | KHD-F3L912 | 2.8 | 1968.02-1975.12 |
| ABG | TITAN | 350S | KHD-F4L912 | 3.8 | 1971.03-1991.12 |
| ABG | TITAN | 360 | KHD-F4L912 | 3.8 | 1972.05-1990.12 |
| ABG | TITAN | 410S | KHD-BF6L912 | 5.7 | 1972.03-1990.12 |
| AHLMANN (MECALAC) | A | 69 | KHD-F4L912 | 3.8 | 1968.06-1974.12 |
| AHLMANN (MECALAC) | AS | 150 | BF4M2012C | - | |
| AHLMANN (MECALAC) | FRONT LOADERS | AF10 | KHD-F4L912 | 3.8 | 1968.06-1980.12 |
| AHLMANN (MECALAC) | SYSTEM 180 (SWING) | AS210 | BF6M2012C | 6.0 | - |
| AHLMANN (MECALAC) | SYSTEM 180 (SWING) | AS7 | KHD-F4L912 | 3.8 | 1968.06-1979.12 |
| AHLMANN (MECALAC) | SYSTEM 180 (SWING) | AZ150e | TCD2012 L04-2V | 4.0 | - |
| AMMANN | DRUM VIBRATORY ROLLERS | ARS 150 | Deutz TCD4.1 L4;Tier 4f; 115kW | 4.1 | - |
| AMMANN | DRUM VIBRATORY ROLLERS | ARS 170 | Deutz TCD4.1 L4;Tier 4f; 115kW | 4.1 | - |
| AMMANN | DRUM VIBRATORY ROLLERS | ARS 200 | Deutz TCD6.1 L6;Tier 4f; 160kW | 6.1 | - |
| AMMANN | SOIL COPACTORS | ARS 200 | TCD 6.1 L6; 160kW;Teir 3 | 6.1 | - |
| ATLAS | CRAWLER EXCAVATORS | 160LC | TCD 4.1 L4; 95kW. Tier 4 | 4.0 | - |
| ATLAS | CRAWLER EXCAVATORS | 160LC | TCD2012 L04 2V; 105HP; Tier 3 | 4.0 | - |
| ATLAS | MATERIAL HANDLERS | 160MH | TCD 4.1 L4; 90kW. Tier 4 | 4.0 | - |
| ATLAS | MATERIAL HANDLERS | 180MH | TCD2012 L04 2V; 116HP | 4.0 | - |
| ATLAS | MATERIAL HANDLERS | 200MH | TCD2012 L04 2V; 116HP | 4.0 | - |
| ATLAS | RAIL-ROAD EXCAVATORS | 1404ZW | BF4M 2012; 102HP | 4.0 | - |
| ATLAS | RAIL-ROAD EXCAVATORS | 1404ZW | TCD 4.1 L4; 95kW. Tier 4 | 4.1 | - |
| ATLAS | RAIL-ROAD EXCAVATORS | 1600ZW | BF4M 2012; 102HP | 4.0 | - |
| ATLAS | SHORT TALL CRAWLERS | 175LC SR | TCD2012 L04 2V; 102HP | 4.0 | - |
| ATLAS | SHORT TALL CRAWLERS | 185LC SR | TCD 4.1 L6; 105kW. Tier 4 | 4.1 | - |
| ATLAS | SHORT TALL CRAWLERS | 215LC SR | TCD2012 L04 2V; 129HP | 4.0 | - |
| ATLAS | WHEEL EXCAVATORS | 140W | TCD2012 L04 2V; 105HP; Tier 3 | 4.0 | - |
| ATLAS | WHEEL EXCAVATORS | 150W | TCD2012 L04 2V; 116HP; Tier 3 | 4.0 | - |
| ATLAS | WHEEL EXCAVATORS | 180W SR | TCD2012 L04 2V; 129HP; Tier 3 | 4.0 | - |
| ATLAS COPCO | PORTABLE AIR COMPRESORS | XAHS | Deutz BF4M1013 | - | |
| BOMAG | COLD PLANERS | BM 500/15 | TCD2012; 92kW; Tier 3 | 4.0 | - |
| BOMAG | COLD PLANERS | BM 500/15 | TCD4.1 L4; 105kW. Tier 4 | 4.0 | - |
| BOMAG | COLD PLANERS | BM 600/15 | TCD2012; 92kW; Tier 3 | 4.0 | - |
| BOMAG | COMPACTORS | BC 462 EB | TCD2013 L06 2V; 190kW. Tier 3 | 7.2 | - |
| BOMAG | COMPACTORS | BC 463 RB-3 | TCD2013 L06 4V; 227kW. Tier 3 | 7.2 | - |
| DEUTZ AG (KHD) | BF3L914 | 3 cyl | 3.2 | - | |
| DEUTZ AG (KHD) | BF4L914 | 4 cyl | 4.3 | - | |
| DEUTZ AG (KHD) | BF4M1012 | 4-cyl | 2.1 | - | |
| DEUTZ AG (KHD) | BF4M1012 | 4-cyl; 65kW | 3.2 | - | |
| DEUTZ AG (KHD) | BF4M1012C | 4-cyl; 82kW | 3.2 | - | |
| DEUTZ AG (KHD) | BF4M1012E. EC | 4-cyl; 65kW | 2.1 | - | |
| DEUTZ AG (KHD) | BF4M1013 | - | - | ||
| DEUTZ AG (KHD) | BF6L913 | - | 6.1 | 1973.01-1975.12 | |
| DEUTZ AG (KHD) | BF6L914.C | 6 cyl | 6.5 | - | |
| DEUTZ AG (KHD) | BF6M1012 | 6-cyl; | 4.8 | - | |
| DEUTZ AG (KHD) | BF6M1012C | 6-cyl. | 4.8 | - | |
| DEUTZ AG (KHD) | BF6M1013 | - | 7.2 | - | |
| DEUTZ AG (KHD) | F3L914 | 3 cyl | 3.2 | - | |
| DEUTZ AG (KHD) | F4L914 | 4 cyl | 4.3 | - | |
| DEUTZ AG (KHD) | F5L914 | 5 cyl | 5.4 | - | |
| DEUTZ AG (KHD) | F6L912 | F | 5.7 | 1992.06- | |
| DEUTZ AG (KHD) | F6L913 | - | - | ||
| DEUTZ AG (KHD) | F6L913 | - | 6.1 | 1992.06- | |
| DEUTZ AG (KHD) | F6L913 | H | 6.1 | 1992.06- | |
| DEUTZ AG (KHD) | F6L914 | 6 cyl | 6.5 | - | |
| DEUTZ AG (KHD) | FM1012 | - | - | ||
| DEUTZ AG (KHD) | FM1013 | - | - | ||
| DEUTZ AG (KHD) | TCD2013 L6 4V | 6-Cyl | 7.2 | - | |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M130 | D11FL | F6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M130 | D12/15AK | F6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M130 | D12/15K | F6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M130 | D14FL | F6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M130 | D16FL | F6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M130 | D16FLL | F6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M130 | D16L | F6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M130 | D7/8/9FA | F6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M130 | D9AL | F6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M130 | D9FL | F6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M160 | D11FL | BF6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M160 | D11FS | BF6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M160 | D12/15AK | BF6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M160 | D12/15K | BF6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M160 | D15FAK | BF6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M160 | D16FL | BF6L913 | 6.1 | 1973.09-1974.12 |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | M160 | D16L | BF6L913 | 6.1 | 1973.09-1974.12 |
| DYNAPAC (ATLAS COPCO GROUP) | SINGLE DRUM VIBR. ROLLERS | CA3600D | TCD2012 L06; 128kW. Tier 3 | 6.1 | - |
| DYNAPAC (ATLAS COPCO GROUP) | SINGLE DRUM VIBR. ROLLERS | CA3600PD | TCD2012 L06; 128kW. Tier 3 | 6.1 | - |
| FUCHS | 118 | M | KHD-F6L912 | 3.8 | 1975.06-1986.12 |
| FUCHS | LOADER | MHL331 | BF6M2012C | - | |
| IRMER U. ELZE | S1051 | SLS | KHD-F6L912 | 5.6 | 1977.04-1986.09 |
| IRMER U. ELZE | S1131 | 7SL | KHD-F6L912 | 5.6 | 1986.10- |
| IVECO | 110 | 17AW | KHD-BF6L913 | 6.1 | 1986.07-1991.12 |
| IVECO | 120 | 16ANW | KHD-BF6L913 | 6.1 | 1983.01-1989.11 |
| IVECO | 120 | 17ANW | KHD-BF6L913/U | 6.1 | 1989.07-1996.07 |
| IVECO | 150 | 16AN | KHD-BF6L913 | 6.1 | 1983.01-1991.12 |
| IVECO | 160 | 16AR | KHD-BF6L913 | 6.1 | 1983.01-1984.12 |
| IVECO | 160 | 17AN | KHD-BF6L913/U | 6.1 | 1989.07- |
| IVECO | 160 | R81 | KHD-BF6L913 | 6.1 | 1983.06-1986.12 |
| KAESER | PORTABLE COMPRESSORS | MOBILAIR M125 | Deutz AG; TCD 4.1 L4. 105kW | 4.1 | - |
| KALMAR | FORKLIFT | DCE 140-6 | Volvo TAD 720VE | 2004.01- | |
| LIEBHERR | CRAWLER EXCAVATORS | R981 | KHD-BF6L913 | 6.1 | 1974.04-1990.06 |
| LIEBHERR | WHEEL EXCAVATORS | A903 | F6L912 | 1992.01-1996.12 | |
| MAGIRUS-DEUTZ | M130 | D12/15K.AK | F6L913 | 6.1 | 1975.01-1982.12 |
| MAGIRUS-DEUTZ | M130 | D14/16FL | F6L913 | 6.1 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M130 | D16FLL | F6L913 | 6.1 | 1975.01-1976.05 |
| MAGIRUS-DEUTZ | M130 | D9/11FL | F6L913 | 6.1 | 1975.01-1976.05 |
| MAGIRUS-DEUTZ | M160 | D11/16FL | BF6L913 | 6.1 | 1975.01-1982.10 |
| MAGIRUS-DEUTZ | M160 | D11FS | BF6L913 | 6.1 | 1975.01-1976.05 |
| MAGIRUS-DEUTZ | M160 | D12/15K.AK | BF6L913 | 6.1 | 1975.01-1982.12 |
| MAGIRUS-DEUTZ | M160 | D16FLL | BF6L913 | 6.1 | 1975.01-1976.05 |
| MECALAC | SWING LOADERS | AS150e | TCD2012-L04 2V; 4-cyl; 100kW | 4.0 | 2010.01- |
| MST (SANKO) | CRAWLER EXCAVATORS | M220 LC | Deutz L04 2V. 116kW; Tier 3 | 4.8 | - |
| NORMET | CHARMEC | 6605 B | TCD2012 L4; 96kW; Tier 3 | 4.0 | - |
| NORMET | CHARMEC | LC 605 D | TCD2012 L06; 155kW; Tier 3 | 4.0 | - |
| NORMET | CHARMEC | MF 605 D | TCD 2013 L4; 120kW; Tier 3 | 4.8 | - |
| NORMET | HIMEC | MF 125 | TCD 2013 L4; 120kW; Tier 3 | 4.8 | - |
| NORMET | HIMEC | SF 605 | TCD2012 L4; 96kW; Tier 3 | 4.0 | - |
| NORMET | MULTIMEC | MF 100 | TCD 2013 L4; 120kW; Tier 3 | 4.8 | - |
| NORMET | MULTIMEC | SF 060 | TCD2012 L4; 96kW; Tier 3 | 4.0 | - |
| NORMET | SPRAYMEC | 1050 WPC | TCD2013 L4 2V | 7.2 | - |
| NORMET | SPRAYMEC | 6050 WP | TCD2012 L4. Tier 3 | 4.0 | - |
| NORMET | SPRAYMEC | 8100 VC | TCD2011 L4; Tier 3; 75kW | 3.6 | - |
| NORMET | SPRAYMEC | LF 050 DC | TCD 2013 L4; 120kW; Tier 3 | 4.8 | - |
| NORMET | UTILIFT | MF 540 | TCD2013; 120kW; Tier 3 | 4.8 | - |
| NORMET | UTILIFT | SF 330 | TCD2012 L4; 96kW; Tier 3 | 4.0 | - |
| NORMET | UTIMEC | LF 600 Agitator | TCD2012 L6; Tier 3; 155kW | 6.1 | - |
| NORMET | UTIMEC | SF 300 Transmixer | TCD2012 L4; 96kW; Tier 3 | 4.0 | - |
| NORMET | VARIOMEC | LF 090 D | TCD2012 L6; Tier 3; 155kW | 6.1 | - |
| O&K | L | 20 | KHD-BF6L913 | 6.1 | 1974.01-1984.12 |
| O&K | L | 30 | KHD-F6L913C | 6.1 | 1980.04-1986.12 |
| POCLAIN | CRANES | 18.01 | KHD-F6L912 | 5.6 | 1969.01-1979.12 |
| POCLAIN | CRANES | 18.15 | KHD-F6L912 | 5.6 | 1969.01-1979.12 |
| POCLAIN | EXCAVATORS | 60CL | KHD-F4L912 | 3.8 | 1976.03- |
| POCLAIN | EXCAVATORS | 60P | KHD-F4L912 | 3.8 | 1988.03- |
| POCLAIN | EXCAVATORS | 75CL. 75P | KHD-F5L912 | 4.7 | 1975.06- |
| POCLAIN | EXCAVATORS | 90CK | KHD-F6L912 | 5.7 | 1975.12- |
| POCLAIN | EXCAVATORS | 90P | KHD-F6L912 | 5.7 | 1988.03- |
| POCLAIN | EXCAVATORS | LC80 | KHD-F6L912 | 5.6 | 1969.01-1976.06 |
| POCLAIN | EXCAVATORS | LY2P | KHD-F6L912 | 5.6 | 1969.01-1976.04 |
| POCLAIN | EXCAVATORS | LY80 | KHD-F6L912 | 5.6 | 1969.01-1977.01 |
| POCLAIN | EXCAVATORS | MC100 | KHD-F5L912 | 4.7 | 1973.01-1976.01 |
| POCLAIN | EXCAVATORS | MCL84 | KHD-F5L912 | 4.7 | 1973.01-1976.01 |
| POCLAIN | EXCAVATORS | TY2P | KHD-F4L912 | 3.8 | 1979.05-1980.01 |
| POCLAIN | EXCAVATORS | TY45 | KHD-F4L912 | 3.8 | 1979.05-1979.12 |
| SCHAEFFER | SKL | 700 | KHD-F3L912 | 2.8 | 1978.09-1986.12 |
| SENNEBOGEN | D SERIES | 613 M | BF4M2013 | 4.0 | - |
| SENNEBOGEN | D SERIES | 613 M | TCD2012 L04 2V; 4-cyl; 91kW | 4.0 | - |
| SENNEBOGEN | D SERIES | 613 R | TCD2012 L04-2V; 4-cyl; 91kW | 4.0 | - |
| SENNEBOGEN | E SERIES | 673 R | TCD2013 L06 2V; 148kW; Tier 3 | 7.2 | - |
| TITAN | CONCRETE TRANSMIXERS | BYM6 | TCD 2012 L6; 155kW; Tier 3 | 4.8 | - |
| VOLVO (BM) | WHEEL LOADERS | EW140C | D5E EAE3; 4-cyl; 100kW | 4.8 | - |
| VOLVO PENTA | TAD520VE | TAD 520; 6-cyl; 118kW | 4.7 | 2002.01- | |
| VOLVO PENTA | TAD530GE | TAD 530; 4-cyl; 95kW | 4.7 | 2007.01- | |
| VOLVO PENTA | TAD531GE | TAD 531; 4-cyl; 110kW | 4.8 | 2007.01- | |
| VOLVO PENTA | TAD620GE | TAD 620; 6-cyl; 155kW | 5.7 | 2002.01- | |
| VOLVO PENTA | TAD620VE | TAD 620; 6-cyl; 155kW | 5.7 | 2002.01- | |
| VÖGELE | PAVERS ON CRAWLERS | SUPER 1900-2 | TCD2012 L06 2V; 142kW. Tier 3 | - | |
| WIRTGEN | COLD MILLING MACHINES | W 100 | TCD2012 L06-2V; 6-cyl; 155kW | 6.1 | 2010.09- |
| WIRTGEN | COLD MILLING MACHINES | W 100 H | TCD2012 L06-2V; 6-cyl; 155kW | 6.1 | - |
| WIRTGEN | COLD MILLING MACHINES | W 100 R | TCD2012 L06-2V; 155kW; Tier3 | 6.1 | - |
| WIRTGEN | COLD MILLING MACHINES | W 1000 F | TCD2012 L06-2V; 6-cyl; 155kW | 6.1 | 2010.06- |
| WIRTGEN | COLD MILLING MACHINES | W 1200 F | TCD2012 L06-2V; 6-cyl; 155kW | 6.1 | 2010.07- |
| WIRTGEN | COLD MILLING MACHINES | W 1300 F | TCD2012 L06-2V; 6-cyl; 155kW | 6.1 | 2010.07- |
| WIRTGEN | COLD MILLING MACHINES | W 50 DC | TCD2012 L04-2V; 4-cyl; 92kW | 4.0 | 2005.09- |
| WIRTGEN | COLD MILLING MACHINES | W 50 R | TCD2012 L04-2V; 4-cyl; 100kW | 4.0 | - |
| WIRTGEN | COLD MILLING MACHINES | W 60 | TCD2012 L06-2V; 6-cyl; 155kW | 6.1 | 2010.09- |
| WIRTGEN | MOBILE COLD RECYCLING PLANT | KMA 220 | TCD2012L06-2V; 6-cyl; 129kW | 6.1 | - |
| WIRTGEN | SLIPFORM PAVERS | SP 15 | TCD2012 L04-2V; 4-cyl; 92kW | 4.0 | - |
| WIRTGEN | SLIPFORM PAVERS | SP 25 | TCD2012 L06-2V; 6-cyl; 118kW | 6.1 | - |
| WIRTGEN | SLIPFORM PAVERS | SP 500/500 Vario | BF6M2012; 6-cyl; 130kW | 6.1 | - |
| ZOOMLION | ROAD ROLERS | YZC 11 A | BF4M 1013EC; 92kW; Tier 2 | 4.8 | - |
| ZOOMLION | ROAD ROLERS | YZC 13 H | BF4M 1013EC; 102kW; Tier 2 | 4.8 | - |
Mehr Informationen
| Gewicht (kg) | 10.650000 |
|---|---|
| Zustand | Neu |
| Die Spannung | 24 V |
| Die Leistung | 4.0 kW |
| Zähnezahl | 9 |
| Drehrichtung | Im Uhrzeigersinn |
| Bemerkungen | With reduction gear |
Ersatzteile
-
-
-
-
-
-
-
-
-
-
-
-
-
