12V 3.0kW z9 (IS0254, MS354)
MAHLE Webkatalog
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Haben Sie Fragen?
Dieses Produkt ist zur Zeit leider nicht auf Lager.
Über den Preis und Erreichbarkeit des Produkts, bitte erkundigen Sie sich bei unseren Mitarbeitern.
Über den Preis und Erreichbarkeit des Produkts, bitte erkundigen Sie sich bei unseren Mitarbeitern.
Nicht auf Lager i Über den Preis und Erreichbarkeit des Produkts, bitte erkundigen Sie sich bei unseren Mitarbeitern.
Bestellschlusszeit:
GLS: 15:00 / UPS: 12:30

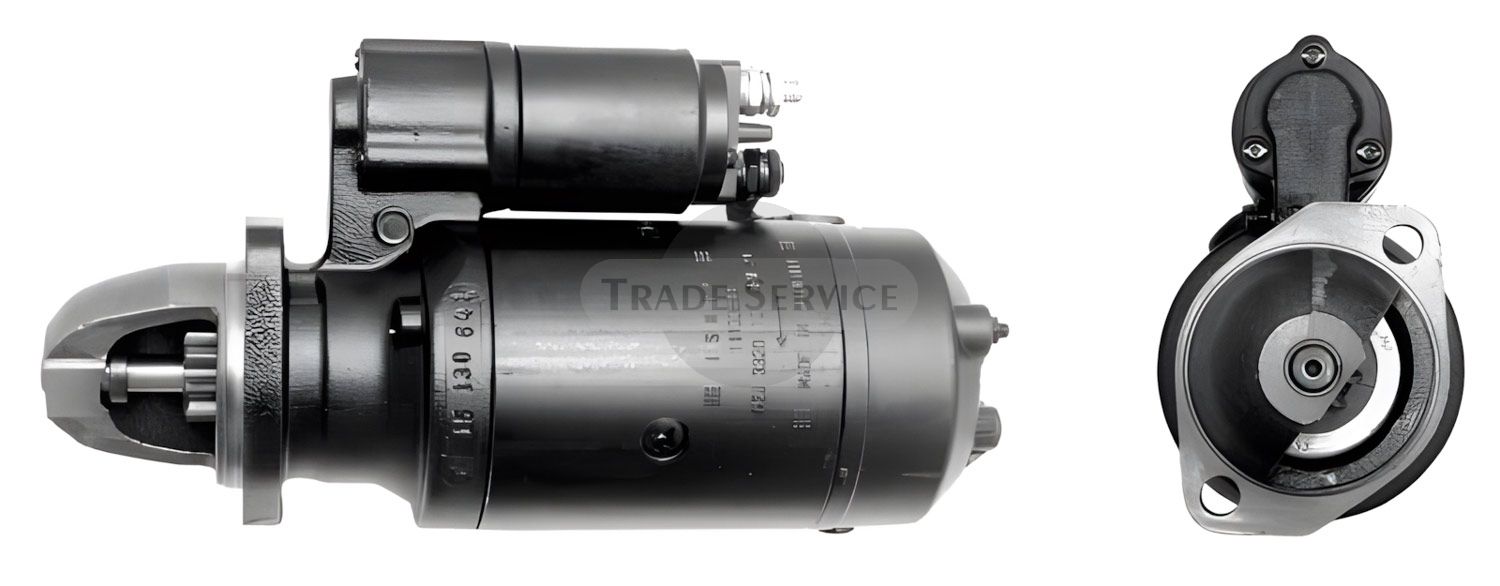

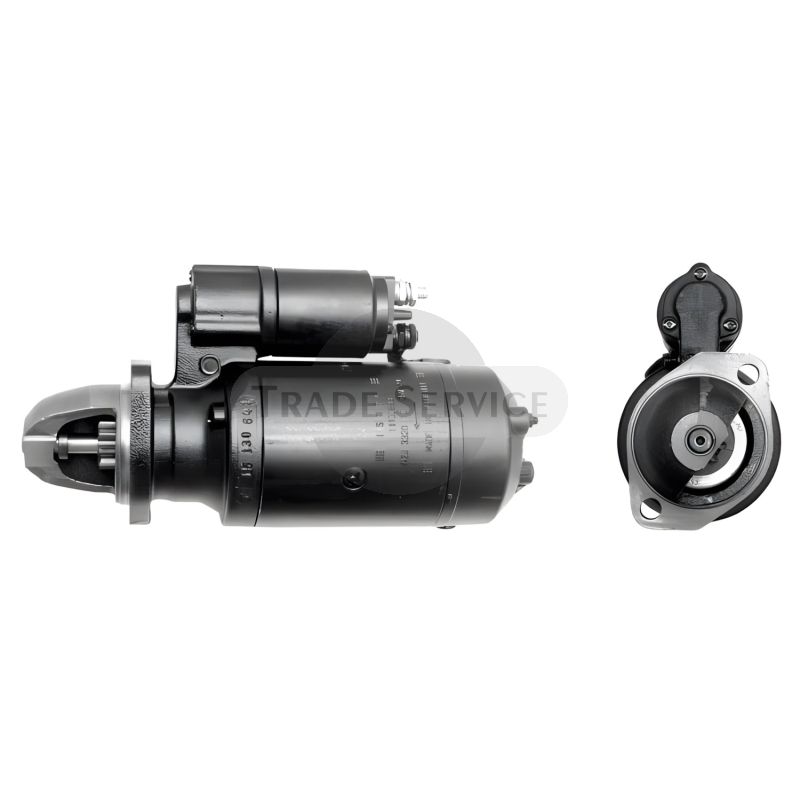

11.130.898 AZJ3320 MS354 MAHLE (Letrika, Iskra) Anlasser (11130898)
Ähnliche Produkte
Wir haben andere Produkte gefunden, die Ihnen gefallen könnten!
-
11.131.829 AZF4220 MS429 MAHLE (Letrika, Iskra) Anlasser (11131829)12V 3.4kW z9 (IS1249, MS429) -
9144820 Magneton Anlasser12V 2.9kW z9
Referenznummern
| AGCO | C000900060040 |
|---|---|
| BOSCH | 0001359038, 0001359083, 0001359113, 0001367005 |
| CLAAS | 6005706618 |
| HELLA | 8EA731762001, CS718 |
| LESTER | 17136 |
| LUCAS | LRS01053 |
| MAGNETI MARELLI | 63216816, MT68R |
| MAHLE (Letrika, Iskra) | IS0254, 11130898, AZJ3320, MS354, 11130254, AZJ3557 |
| SAME (DEUTZ- FAHR GROUP) | 296192300, 296193500, 296193800 |
| SPAREX | 359840 |
Kompatibilität
| Hersteller | Modell | Typ | Motor | Leistung | Baujahr |
|---|---|---|---|---|---|
| AGCO | ALLIS | 6670 | Same 1000.4A | 1991.01-1999.12 | |
| AGCO | ALLIS | 6680 | Same 1000.4A | 1991.01-1997.12 | |
| AGCO | ALLIS | 6690 | Same 1000.4AT | 1991.01-1997.12 | |
| CASE | FARM | 2140 | 4-244 | 1988.01-1992.12 | |
| CASE | FARM | 2150. E | 4-244 | 1990.01-1992.12 | |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | AGROCOMPACT | F 100 DT | 1000.4WT | - | |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | AGROCOMPACT | F 75 DT | 1000.4W | - | |
| DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) | AGROCOMPACT | F 90 DT | 1000.4WT | - | |
| HUERLIMANN | 6115-XB | Elite DT | 1000.6W | 6.0 | 1996.01-2000.12 |
| HUERLIMANN | 6135-XB | Elite /DT/ REV | 1000.6WT | 6.0 | 1996.01-2000.12 |
| HUERLIMANN | H 468 | Prestige DT/2RM | 1000.4W | 4.0 | 1989.01-1998.12 |
| HUERLIMANN | H 468.4 | Club DT/Basso | 1000.4W | - | |
| HUERLIMANN | H 476 | V | 1000.4W | 4.0 | 1988.12-1991.12 |
| HUERLIMANN | H 478 | Prestige | 1000.4W | 4.0 | 1989.01-1998.12 |
| HUERLIMANN | H 478.4 | DT | 1000.4W | 4.0 | 1989.01-1998.12 |
| HUERLIMANN | H 481 | XF DT | 1000.4W | - | |
| HUERLIMANN | H 488 | Prestige DT REV | 1000.4WT | 4.0 | 1986.01-1990.12 |
| HUERLIMANN | H 491 | XF DT | 1000.4WT | - | |
| HUERLIMANN | H 6130/ 6115 | Elite | 1000.6W | 6.0 | 1989.12- |
| HUERLIMANN | H 6135 | Elite | 1000.6WT | 6.0 | 1989.12-1996.12 |
| HUERLIMANN | H 6160/ 6165 | Master | 1000.6WTI | 6.0 | 1991.05-2001.12 |
| HUERLIMANN | H 6165 | Master DT | 1000.6WTI | 1991.05- | |
| HUERLIMANN | H 6190 | Master DT | 1000.6WTIR | 6.0 | 1992.01-2001.12 |
| HUERLIMANN | XA | 607 DT/2RM | 1000.4W | 4.0 | 1995.01-2000.12 |
| HUERLIMANN | XN | 708 | 1000.4W | 4.0 | - |
| HUERLIMANN | XN | 709 | 1000.4WT | 4.0 | - |
| HUERLIMANN | XT 908 | DT | 1000.4W | 4.0 | 1995.01-2005.01 |
| HUERLIMANN | XT 909 | DT | 1000.4WT | 4.0 | 1995.01-2004.12 |
| HUERLIMANN | XT 910.4 | DT | 1000.4WT | 4.0 | 1995.01-2004.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 1000 | .4W | 4.0 | 1987.01- | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 1000 | .4WT | 4.0 | 1987.01- | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 105 | Formula | 1000.4W; 103HP | 4.0 | 1989.01-1995.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 115 | Formula | 1000.6W; 150HP | 6.0 | 1989.12-2001.01 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 115 | Formula DT | 1000.6W; 150HP | 6.0 | 1995.01-2001.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 135 | Formula DT/DT REV | 1000.6WT; 132HP | 6.0 | 1998.01-2001.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 150 | Racing DT | 1000.6WTI; 150HP | 6.0 | 1995.01-2001.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 165 | Racing | 1000.6WTI; 163HP | 6.0 | 1991.05-2001.01 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 165 | Racing DT | 1000.6WTI; 163HP | 6.0 | 1991.01-2001.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 190 | Racing /DT | 1000.6WTIR; 189HP | 6.0 | 1992.01-2001.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 674-70 | Gran Prix | 1000.4W | 4.0 | 1989.01-1998.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 674-70 | N Cross 2RM | 1000.4W; 70HP | 4.0 | 1986.01-1990.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 674-70 | N Cross DT REV/Basso | 1000.4W; 70HP | 4.0 | 1986.01-1990.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 674-70 | Sprint | 1000.4W | 4.0 | 1995.01-2000.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 674-70 | Sprint DT/2RM | 1000.4W; 70HP | 4.0 | 1986.01-1990.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 775-V | Agile | 1000.4W | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 775-V | DT | 1000.4W | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 880 | Agile | 1000.4W | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 880-F | Plus DT | 1000.4W | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 990 | Agile | 1000.4WT | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | 990-F | Plus DT | 1000.4WT | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | C | 674 Ergomatic. 674 Largo | 1000.4W; 70HP | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | C | 774 Ergomatic | 1000.4W; 80HP | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | C | 874 Ergomatic | 1000.4WT; 90HP | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | GRAND PRIX | 674-70 DT/2RM | 1000.4W; 70HP | 4.0 | 1986.01-1990.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | GRAND PRIX | 774-80 N DT | 1000.4W; 80HP | 4.0 | 1986.01-1990.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | GRAND PRIX | 874-90 | 1000.4WT | 4.0 | 1989.01-1998.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | GRAND PRIX | 874-90 DT REV | 1000.4WT; 90HP | 4.0 | 1986.01-1990.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | PREMIUM | 1050 DT | 1000.4WT; 103HP | 4.0 | 1995.01-2004.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | PREMIUM | 1060 DT | 1000.4WT; 105HP | 4.0 | 1995.01-2004.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | PREMIUM | 850 DT/2RM | 1000.4W; 85HP | 4.0 | 1995.01-2004.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | PREMIUM | 950 DT | 1000.4WT; 95HP | 4.0 | 1995.01-2004.12 |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 1106/1306/1506 | 916.6W | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 1306 | 916.6WT | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 1706 | - | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 674-70. 774-80. 874-90 | - | - | |
| LAMBORGHINI(SAME DEUTZ-FAHR GROUP) | R | 956 | 916.6W | - | |
| SAME (DEUTZ- FAHR GROUP) | ANTARES | 100 | 1000.6A | 1989.03-2004.03 | |
| SAME (DEUTZ- FAHR GROUP) | ANTARES II | 110 DT | 1000.6A | - | |
| SAME (DEUTZ- FAHR GROUP) | ANTARES II | 130 DT/REV | 1000.6A | - | |
| SAME (DEUTZ- FAHR GROUP) | DORADO | 70 DT/2RM | 1000.4A | 4.0 | - |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 65C | 916.4A | 3.7 | 1984.01-1986.09 |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 70 II DT/2RM | 1000.4A | - | |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 70 SPL | 1000.4 | - | |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 80 | 1000.4.A | - | |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 80 II Sp.DT Basso | 1000.4A | - | |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 90 II DT REV | 1000.4AT | - | |
| SAME (DEUTZ- FAHR GROUP) | EXPLORER | 90C Ergomatic | 1000.4A | - | |
| SAME (DEUTZ- FAHR GROUP) | FRUTTETO | 75 II 2RM/DT/REV | 1000.4A | - | |
| SAME (DEUTZ- FAHR GROUP) | FRUTTETO | 85 II DT/REV | 1000.4AT | - | |
| SAME (DEUTZ- FAHR GROUP) | GOLDEN | 65 | 1000.4W | - | |
| SAME (DEUTZ- FAHR GROUP) | GOLDEN | 75 | 1000.4A.W | - | |
| SAME (DEUTZ- FAHR GROUP) | GOLDEN | 85 | 1000.4A | - | |
| SAME (DEUTZ- FAHR GROUP) | LASER | 110 | 1006PA | - | |
| SAME (DEUTZ- FAHR GROUP) | LASER | 130 | 105.6PA | - | |
| SAME (DEUTZ- FAHR GROUP) | LASER | 150 | 105.6PS | 6.2 | 1988.03-1998.12 |
| SAME (DEUTZ- FAHR GROUP) | LASER | 85 Transporter | 105.4PA | - | |
| SAME (DEUTZ- FAHR GROUP) | ROW CROP | 90 | 1000.4AT | - | |
| SAME (DEUTZ- FAHR GROUP) | SILVER | 100.4 DT | 1000.4ATI | - | |
| SAME (DEUTZ- FAHR GROUP) | SILVER | 100.6 DT | 1000.4ATI | - | |
| SAME (DEUTZ- FAHR GROUP) | SILVER | 80 DT/2RM | 1000.4A | - | |
| SAME (DEUTZ- FAHR GROUP) | SILVER | 90 DT/2RM | 1000.4AT | - | |
| SAME (DEUTZ- FAHR GROUP) | SOLAR | 60 C | 105.3P | 3.1 | 1986.06-1987.12 |
| SAME (DEUTZ- FAHR GROUP) | TITAN | 145 DT | 1000.6ATI | - | |
| SAME (DEUTZ- FAHR GROUP) | TITAN | 160 DT | 1000.6WTI | 6.0 | 1991.05- |
| SAME (DEUTZ- FAHR GROUP) | TITAN | 190 DT | 1000.6WTIR | 6.0 | 1992.01- |
| SAME (DEUTZ- FAHR GROUP) | VIGNERON | 75 DT | 1000.4AT | 1988.03-2003.03 | |
| STEYR (STEYR-DAIMLER-PUCH AG) | 8100 | WD411 | - | ||
| STEYR (STEYR-DAIMLER-PUCH AG) | 8100 | A | WD611.40 | 5.2 | 1978.12-1988.12 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 8110 | - | 1978.12- | ||
| STEYR (STEYR-DAIMLER-PUCH AG) | 8120 | WD411 | - | ||
| STEYR (STEYR-DAIMLER-PUCH AG) | 8130 | A | WD611.87.88 | 1992.10- | |
| STEYR (STEYR-DAIMLER-PUCH AG) | 8130 | A | WD611.87.88 | 5.2 | 1984.07- |
Mehr Informationen
| Gewicht (kg) | 13.764000 |
|---|---|
| Zustand | Neu |
| Die Spannung | 12 V |
| Die Leistung | 3.0 kW |
| Zähnezahl | 9 |
| Drehrichtung | Im Uhrzeigersinn |
Ersatzteile
-
-
-
-
-
-
-
-
-
-
-
-
-
