12V 3.2kW z10 (IS1059, MS430)
MAHLE Webkatalog
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Haben Sie Fragen?
400 € 315 €
Verfügbar in 2-3 Werktagen i Unser Lieferant hat diesen Artikel auf Lager, den wir innerhalb der vorgegebenen Zeit besorgen können. Bestellungen, die außerhalb der Geschäftszeiten aufgegeben werden, werden am nächsten Werktag bearbeitet.
Versandkostenrechner
Bestellschlusszeit:
GLS: 15:00 / UPS: 12:30

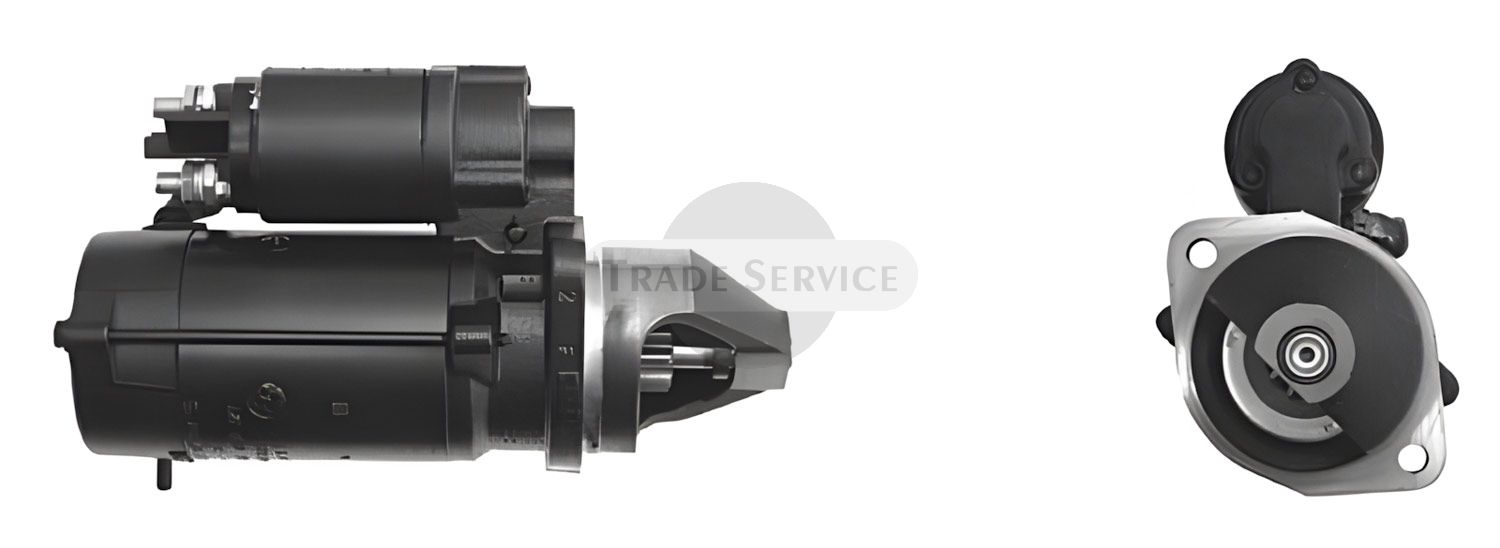

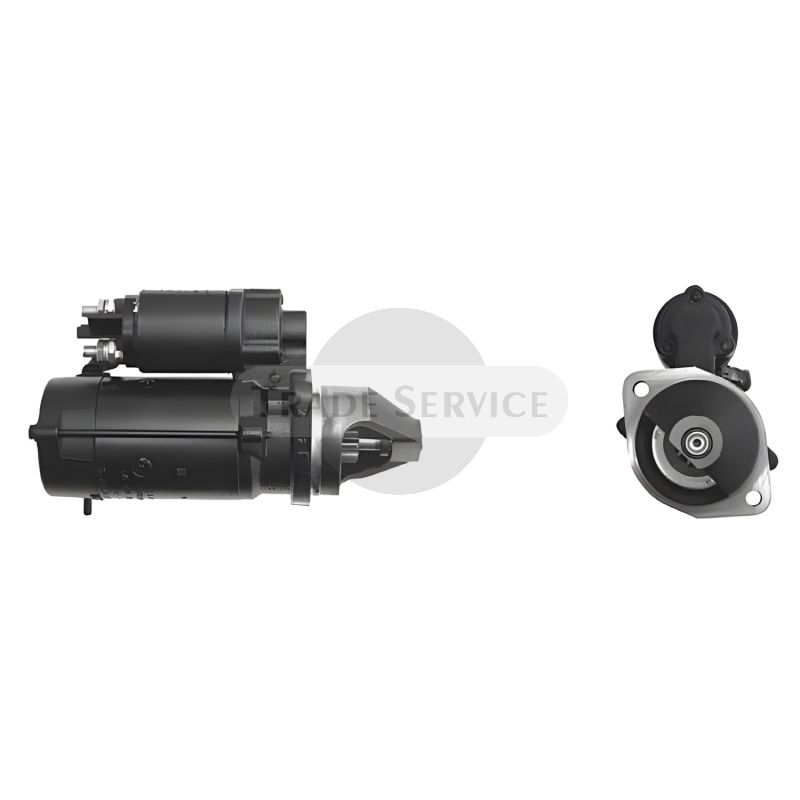

11.131.833 AZE4185 MS430 MAHLE (Letrika, Iskra) Anlasser (11131833)
Information
11.131.833 AZE4185 MS430 MAHLE (Letrika, Iskra) Anlasser (11131833) ist ein zuverlässiges Ersatzteil, das häufig bei JOHN DEERE Motoren verwendet wird.
Genaue Modelle und Referenznummern finden Sie in den Listen unten.
Falls Sie Fragen zu diesem Produkt haben oder Hilfe bei der Suche nach dem richtigen Ersatzteil benötigen, können Sie sich gerne an uns wenden!
Wir sind hier, um Ihnen zu helfen, Ihr Geschäft am Laufen zu halten.
Referenznummern
| BOSCH | 0001223502, 0986022520, F002G20658 |
|---|---|
| JOHN DEERE | RE501347, RE501680, RE501689, RE501693, RE501713, RE502156, RE502196, RE508736, RE516455, RE519568, RE551444, RE60641, RE62916, RE63010, SE501869 |
| LESTER | 17086, 18476, 18526, 18529 |
| MAHLE (Letrika, Iskra) | IS1059, 11132227, AZE4261, 11131833, AZE4185, MS430, 11131751, AZE4169, 11131384, AZE4589, 11131108, AZE4534 |
| PARIS-RHONE | D7R14 |
| VALEO | 438012, 455735 |
| WAI | 17086N |
| WILSON | 91157168 |
Kompatibilität
| Hersteller | Modell | Typ | Motor | Leistung | Baujahr |
|---|---|---|---|---|---|
| JOHN DEERE | COMBINES | 1032 | - | - | - |
| JOHN DEERE | COMBINES | 1042 | - | - | - |
| JOHN DEERE | COMBINES | 1052 | - | - | - |
| JOHN DEERE | COMBINES | 1055 | - | - | - |
| JOHN DEERE | COMBINES | 1068 | - | - | - |
| JOHN DEERE | COMBINES | 1085 | - | - | - |
| JOHN DEERE | COMBINES | 1144 | - | - | - |
| JOHN DEERE | COMBINES | 1155 | - | - | - |
| JOHN DEERE | COMBINES | 1157 | - | - | - |
| JOHN DEERE | COMBINES | 1158 | - | - | - |
| JOHN DEERE | COMBINES | 1166 | - | - | - |
| JOHN DEERE | COMBINES | 1169 | - | - | - |
| JOHN DEERE | COMBINES | 1174 | - | - | - |
| JOHN DEERE | COMBINES | 1177 | - | - | - |
| JOHN DEERE | COMBINES | 4425 | 539. 6539 | - | 1986.01-1988.12 |
| JOHN DEERE | COMBINES | 4435 | 539. 6539 | - | 1989.01-1994.12 |
| JOHN DEERE | COMBINES | 925 | - | - | - |
| JOHN DEERE | COMBINES | MD330 | 164D27Z | 2.7 | 1972.01-1974.10 |
| JOHN DEERE | COMBINES | MD930 | 4.219DZ-05 | 3.6 | 1972.08-1974.10 |
| JOHN DEERE | COMBINES | MD932 | 4.239DZ-04 | 3.9 | 1979.10-1983.10 |
| JOHN DEERE | COMBINES | MD935 | 4.219DZ-05 | 3.6 | 1975.07-1979.06 |
| JOHN DEERE | COMBINES | MD940 | 4.239DZ-01 | 3.9 | 1972.08-1975.07 |
| JOHN DEERE | COMBINES | MD942 | 4.239DZ-03 | 3.9 | 1979.10-1983.10 |
| JOHN DEERE | COMBINES | MD945 | 4.239TZ-01 | 3.9 | 1975.08-1977.10 |
| JOHN DEERE | COMBINES | MD950 | 6.329DZ-02 | 5.4 | 1974.09-1975.07 |
| JOHN DEERE | ENGINES | 3029 | 3-cyl | 2.9 | - |
| JOHN DEERE | FARM | 1020. OU. VU | 3.164 | 5.8 | 1981.01-1983.01 |
| JOHN DEERE | FARM | 1630. OU. VU | 3.179DL-01 | 2.9 | 1973.08-1982.08 |
| JOHN DEERE | FARM | 1640. 1640F | 4.239DL-03 | 3.9 | 1979.09-1986.10 |
| JOHN DEERE | FARM | 1830 | 4.219DL-03 | 3.6 | 1972.09-1979.08 |
| JOHN DEERE | FARM | 1840. 1840F | 4.239DL-04 | 3.9 | 1979.09-1986.10 |
| JOHN DEERE | FARM | 1845F | - | - | - |
| JOHN DEERE | FARM | 1850. 1850F.V | 3.179DL | 2.9 | 1986.01-1994.12 |
| JOHN DEERE | FARM | 1950. 1950F | 3.179TL | 2.9 | 1988.01-1994.12 |
| JOHN DEERE | FARM | 2030. OU | 4.219DL-03 | 3.6 | 1972.09-1979.08 |
| JOHN DEERE | FARM | 2035. 2035EF | - | - | - |
| JOHN DEERE | FARM | 2040. F. S | 4.239DL-04 | 3.9 | 1979.09-1986.10 |
| JOHN DEERE | FARM | 2130 | 4.239DL-01 | 3.9 | 1972.09-1979.08 |
| JOHN DEERE | FARM | 2140 | 4.239TL-02 | 3.9 | 1979.09-1986.10 |
| JOHN DEERE | FARM | 2150 | 3.179DL-01 | 2.9 | 1982.05- |
| JOHN DEERE | FARM | 2155 | - | - | - |
| JOHN DEERE | FARM | 2240 | 3.179DL-01 | 2.9 | 1979.09- |
| JOHN DEERE | FARM | 2250. 2250F | 4.239DL | 3.9 | 1986.01-1994.12 |
| JOHN DEERE | FARM | 2350 | 4.239DL-07 | 3.9 | 1982.05- |
| JOHN DEERE | FARM | 2450. 2450F | 4.239DL | 3.9 | 1986.01-1994.12 |
| JOHN DEERE | FARM | 2550 | 4.239DL-06 | 3.9 | 1982.05- |
| JOHN DEERE | FARM | 2750 | 4.239TL-04 | 3.9 | 1982.05- |
| JOHN DEERE | FARM | 2755 | 4-239 | - | 1987.01-1992.12 |
| JOHN DEERE | FARM | 2855 N | 4-239 | - | 1987.01-1993.12 |
| JOHN DEERE | FARM | 2940 | 6.359DL-03 | 5.9 | 1982.05- |
| JOHN DEERE | FARM | 2950 | 6.359DL-04 | 5.9 | 1982.05- |
| JOHN DEERE | FARM | 2955 | 6.359 | 5.9 | 1987.01-1992.12 |
| JOHN DEERE | FARM | 3050 | 6.359DL | 5.9 | 1986.01-1993.12 |
| JOHN DEERE | FARM | 3055 | 6-359 | 5.9 | 1992.01- |
| JOHN DEERE | FARM | 3100 | 3029D | 2.9 | 1995.01-1998.12 |
| JOHN DEERE | FARM | 3120 | - | - | 1972.01- |
| JOHN DEERE | FARM | 3155 | 6-359 | 5.9 | 1987.01-1992.12 |
| JOHN DEERE | FARM | 5055 E | 3029HPY40/TPY24 | 2.9 | 2013.01- |
| JOHN DEERE | FARM | 5065 E | 3029HPY40/TPY24 | 2.9 | 2013.01- |
| JOHN DEERE | FARM | 5075 E | 3029HPY40/TPY24 | 2.9 | 2013.01- |
| JOHN DEERE | FARM | 5080 G | 4045FL | 74HP | Tier III |
| JOHN DEERE | FARM | 5090 G | 4045HAT81 | 91HP | Stage IIIA |
| JOHN DEERE | FARM | 5103 | - | - | - |
| JOHN DEERE | FARM | 5203 | - | - | - |
| JOHN DEERE | FARM | 5210 | 320 | 2.9 | 1995.01- |
| JOHN DEERE | FARM | 5303 | - | - | - |
| JOHN DEERE | FARM | 5310. 5310N | 320 | 2.9 | 1995.01-2000.12 |
| JOHN DEERE | FARM | 5410. 5410N | 320 | 2.9 | 1995.01- |
| JOHN DEERE | FARM | 5415. 5415N. 5415H | 4.045T | 4.5 | 2003.01-2008.12 |
| JOHN DEERE | FARM | 5615 | - | - | - |
| JOHN DEERE | FARM | 5620 | 4.045 | 4.5 | 2003.01-2009.12 |
| JOHN DEERE | FARM | 6100. 6100L | 4-239 | 3.9 | 1992.01-1996.01 |
| JOHN DEERE | FARM | 6200-2. | 4039T | 4.0 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6200-4 | 4039T | 4.0 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6300. 6300L | 4-239 | 3.9 | 1993.01- |
| JOHN DEERE | FARM | 6300-2 | 4039T | 4.0 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6300-4 | 4039T | 4.0 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6400 | 4-276 | - | 1993.01- |
| JOHN DEERE | FARM | 6400. L. SP | 4045T | 4.5 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6400-2.-4 | 4-239 | 4.5 | 1992.01-1998.01 |
| JOHN DEERE | FARM | 6405 | 4045T | 4.5 | 1998.01-2001.01 |
| JOHN DEERE | FARM | 6410. L. S. SE | 4045T | 4.5 | 1998.01-2001.01 |
| JOHN DEERE | FARM | 6500. 6500L | - | - | 1993.01- |
| JOHN DEERE | FARM | 6510. 6510L. 6510S | 4045T | 4.5 | 1998.01-2001.01 |
| JOHN DEERE | FARM | 820. 820VU | 3.152 | - | 1971.01-1975.12 |
| JOHN DEERE | FARM | 840 | 3.179 | 2.9 | 1979.01-1986.12 |
| JOHN DEERE | FARM | 920 | 3.152 | - | 1971.01-1975.12 |
| JOHN DEERE | TRACTORS | 2150 | - | - | 1983.01-1986.12 |
| JOHN DEERE | TRACTORS | 2155 | 3-179 | - | 1987.01-1992.12 |
| JOHN DEERE | TRACTORS | 2255 | 3-179 | - | 1983.01-1986.12 |
| JOHN DEERE | TRACTORS | 3055 | 359 | - | 1992.01- |
| JOHN DEERE | TRACTORS | 3155 | 6-359 | - | 1987.01-1991.12 |
| JOHN DEERE | TRACTORS | 3255 | 359 | - | 1992.01- |
| JOHN DEERE | TRACTORS | 5045 D | PowerTech M-Tier 3 | 3cyl 33kW | 2.9 |
| JOHN DEERE | TRACTORS | JD300. JD300A | 3.152DL-05 | 2.5 | 1971.03-1974.04 |
| JOHN DEERE | TRACTORS | JD310 | 3.179DL-03 | 2.9 | 1974.03-1988.10 |
| JOHN DEERE | TRACTORS | JD350. JD350A | 3.152DL-10 | 2.5 | 1971.03-1988.10 |
| JOHN DEERE | TRACTORS | JD400. JD400A | 4202. 4219 | - | 1971.01-1979.12 |
| JOHN DEERE | TRACTORS | JD410 | 4.219DL-09 | 3.6 | 1974.03-1988.10 |
| JOHN DEERE | TRACTORS | JD450A/B/C | 4202. 4219 | - | 1971.01-1979.12 |
| JOHN DEERE | UTILITY | 2040 | 152 Dsl | - | 1980.12-1985.12 |
| JOHN DEERE | UTILITY | 2150 | 3-179 | - | 1982.01-1982.12 |
| JOHN DEERE | UTILITY | 2155 | 3-179 | - | 1987.01-1992.12 |
| JOHN DEERE | UTILITY | 2240 | 164 | - | 1976.01-1982.12 |
| JOHN DEERE | UTILITY | 2255 | 3-179 Dsl | - | 1983.01-1987.12 |
| JOHN DEERE | UTILITY | 2350 | 4-239 | - | 1983.01-1986.12 |
| JOHN DEERE | UTILITY | 2355. 2355N | 4-239 Dsl | - | 1986.01-1992.12 |
| JOHN DEERE | UTILITY | 2550 | 4-239 | - | 1982.01-1987.12 |
| JOHN DEERE | UTILITY | 2555 | 4-239 | - | 1987.01-1992.12 |
| JOHN DEERE | UTILITY | 5103 | JD | 2.9 | - |
| JOHN DEERE | UTILITY | 5105 | JD | 2.9 | - |
| JOHN DEERE | UTILITY | 5200 | 3-179 Diesel | - | 1992.01- |
| JOHN DEERE | UTILITY | 5203 | JD | 2.9 | - |
| JOHN DEERE | UTILITY | 5220 | JD | 2.9 | - |
| JOHN DEERE | UTILITY | 5300. 5300N | 3-179 Diesel | - | 1992.01- |
| JOHN DEERE | UTILITY | 5303 | JD | 2.9 | - |
| JOHN DEERE | UTILITY | 5310. 5310N | 3-029 | 2.9 | 1997.01- |
| JOHN DEERE | UTILITY | 5310N | 4045 | - | 2002.01- |
| JOHN DEERE | UTILITY | 5320. 5320N | JD | 2.9 | - |
| JOHN DEERE | UTILITY | 5400. 5400N | 3-179 Diesel | - | 1992.01- |
| JOHN DEERE | UTILITY | 5500. 5500N | 4-239 Diesel | 3.9 | 1992.01- |
| JOHN DEERE | UTILITY | 820 | 830 | 3-cyl | - |
| JOHN DEERE | UTILITY | 840 | 3.179DL-04 | 2.9 | 1979.09-1984.01 |
| JOHN DEERE | UTILITY | 920 | 3.152DL-02 | 2.5 | 1971.04-1975.07 |
| JOHN DEERE | UTILITY | 930 | 3.164DL-15 | 2.7 | 1975.08-1979.08 |
| JOHN DEERE | UTILITY | 940 | 3.179DL-05 | 5.9 | 1979.09-1986.10 |
Mehr Informationen
| Gewicht (kg) | 8.248000 |
|---|---|
| Zustand | Neu |
| Die Spannung | 12 V |
| Die Leistung | 3.2 kW |
| Zähnezahl | 10 |
| Drehrichtung | Im Uhrzeigersinn |
| Bemerkungen | With reduction gear |
