448 € 353 €
Verfügbar in 2-3 Werktagen i Unser Lieferant hat diesen Artikel auf Lager, den wir innerhalb der vorgegebenen Zeit besorgen können. Bestellungen, die außerhalb der Geschäftszeiten aufgegeben werden, werden am nächsten Werktag bearbeitet.
Versandkostenrechner
Bestellschlusszeit:
GLS: 15:00 / UPS: 12:30

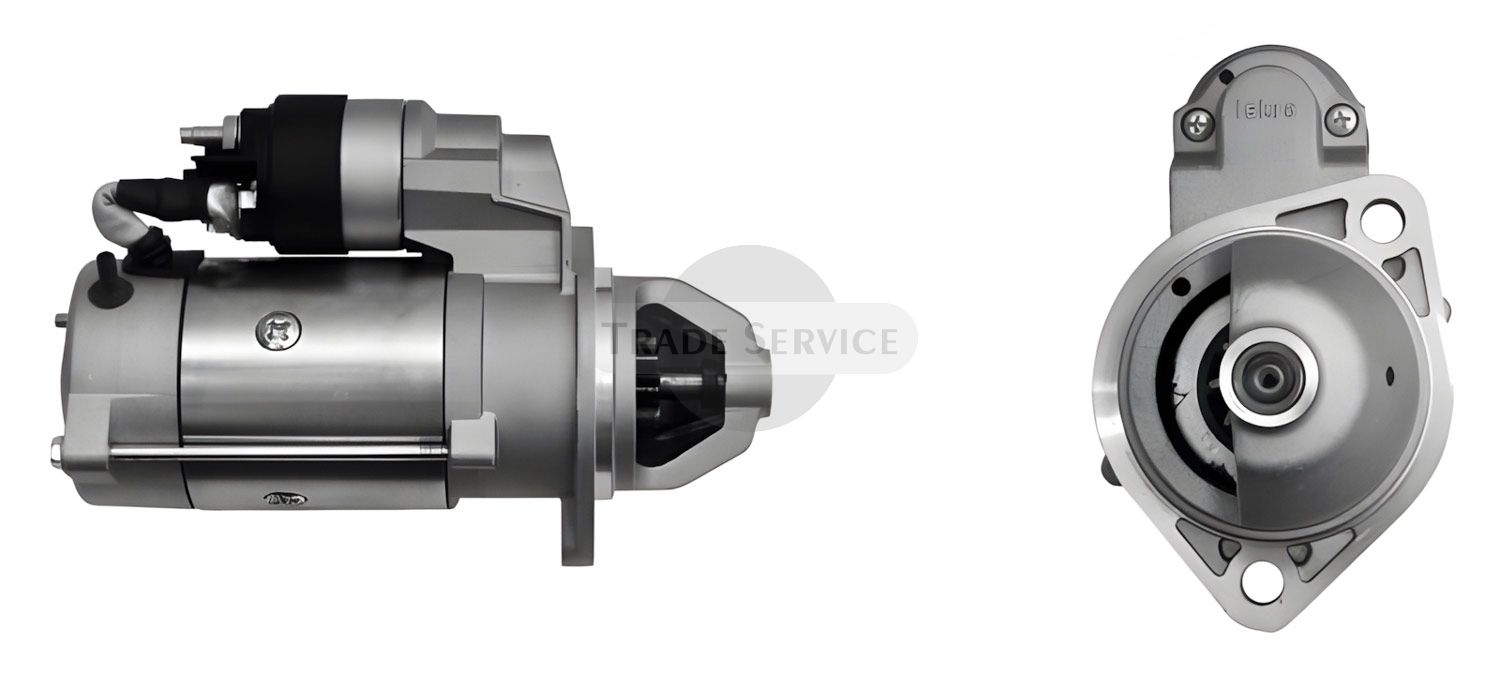

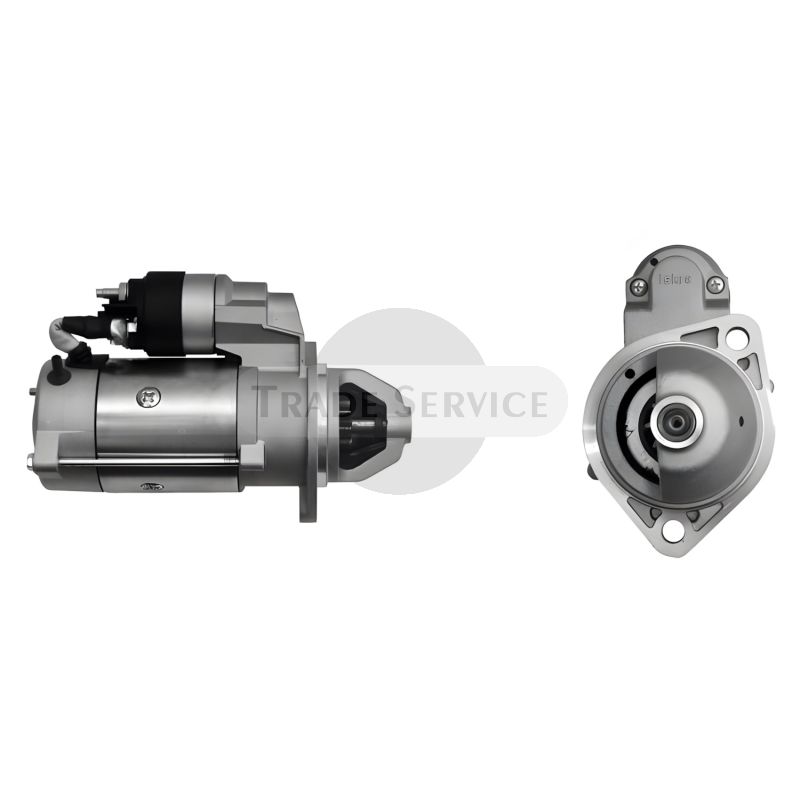

11.131.949 AZE6555 MS28 MAHLE (Letrika, Iskra) Anlasser (11131949)
Referenznummern
| ATLAS COPCO | 2913146100 |
|---|---|
| BOMAG | 05718064 |
| BOSCH | 0001223021 |
| DELCO REMY | DRB9820 |
| DEUTZ AG (KHD) | 01181751, 01182124, 01182382, 01183599, 01184176, 04300007 |
| LESTER | 18951 |
| LUCAS | LRS01755 |
| MAGNETI MARELLI | 063522230160, MSN2035 |
| MAHLE (Letrika, Iskra) | IS1217, 11132570, AZE6595, 11131949, AZE6555, MS28, 11131600, AZE6530 |
| PRESTOLITE | 861094 |
| WACKER NEUSON | 1000164332 |
Kompatibilität
| Hersteller | Modell | Typ | Motor | Leistung | Baujahr |
|---|---|---|---|---|---|
| AHLMANN (MECALAC) | COMPACT | AF60e | D2011 L03; 3-cyl; 30kW | - | |
| AHLMANN (MECALAC) | SYSTEM 180 (SWING) | AS50 | D2011 L03i; 3-cyl; 30kW | - | |
| AHLMANN (MECALAC) | SYSTEM 180 (SWING) | AZ85t | BF4L1011FT; 51.5kW | 2.7 | - |
| AHLMANN (MECALAC) | SYSTEM 180 (SWING) | AZ90t | TCD2011 L04W; 4-cyl; 57kW | 3.1 | - |
| AMMANN | LIGHT PIVOT-ST. ROLLERS | ARP35 | D2011 L03i; 3-cyl; 36kW | - | |
| AMMANN | TRACKED PAVERS | AFT270 E/G | D2011 L03i; 3-cyl; 33kW | - | |
| AMMANN | WHEELED PAVERS | AFW270 E/G | D2011 L03i; 3-cyl; 33kW | - | |
| AMMANN | WHEELED PAVERS | AFW350 E/G | TD2011 L04i; 4-cyl; 51.5kW | - | |
| AMMANN | WHEELED PAVERS | PW2700 | D2011 L03i; 3-cyl; 33kW | - | |
| ATLAS COPCO | COMPRESSORS | XAHS 107 C3 | Deutz TD 2011; 52kW | - | |
| ATLAS COPCO | COMPRESSORS | XAS 137 C2 | BF4M 2011; 4-cyl; 58kW | 2.3 | - |
| ATLAS COPCO | COMPRESSORS | XAS 137 C3 | Deutz TD 2011; 52kW | - | |
| ATLAS COPCO | COMPRESSORS | XAS 137 DdG | Deutz TD 2011; 52kW | - | |
| ATLAS COPCO | PORTABLE AIR COMPRESORS | XAHS 37 Dd | D2011 L02; 2-cyl; 22kW | 1.5 | - |
| ATLAS COPCO | PORTABLE AIR COMPRESORS | XAS 47 Dd | D2011 L02; 2-cyl; 22kW | 1.5 | - |
| ATLAS COPCO | PORTABLE AIR COMPRESORS | XAS 47 DdG | D2011 L02; 2-cyl; 23kW | 1.5 | - |
| ATLAS COPCO | PORTABLE AIR COMPRESORS | XAS 57 Dd | D2011 L02; 2-cyl; 23kW | 1.5 | - |
| ATLAS COPCO | PORTABLE AIR COMPRESORS | XAS 67 DdG | D2011 L03i; 3-cyl; 33kW | - | |
| ATLAS COPCO | PORTABLE AIR COMPRESORS | XAS 67Dd | L2011 L03; 3-cyl; 33kW | - | |
| ATLAS COPCO | PORTABLE AIR COMPRESORS | XAS 97 Dd | D2011 L03i; 3-cyl; 36kW | - | |
| ATLAS COPCO | PORTABLE AIR COMPRESORS | XAS 97 DdG | D2011 L03i; 3-cyl; 36kW | - | |
| ATLAS COPCO | PORTABLE AIR COMPRESORS | XATS 67 Dd | D2011 L03i; 3-cyl; 36kW | - | |
| ATLAS COPCO | PORTABLE AIR COMPRESORS | XATS 77 Dd | D2011 L03; 3-cyl; 32kW | - | |
| ATLAS COPCO | PORTABLE GENERATORS | QAX 12 400V-3PH; 120V-1PH | Deutz F2M2011; 2-cyl; 12kW | 1.6 | - |
| ATLAS COPCO | PORTABLE GENERATORS | QAX 20 400V-3PH | Deutz F3M 2011F. 3-cyl; 19kW | 2.3 | - |
| ATLAS COPCO | PORTABLE GENERATORS | QAX 24 240V-3PH | Deutz F3M 2011F. 3-cyl; 23kW | 2.3 | - |
| ATLAS COPCO | PORTABLE GENERATORS | QAX 30 400V-3PH | Deutz BF3M 2011F; 3-cyl; 28kW | 2.3 | - |
| ATLAS COPCO | PORTABLE GENERATORS | QAX 35 240V-3PH | Deutz F3M 2011F. 3-cyl; 32kW | 2.3 | - |
| ATLAS COPCO | PORTABLE GENERATORS | QAX 45 240V-3PH | Deutz BF4M 2011; 4-cyl; 44kW | 3.2 | - |
| ATLAS COPCO | PORTABLE GENERATORS | QAX 70 240V-3PH | Deutz BF4M 2011; 4-cyl; 63kW | 3.2 | - |
| BOMAG | DRUM VIBRATORY ROLLERS | BW 151 AD-4 AM | TD2011 L04w; 63kW | 3.6 | - |
| BOMAG | DRUM VIBRATORY ROLLERS | BW 161 AC-4 | TCD2011 L04w; 75kW; Tier 3a | 3.6 | - |
| BOMAG | DRUM VIBRATORY ROLLERS | BW 161 AD-4 | TCD2011 L04w; 75kW; Tier 3a | 3.6 | - |
| BOMAG | DRUM VIBRATORY ROLLERS | BW 161 AD-40 | TCD2011 L04w; 75kW; Tier 3a | 3.6 | - |
| BOMAG | SINGLE DRUM ROLLERS | BW 124 DH | D2011 L3i; 33kW; Tier 3a/4i | 2.3 | - |
| BOMAG | SINGLE DRUM ROLLERS | BW 124 PDB (T) | D2011 L3i; 33kW; Tier 3a/4i | 2.3 | - |
| BOMAG | SINGLE DRUM ROLLERS | BW 124 PHD | D2011 L3i; 33kW; Tier 3a/4i | 2.3 | - |
| BOMAG | SINGLE DRUM ROLLERS | BW 145 D | TD2011 L04i; 56kW | 3.6 | - |
| BOMAG | SINGLE DRUM ROLLERS | BW 145 DH | TD2011 L04i; 56kW | 3.6 | - |
| BOMAG | SINGLE DRUM ROLLERS | BW 145 PDH | TD2011 L04i; 56kW | 3.6 | - |
| BOMAG | SINGLE DRUM ROLLERS | BW 177 DH-4 | TCD2011 L04w; 75kW; Tier 3a | 3.6 | - |
| BOMAG | SINGLE DRUM ROLLERS | BW 177 DH-4 BVC | TCD2011 L04w; 75kW; Tier 3a | 3.6 | - |
| BOMAG | SINGLE DRUM ROLLERS | BW 177 PDH-4 | TCD2011 L04w; 75kW; Tier 3a | 3.6 | - |
| BOMAG | SINGLE DRUM ROLLERS | BW 179 DH-4 | TCD2011 L04w; 75kW; Tier 3a | 3.6 | - |
| BOMAG | SINGLE DRUM ROLLERS | BW 179 PDH-4 | TCD2011 L04w; 75kW; Tier 3a | 3.6 | - |
| DEUTZ AG (KHD) | BF3L2011 | - | 2.3 | - | |
| DEUTZ AG (KHD) | BF3M2011 | - | - | ||
| DEUTZ AG (KHD) | BF4M2011 | - | - | ||
| DEUTZ AG (KHD) | D2011 | L2 | - | - | |
| DEUTZ AG (KHD) | D2011 | L3 | D2011 L3; 3-cyl | - | |
| DEUTZ AG (KHD) | D2011 | L4 | D2011 L4; 4-cyl | - | |
| DEUTZ AG (KHD) | F2L201 | - | - | ||
| DEUTZ AG (KHD) | F2M2011 | - | - | ||
| DEUTZ AG (KHD) | F3L2011 | - | 2.0 | 1995.01- | |
| DEUTZ AG (KHD) | F3M1011 | - | - | ||
| DEUTZ AG (KHD) | F4L2011 | - | - | ||
| DEUTZ AG (KHD) | F4M2011 | - | - | ||
| DEUTZ AG (KHD) | TCD2011 L4 | 4 cyl | 3.6 | - | |
| DEUTZ AG (KHD) | TD2011 | L2 | TD2011 2-cyl | - | |
| DEUTZ AG (KHD) | TD2011 | L3 | TD2011 3-cyl | 2.3 | - |
| DEUTZ AG (KHD) | TD2011 | L4 | TD2011 4-cyl | 3.6 | - |
| DYNAPAC (ATLAS COPCO GROUP) | COMBI ROLLERS | CC142C | D2011 L03i; 3-cyl; 34W | - | |
| DYNAPAC (ATLAS COPCO GROUP) | DOUBLE DRUM VIBR. ROLLERS | CC102 | D2011 L02; 2-cyl; 23kW | 1.5 | - |
| DYNAPAC (ATLAS COPCO GROUP) | DOUBLE DRUM VIBR. ROLLERS | CC122 | D2011 L02; 2-cyl; 23kW | 1.5 | - |
| DYNAPAC (ATLAS COPCO GROUP) | DOUBLE DRUM VIBR. ROLLERS | CG333HF | TCD2011 L04W; 4-cyl; 65kW | 3.6 | - |
| DYNAPAC (ATLAS COPCO GROUP) | PAWERS | F1700W | TCD2011 L04; 4-cyl; 52kW | 3.6 | - |
| DYNAPAC (ATLAS COPCO GROUP) | PAWERS | F1700WS | TCD2011 L04; 4-cyl; 52kW | 3.6 | - |
| DYNAPAC (ATLAS COPCO GROUP) | PAWERS | F1700WS Plus | TCD2011 L04; 4-cyl; 52kW | 3.6 | - |
| DYNAPAC (ATLAS COPCO GROUP) | PAWERS | F6-4W | TCD2011 L04; 4-cyl; 52kW | 3.6 | - |
| GEKO | PROFFESSIONALS | 30003 ED-S/DEDA | Deutz D2011 L4; 28kW | 3.6 | - |
| GEKO | SUPER SILENT | 30010 ED-S/DEDA | Deutz D2011 L4; 28kW | 3.1 | - |
| GEKO | SUPER SILENT | 40010 ED-S/DEDA | Deutz BF4M2011; 37.4kW | 3.6 | - |
| HAMM | LARGE ROLLERS HD SERIES | HD 70 | TD2011 L04 W; 55kW. Tier 4 | 3.6 | - |
| HAMM | LARGE ROLLERS HD+ SERIES | HD+ 70i VO | TCD2.9 L4; 55kW. Tier 4 | 2.9 | - |
| HAMM | LARGE ROLLERS HD+ SERIES | HD+ 70i VT | TCD2.9 L4; 55kW. Tier 4 | 2.9 | - |
| HAMM | LARGE ROLLERS HD+ SERIES | HD+ 70i VV | TCD2.9 L4; 55kW. Tier 4 | 2.9 | - |
| HAMM | LARGE ROLLERS HD+ SERIES | HD+ 80 VV S | TCD2.9 L4; 55kW. Tier 4 | 2.9 | - |
| HAMM | LARGE ROLLERS HD+ SERIES | HD+ 80i VO | TCD2.9 L4; 55kW. Tier 4 | 2.9 | - |
| HAMM | LARGE ROLLERS HD+ SERIES | HD+ 80i VO S | TCD2.9 L4; 55kW. Tier 4 | 2.9 | - |
| HAMM | LARGE ROLLERS HD+ SERIES | HD+ 80i VT | TCD2.9 L4; 55kW. Tier 4 | 2.9 | - |
| HAMM | LARGE ROLLERS HD+ SERIES | HD+ 80i VV | TCD2.9 L4; 55kW. Tier 4 | 2.9 | - |
| JLG | ARTICULATING BOOM LIFTS | 520AJ | Deutz D2.3 L3; 36.4kW. IIIA | 2.3 | - |
| LIEBHERR | WHEEL LOADERS | L506 Compact | D2011 L4W; 4-cyl; 46kW | 3.6 | - |
| LIEBHERR | WHEEL LOADERS | L507 Speeder/Stereo | D2011 L4W; 4-cyl; 46kW | 3.6 | - |
| LIEBHERR | WHEEL LOADERS | L508 Compact | D2011 L4W; 4-cyl; 46kW | 3.6 | - |
| LIEBHERR | WHEEL LOADERS | L509 Speeder/Stereo | D2011 L4W; 4-cyl; 60kW | 3.6 | - |
| LIEBHERR | WHEEL LOADERS | L510 Stereo | D2011 L4W; 4-cyl; 60kW | 3.6 | - |
| MECALAC | SWING LOADERS | AS50 | D2011 L03i; 3-cyl; 30kW | 2010.01- | |
| NORTON CONSTRUCTION | CLIPPER CS900 | Deutz AG: D2011 L03I; 36.3kW | - | ||
| PAUS | LOAD HAUL DUMPER | SMK 365 | Deutz D2011 L04i; 36.4kW | 3.6 | - |
| PORTAFILL | SCALPING SCREENS | MR-5 | TD2011 L4; 41kW Tier 3 | 3.6 | - |
| PORTAFILL | TROMMEL SCREENS | MT-5 | TD2011 L4; 41kW Tier 3 | 3.6 | - |
| TEREX | BACKHOE LOADERS | TL100 | Deutz TD2011 L04W; 54kW | 3.6 | - |
| TRAXX CONSTRUCTION | FLOOR SAW | RELLOK RSF 330 | Deutz AG: D2011 L03i; 34.5kW | 2.3 | - |
| TRAXX CONSTRUCTION | FLOOR SAW | RELLOK RSF 420 | BF3L2011. Stage 3. 50kW | 2.3 | - |
Mehr Informationen
| Gewicht (kg) | 5.555000 |
|---|---|
| Zustand | Neu |
| Die Spannung | 12 V |
| Die Leistung | 2.6 kW |
| Zähnezahl | 9 |
| Drehrichtung | Im Uhrzeigersinn |
| Bemerkungen | Dust-proof, Terminal 45, With reduction gear |
