12V 4.2kW z9 (IS1434, MS176)
MAHLE Webkatalog
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Haben Sie Fragen?
518 € 408 €
Auf Lager i Ab Lager in unserem Shop erhältlich. Aktualisierungshäufigkeit: 5 Minuten
Versandkostenrechner
Bestellschlusszeit:
GLS: 15:00 / UPS: 12:30

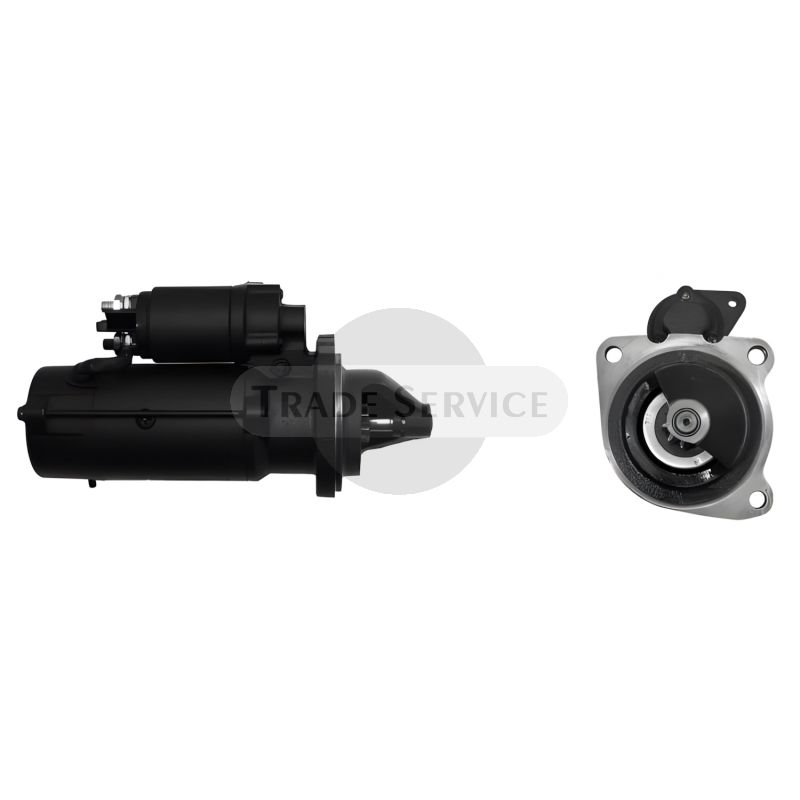

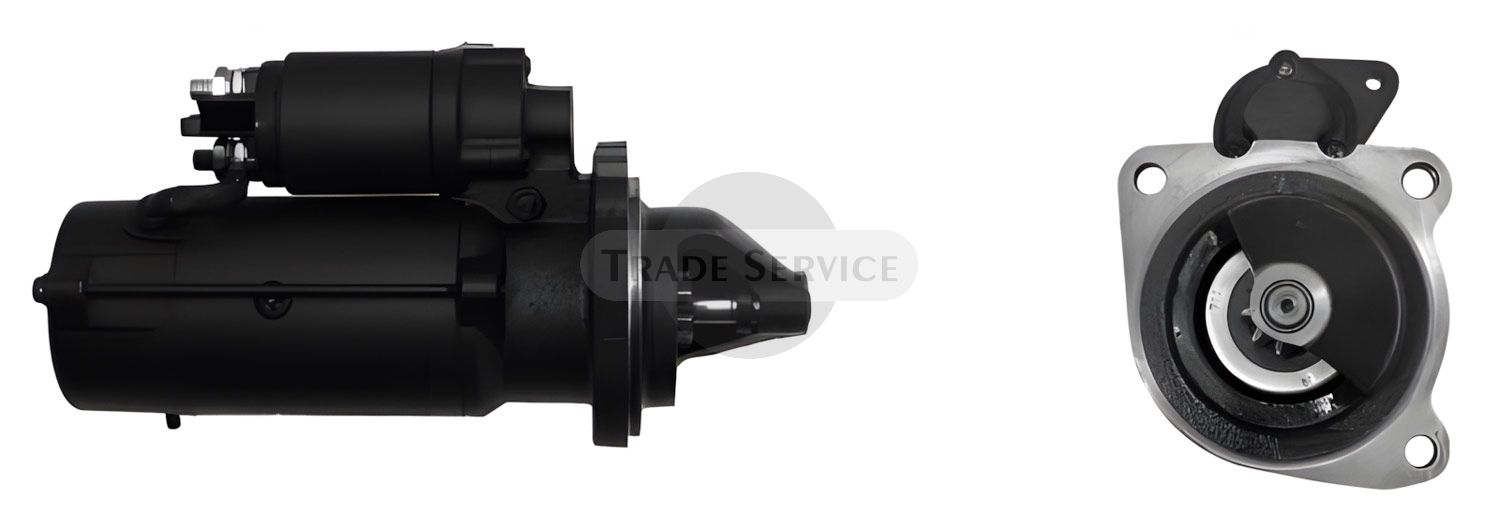

11.132.325 AZF4362 MS176 MAHLE (Letrika, Iskra) Anlasser (11132325)
Referenznummern
| BOSCH (USA) | SR911X |
|---|---|
| BOSCH | 0001230009, 0001359122, 0001367029, 0986012720 |
| CARGO | 110522 |
| CNH / FIAT AGRI | 500325146 |
| DELCO REMY | DRS0025 |
| EFEL | 11420, 14650 |
| FIAT NEW HOLLAND | 4719666, 4737759, 4807376, 9972215 |
| FIAT | 4713806, 4737759, 4755110 |
| HELLA | 8EA726118001, 8EA730198001, CS370, CS682 |
| IVECO | 4807376, 500325146 |
| LESTER | 16559, 17092, 33303 |
| MAGNETI MARELLI | 06352230090, 63216873, 63216896, 63522300, 943216896, MSN224, MT68L, MT68LA, MT68LB, MT68LC |
| MAHLE (Letrika, Iskra) | IS1434, 11132325, AZF4362, MS176 |
| NEW HOLLAND | 500325146 |
| SPAREX | 359810 |
| UNIC | 4755110 |
Kompatibilität
| Hersteller | Modell | Typ | Motor | Leistung | Baujahr |
|---|---|---|---|---|---|
| AGRIFULL | 100 | .DT | 8065.06.200.300 | 5.4 | 1985.05- |
| AGRIFULL | 110 | DT | 8065.05.220 | 5.9 | 1986.05- |
| AGRIFULL | 140 | .DT | 8065.25.000 | 5.9 | 1985.05- |
| AGRIFULL | 90 | .DT | 8055.05.200 | 4.9 | 1985.05- |
| AIFO | 8361 | .05.500 | 160PS | 8.1 | 1980.03-1983.06 |
| AIFO | 8361 | .25.500 | 175PS | 8.1 | 1980.03-1983.06 |
| AIFO | 8361 | 05.530 | 8.1 | 1978.01-1983.12 | |
| FIAT | 100 | .90.DT | 8065.06.200 | 1987.05-1988.08 | |
| FIAT | 100 | F100 | 8065.06.230; 300; 98HP | 5.4 | 1984.06- |
| FIAT | 110 | 90 | 8065.05.220 | 5.9 | 1984.11- |
| FIAT | 1100 | TN 1 | 8065.. | - | |
| FIAT | 115 | 90 | 8065.05.200 | 5.9 | 1984.01- |
| FIAT | 115.9 | 8065.05.000 | - | ||
| FIAT | 1180 | 8065.04.217 | 5.5 | 1980.09-1983.12 | |
| FIAT | 120 | 8065.05 | 1984.01- | ||
| FIAT | 1280 | 8065.24.300 | 5.5 | 1981.04-1983.12 | |
| FIAT | 130 | 8365.05.555 | 8.1 | 1981.07- | |
| FIAT | 130 | 90 | 8065.25.010 | 5.9 | 1984.01- |
| FIAT | 1380 | 8065.24.000 | 5.5 | 1980.09-1983.12 | |
| FIAT | 140 | .90.DT | 8065.25.000 | 1985.05-1988.08 | |
| FIAT | 1400 | 90 | 8065.25.000 | 5.9 | 1984.01- |
| FIAT | 1580 | 8365.05.500 | 8.0 | 1981.07-1983.12 | |
| FIAT | 1580 | Turbo | 8365.25.501 | 8.0 | 1983.01-1983.12 |
| FIAT | 160 | 90 | 8365.25.503 | 8.1 | 1984.01- |
| FIAT | 180 | 90 | 8365.25.502 | 8.1 | 1984.01- |
| FIAT | 1880 | 8365.25.500 | 8.0 | 1980.09-1983.12 | |
| FIAT | 880 | 5 | 8055.04.200 | 4.6 | 1982.09-1984.06 |
| FIAT | 90 | 90 | 8055.05.200 | 4.9 | 1984.06- |
| FIAT | 95 | 55 | 8055.05.205 | 4.9 | 1984.10- |
| FIAT | 955 | C | 8055.04.205 | 4.6 | 1981.02-1984.12 |
| FIAT | 980 | 8065.02.217 | 5.2 | 1980.09-1984.06 | |
| FIAT | 980 | DT | - | - | |
| FIAT | 980 | DT | 8065.02.217 | 5.2 | 1980.09-1984.06 |
| FIAT | DI | 130 | OM-8365.05.555 | 8.1 | 1981.07-1989.12 |
| FIAT GEOTECH | F100 | 8065.06A.330 | 5.9 | 1990.09- | |
| FIAT GEOTECH | F110 | 8065.05A.325 | 5.9 | 1990.09-1993.02 | |
| FIAT GEOTECH | F120 | 8065.05B.330 | 5.9 | 1990.09- | |
| FIAT GEOTECH | F130 | 8065.25A.220 | 5.9 | 1990.09- | |
| FIAT GEOTECH | F140 | 8065.25S.230 | 5.9 | 1993.03- | |
| FORD NEW HOLLAND | 8000 | 8430DT (AS.RCB.USA) | Unic | 8.1 | 1993.12- |
| FORD NEW HOLLAND | 8000 | 8630DT (AS.RCB.USA) | Unic | 8.1 | 1993.12- |
| FORD NEW HOLLAND | 8000 | 8830DT (AS.RCB.USA) | OM-8365.. | 8.1 | 1993.12- |
| IVECO | 160 | A13FL (USA) | OM-8360.05.673 | 8.1 | 1983.01-1984.11 |
| IVECO | AIFO-8361 | .25.510 | 8.1 | 1984.05-1989.12 | |
| IVECO | AIFO-8361 | 05.500 | 8.1 | 1983.06- | |
| IVECO | AIFO-8361 | 05.501 | 8.1 | 1984.01- | |
| IVECO | AIFO-8361 | 05.530 SRM37 | 8.1 | 1978.06- | |
| IVECO | AIFO-8361 | 25.500 | 8.1 | 1983.06-1985.12 | |
| IVECO | AIFO-8361 | 25.500 SRM37 | 8.1 | 1983.12-1987.09 | |
| IVECO | AIFO-8361 | 25.501 | 8.1 | 1984.01-1985.12 | |
| IVECO | AIFO-8361 | 25.530 SRM37 | 8.1 | 1984.10- | |
| IVECO | AIFO-8361 | 25.540 SRM38.10 | 8.0 | 1992.01- | |
| IVECO | AIFO-8361 | SI10.00 | 8.1 | 1990.01- | |
| IVECO | AIFO-8361 | SRI26 | 8.1 | 1989.12- | |
| IVECO | EURO 110 | Fiat-8060.05.661.663 | 5.9 | 1987.01-1988.08 | |
| IVECO | EURO 120 | Fiat-8060.25.661.663 | 5.9 | 1987.01-1988.08 | |
| IVECO | EURO 220 | Fiat-8060.05.662.673 | 5.9 | 1987.01-1988.08 | |
| IVECO | EURO 220T | Fiat-8060.25.661 | 5.9 | 1987.01-1988.08 | |
| IVECO | EURO 230T | Fiat-8060.25.662. 673 | 5.9 | 1987.01-1988.09 | |
| IVECO | EURO 335T | Fiat-8060.25.631 | 5.9 | 1987.01-1988.09 | |
| IVECO | EURO 340T | Fiat-8060.25.641 | 5.9 | 1987.01-1988.08 | |
| IVECO | EURO 435T | Fiat-8060.25.631 | 5.9 | 1987.01-1988.08 | |
| IVECO | EURO 450T | Fiat-8060.25.621 | 5.9 | 1987.01-1988.09 | |
| IVECO | EURO TURBO | 10-14 | Fiat-8060.25.243 | 6.0 | 1988.10-1990.12 |
| IVECO | EURO TURBO | 12-14 | Fiat-8060.25.241.246 | 6.0 | 1988.10-1990.09 |
| IVECO | EURO TURBO | 13-14 | Fiat-8060.25.243 | 6.0 | 1990.04-1990.12 |
| IVECO | EURO TURBO | 15-14 | Fiat-8060.25.241.246 | 6.0 | 1988.10-1990.12 |
| IVECO | EURO TURBO | 18-14 | Fiat-8060.25.243 | 6.0 | 1988.10-1990.09 |
| IVECO | EURO TURBO | 18-16 | Fiat-8060.25.221 | 6.0 | 1990.02-1990.12 |
| IVECO | EURO TURBO | 23-16 | Fiat-8060.25.221 | 6.0 | 1988.10-1990.12 |
| IVECO | Z 110 | Fiat-8060.05.661 | 5.9 | 1986.06-1986.12 | |
| IVECO | Z 120 | Fiat-8060.25.661 | 5.9 | 1986.02-1986.12 | |
| IVECO | Z 220 T | Fiat-8060.05.662 | 5.9 | 1986.06-1986.12 | |
| IVECO | Z 230 T | Fiat-8060.25.662 | 5.9 | 1986.07-1986.12 | |
| IVECO | Z 235 T | Fiat-8060.25.630.631 | 5.9 | 1986.10-1986.12 | |
| IVECO | Z 340 T | Fiat-8060.25.641 | 5.9 | 1986.06-1986.12 | |
| LAVERDA (FIATAGRI) | 3700 | OM-8361 | 8.1 | 1983.01-1985.12 | |
| LAVERDA (FIATAGRI) | 3790 | OM-8361 SI 10.00 | 8.1 | 1985.06- | |
| LAVERDA (FIATAGRI) | 3850 | OM-8361 S 10 | 8.1 | 1991.01- | |
| LAVERDA (FIATAGRI) | 3850 | OM-8361 SI 01 | 8.1 | 1985.04- | |
| LAVERDA (FIATAGRI) | 3890 | OM-8361 SI 10 | 8.1 | 1986.03- | |
| NEW HOLLAND (SPERRY NEW HOLL.) | 8000-SERIE | 8430 | 8065.25T | 5.9 | 1994.04- |
| NEW HOLLAND (SPERRY NEW HOLL.) | 8000-SERIE | 8630 | 8365.25T | 8.1 | 1994.04- |
| NEW HOLLAND (SPERRY NEW HOLL.) | 8000-SERIE | 8830 | 8365.25T | 8.1 | 1994.04- |
Mehr Informationen
| Gewicht (kg) | 11.261000 |
|---|---|
| Zustand | Neu |
| Die Spannung | 12 V |
| Die Leistung | 4.2 kW |
| Zähnezahl | 9 |
| Drehrichtung | Im Uhrzeigersinn |
| Bemerkungen | Mass terminal 31, With reduction gear |
