14V 33A (IA0507, MG517)
MAHLE Webkatalog
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Haben Sie Fragen?
161 € 127 €
Verfügbar in 2-3 Werktagen i Unser Lieferant hat diesen Artikel auf Lager, den wir innerhalb der vorgegebenen Zeit besorgen können. Bestellungen, die außerhalb der Geschäftszeiten aufgegeben werden, werden am nächsten Werktag bearbeitet.
Versandkostenrechner
Bestellschlusszeit:
GLS: 15:00 / UPS: 12:30

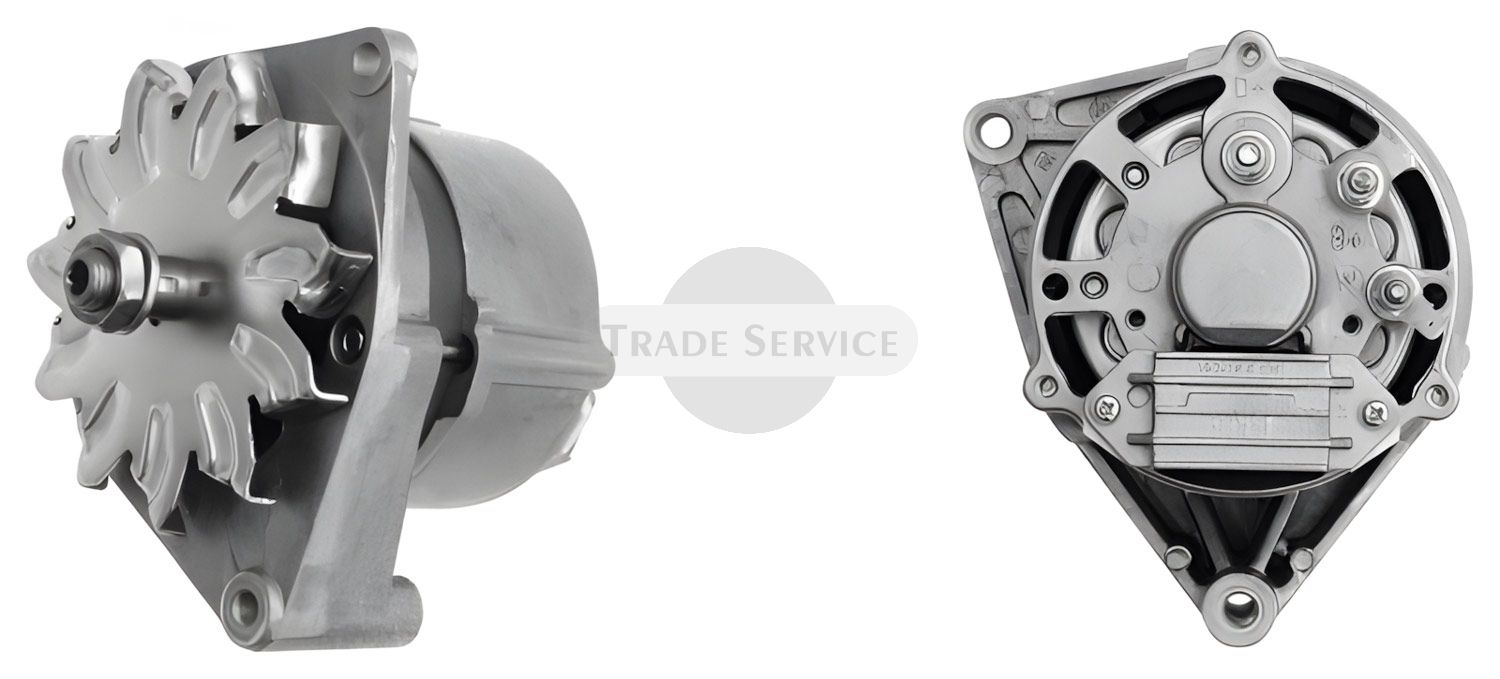

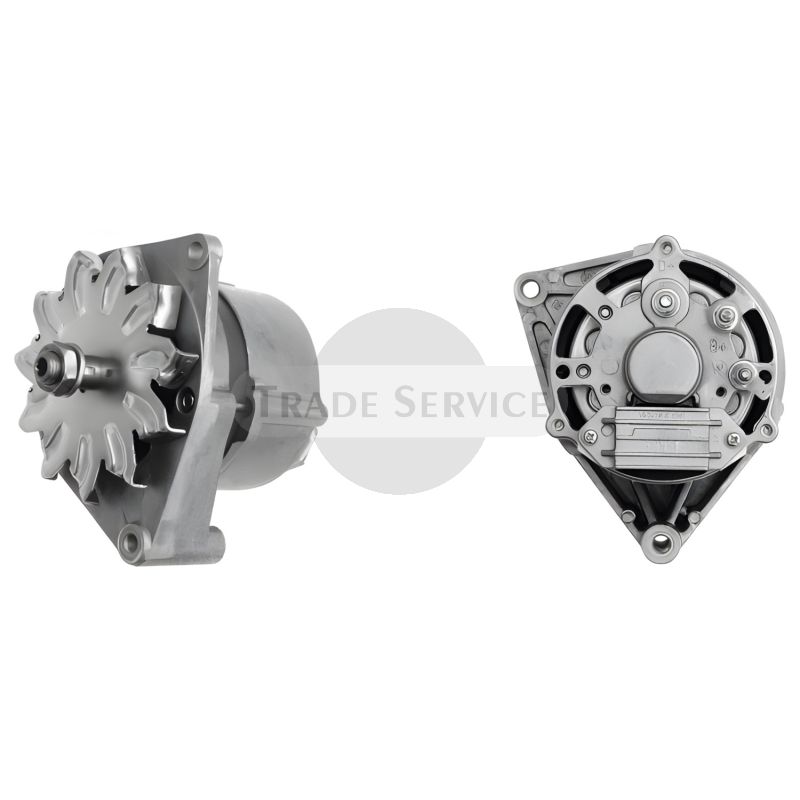

11.209.643 AAG1366 MG517 MAHLE (Letrika, Iskra) Generator (11209643)
Ähnliche Produkte
Wir haben andere Produkte gefunden, die Ihnen gefallen könnten!
-
11.201.507 AAG1341 MG517 MAHLE (Letrika, Iskra) Generator (11201507)14V 33A (IA0507, MG517)
Information
11.209.643 AAG1366 MG517 MAHLE (Letrika, Iskra) Generator (11209643) ist ein zuverlässiges Ersatzteil, das häufig bei AGRIFULL, ARONA, BERTOLINI, CASE, EUROMACCHINE, FENDT, FERRARI, GOLDONI, HANOMAG, IH (INTERNATIONAL HARV.), ISOTTA FRASCHINI, ITMA TRATTORI, LOMBARDINI, MUZZI, PALMIERI, VALPADANA, VM MOTORI Motoren verwendet wird.
Genaue Modelle und Referenznummern finden Sie in den Listen unten.
Falls Sie Fragen zu diesem Produkt haben oder Hilfe bei der Suche nach dem richtigen Ersatzteil benötigen, können Sie sich gerne an uns wenden!
Wir sind hier, um Ihnen zu helfen, Ihr Geschäft am Laufen zu halten.
Referenznummern
| AGCO | C000900010110 |
|---|---|
| BOSCH | 0120339536, 0986030140 |
| CASE | 3218577EX, 3218577R91 |
| CLAAS | 6005706654 |
| CNH / FIAT AGRI | B506371 |
| DELCO REMY | DRA0140 |
| DEUTZ AG (KHD) | 12153766, 12850799 |
| FENDT | X830060010 |
| HELLA | 8EL015643531, 8EL725899001, CA616IR |
| LESTER | 14951 |
| LUCAS | LRA00611 |
| MAGNETI MARELLI | MAR837 |
| MAHLE (Letrika, Iskra) | IA0507, 11209643, AAG1366, MG517, 11201507, AAG1341 |
| MWM-DIESEL | 605710100130 |
| NIKKO | 3218577EX, 3218577R91 |
| SPAREX | 36157 |
| STEINBOCK | 026205, 4570459 |
| ZETTELMEYER | 43731945 |
Kompatibilität
| Hersteller | Modell | Typ | Motor | Leistung | Baujahr |
|---|---|---|---|---|---|
| AGRIFULL | 90 | Serie (Turbo) | VM1054SU | 4.9 | 1983.08- |
| ARONA | AD | 182L | 1-cyl; 7.5HP | 0.4 | 1983.09-1988.12 |
| ARONA | AD | 182M | 0.4 | 1983.09-1988.12 | |
| ARONA | AD | 185M | 1-cyl; 11HP | 0.4 | 1983.09-1988.12 |
| ARONA | AD | 195M | 1-cyl; 12HP | 0.7 | 1983.09-1988.12 |
| ARONA | AD | 290M | 2-cyl; 22HP | 1.2 | 1983.09-1988.12 |
| ARONA | AD | 295M | 2-cyl; 31HP | 1.4 | 1983.09-1988.12 |
| ARONA | AD | 395M | 3-cyl; 45HP | 2.0 | 1983.09-1988.12 |
| ARONA | AD | 4100M | 3.3 | 1982.09-1988.12 | |
| ARONA | AD | 952PM | 1.4 | 1983.09-1988.12 | |
| ARONA | AD | 953PM | 2.0 | 1983.09-1988.12 | |
| BERTOLINI | 2000 | DT | Lomb.-8LD665.2 | 1.9 | 1990.01- |
| BERTOLINI | 628 | Lomb.-8LD600.2 | 1.2 | 1987.06- | |
| BERTOLINI | 730 | Lomb.-8LD600.2 | 1.3 | 1987.06- | |
| BERTOLINI | 740 | Lomb.-11LD625.3 | 1.9 | 1987.06- | |
| CASE | E-SERIE | 833.A | D-239 | 3.9 | 1986.01-1990.12 |
| CASE | FARM | 433. 433E | D-155; 35HP | 2.5 | 1975.01-1992.12 |
| CASE | FARM | 533.A. E | D-155. 45HP | 2.5 | 1979.01-1992.12 |
| CASE | FARM | 833. 833A. 833E | D-239; 67HP | 3.9 | 1981.09-1990.12 |
| CASE | V-SERIE | 433 | D-155 | 2.5 | 1986.01-1990.06 |
| CASE | V-SERIE | 533 | D-155 | 2.5 | 1986.01-1990.06 |
| EUROMACCHINE | PC MOTOR PUMPS | J5-180 | Lombardini 9LD 625-2; 22kW | 1.2 | - |
| FENDT | FARMER | 104S; A | MWM-D226-3; 55HP | 3.1 | 1978.12-1982.05 |
| FENDT | FARMER | 108S | MWM-D226-4; 65HP | 4.2 | 1974.01-1980.11 |
| FERRARI | 1100 | 9LD561 | 1.1 | 1985.12- | |
| FERRARI | 1300 | 8LD665.2 | 1.3 | 1985.12- | |
| FERRARI | 745 | LDA673 | 2.0 | 1980.06-1983.12 | |
| FERRARI | 76 | LDA673 | 2.0 | 1980.06-1984.12 | |
| FERRARI | 85 | LDA673 | 2.0 | 1980.06-1984.12 | |
| FERRARI | 86 | LDA833 | 2.5 | 1980.06- | |
| FERRARI | 93 | LT | 8LD665.2 | 1.3 | 1989.09-1991.10 |
| FERRARI | 93 | SLT | 11LD625.3 | 1.9 | 1989.09- |
| FERRARI | 94 | SLT | 11LD625.3 | 1.9 | 1989.09-1991.12 |
| FERRARI | 95 | RS | 11LD625.3 | 1.7 | 1988.11- |
| FERRARI | 95 | RS | 5LD825.2 | 1.9 | 1988.11- |
| FERRARI | 96 | 5LD824.3 | 2.7 | 1989.09- | |
| FERRARI | 96 | RS | 11LD625.3 | 1.9 | 1990.12- |
| GOLDONI | 1038 | Lomb.-5LD825.2 | 1.7 | 1982.03-1985.12 | |
| GOLDONI | 1038 | Lomb.-LDA832 | 1.6 | 1982.03-1985.12 | |
| GOLDONI | 238 | Lomb.-5LD825.2 | 1.6 | 1982.02- | |
| GOLDONI | 238 | Lomb.-LDA832 | 1.6 | 1982.02-1986.12 | |
| GOLDONI | 245 | Lomb.-11LD625.3 | 1.9 | 1989.01- | |
| GOLDONI | 3445 | Lomb.-11LD625.3 | 1.9 | 1988.10- | |
| GOLDONI | 40 | B | Lomb.-11LD535 | 1.6 | 1991.06- |
| GOLDONI | 45 | B | Lomb.-LDA832 | 1.6 | 1991.06-1991.12 |
| GOLDONI | 50 | B | Lomb.-11LD626.3 | 1.9 | 1991.06- |
| GOLDONI | 933 | DT | Lomb.-8LD665.2 | 1.3 | 1988.09- |
| GOLDONI | 938 | Lomb.-5LD825.2L | 1.3 | 1988.09-1990.04 | |
| GOLDONI | 945 | RS/DT | Lomb.-11LD625.3 | 1.9 | 1990.04- |
| GOLDONI | TRANSCAR | 25.RS | 12LD475 | 1.0 | 1990.11- |
| GOLDONI | TRANSCAR | 35 | 8LD665 | 1.0 | 1991.03- |
| GOLDONI | TRANSCAR | 50.RS | 11LD626 | 1.9 | 1990.11- |
| HANOMAG | 5 | C | Perkins 4.108 | 1.8 | 1980.07- |
| IH (INTERNATIONAL HARV.) | FARM | 433. 433V | D-155 | 2.5 | 1973.06-1985.12 |
| IH (INTERNATIONAL HARV.) | FARM | 533. 533V | D-155 | 2.5 | 1977.02-1985.12 |
| ISOTTA FRASCHINI | 1156 | DANS | 106 | 8.0 | 1983.09-1989.06 |
| ISOTTA FRASCHINI | 1156 | M12.8 | 81 | 8.0 | 1983.09-1989.06 |
| ITMA TRATTORI | 700 | VM1054SU | 3.8 | 1979.09-1984.12 | |
| LOMBARDINI | 10LD | 400.2/B1 | 0.8 | 1984.01- | |
| LOMBARDINI | 11LD | 535.3 | 1.6 | 1984.04- | |
| LOMBARDINI | 11LD | 625.3 | 1.9 | 1984.04- | |
| LOMBARDINI | 11LD | 626.3 | 1.9 | 1984.04- | |
| LOMBARDINI | 12LD | 435.2 | 0.9 | 1987.06- | |
| LOMBARDINI | 12LD | 435.2/B1 | 0.9 | 1987.06- | |
| LOMBARDINI | 12LD | 475 | 1.0 | 1986.12- | |
| LOMBARDINI | 5LD | 675.2 | 1.3 | 1969.01-1990.12 | |
| LOMBARDINI | 5LD | 675.3 | 2.0 | 1969.01-1990.12 | |
| LOMBARDINI | 5LD | 825.2L | 1.7 | 1986.11- | |
| LOMBARDINI | 5LD | 825.3.L | 2.5 | 1986.11- | |
| LOMBARDINI | 5LD | 825.3T | 2.7 | 1987.01- | |
| LOMBARDINI | 5LD | 825.4 | 3.0 | 1986.11- | |
| LOMBARDINI | 5LD | 825.4L | 3.3 | 1986.11- | |
| LOMBARDINI | 5LD | 930.3 | 2.8 | 1983.04- | |
| LOMBARDINI | 5LD | 930.3L | 2.8 | 1984.01-1984.12 | |
| LOMBARDINI | 5LD | 930.4 | 3.7 | 1983.04- | |
| LOMBARDINI | 5LD | 930.4L | 3.7 | 1983.04-1984.12 | |
| LOMBARDINI | 832 | - | 1.7 | 1982.02- | |
| LOMBARDINI | 833 | - | 2.7 | 1982.02- | |
| LOMBARDINI | 834 | - | 3.3 | 1982.02- | |
| LOMBARDINI | 8LD | 740.2 | 0.7 | 1988.01- | |
| LOMBARDINI | 904 | - | 1.2 | 1988.01- | |
| LOMBARDINI | 914 | - | 1.3 | 1988.01- | |
| LOMBARDINI | 9LD | 561.2 | 2W.2L | 1.1 | 1988.01- |
| LOMBARDINI | 9LD | 625.2 | 1.2 | 1988.01- | |
| LOMBARDINI | L | 20 | 8LD665.2L | 1.3 | 1975.03- |
| LOMBARDINI | L | 27 | 5LD825.2L | 1.7 | 1975.03-1986.11 |
| LOMBARDINI | L | 40 | 5LD825.3L | 2.5 | 1975.03-1986.11 |
| LOMBARDINI | L | 54 | 5LD825.4L | 3.3 | 1975.03-1986.11 |
| LOMBARDINI | LDA | 672 | 1.4 | 1977.05-1979.12 | |
| LOMBARDINI | LDA | 673 | 2.0 | 1977.05-1979.12 | |
| LOMBARDINI | LDA | 674 | 2.7 | 1977.05-1981.12 | |
| LOMBARDINI | LDA | 832 | 1.6 | 1982.02-1986.11 | |
| LOMBARDINI | LDA | 833 | 5LD825.3 | 2.5 | 1982.02-1986.11 |
| LOMBARDINI | LDA | 834 | 5LD825.4 | 3.3 | 1982.02-1986.11 |
| LOMBARDINI | LDAL | 672 | 1.4 | 1977.05-1979.12 | |
| LOMBARDINI | LDAL | 673 | 2.0 | 1977.05-1979.12 | |
| LOMBARDINI | LDAL | 674 | 2.7 | 1977.05-1978.12 | |
| MUZZI | MD | 40 | VM-SUN4105 | 3.9 | 1989.01- |
| MUZZI | MD | 60 | VM-SUN6105 | 6.0 | 1984.01-1988.12 |
| MUZZI | MDS | 66 | VM6105 | 1989.01- | |
| MUZZI | MDV | 95 | VM6105T | 4.0 | 1989.01- |
| PALMIERI | 1500 GN | 110T | VM-T1156DANS | 8.0 | 1983.08-1985.02 |
| PALMIERI | 1500 GN | 80 | VM1156DANS | 5.3 | 1983.08-1985.02 |
| PALMIERI | 1500 GN | 95T | VM-T1156DANS | 8.0 | 1983.08-1985.02 |
| PALMIERI | 1800 GN | 90 | VM1156DANS | 5.3 | 1983.08-1985.02 |
| VALPADANA | 2530 | Lomb.-914 | 1.3 | 1990.01- | |
| VALPADANA | 2536 | Lomb.-11LD625.3 | 1.9 | 1990.01- | |
| VALPADANA | 2540 | Lomb.-11LD626.3 | 1.9 | 1990.01- | |
| VALPADANA | 3030 | Lomb.-LDA914 | 1.3 | 1990.01- | |
| VALPADANA | 4033 | DT | Lomb.-914 | 1.3 | 1984.05-1989.12 |
| VALPADANA | 4040 | Lomb.-11LD625.3 | 1.9 | 1987.01- | |
| VALPADANA | 6000 | Lomb.-LDA673 | 2.0 | 1984.06-1989.12 | |
| VALPADANA | 6000 | Lomb.-LDA832 | 1.6 | 1984.06-1989.12 | |
| VALPADANA | 6000 | Lomb.-LDA833 | 2.5 | 1984.06-1989.12 | |
| VALPADANA | 6000 | DT | Lomb.-LDA673 | 2.0 | 1984.06-1989.12 |
| VALPADANA | 6000 | DT | Lomb.-LDA832 | 1.6 | 1984.06-1986.12 |
| VALPADANA | 6000 | DT | Lomb.-LDA833 | 2.5 | 1984.06-1989.12 |
| VALPADANA | 6000 | RS/DT | Lomb.-5LD930.3 | 2.8 | 1990.01- |
| VALPADANA | 6000 | ST | Lomb.-LDA673 | 2.0 | 1984.06-1989.12 |
| VALPADANA | 6000 | ST | Lomb.-LDA832 | 1.6 | 1984.06-1989.12 |
| VALPADANA | 6000 | ST | Lomb.-LDA833 | 2.5 | 1984.06-1989.12 |
| VALPADANA | 6040 | Lomb.-LDA832 | 1.6 | 1983.09-1989.12 | |
| VALPADANA | 6040 | RSD/DT | Lomb.-11LD626.3 | 1.9 | 1990.01- |
| VALPADANA | 6042 | RS/DT | Lomb.-11LD626.3 | 1.9 | 1990.01- |
| VALPADANA | 6045 | RS | Lomb.-LDA673 | 2.0 | 1983.09-1987.05 |
| VALPADANA | 6050 | Lomb.-5LD825.3 | 2.5 | 1988.01-1989.12 | |
| VALPADANA | 6050 | RS | Lomb.-5LD824.3 | 2.5 | 1990.01- |
| VALPADANA | 6055 | DT | Lomb.-833 | 2.7 | 1983.09-1987.06 |
| VALPADANA | 6055 | RS | Lomb.-LDA833 | 2.5 | 1983.09-1987.05 |
| VALPADANA | 6060 | RS | Lomb.-5LD930.3 | 2.8 | 1987.06- |
| VALPADANA | 7060 | Lomb.-833 | 2.7 | 1983.09-1987.12 | |
| VALPADANA | 7070 | Lomb.-5LD930.4 | 3.7 | 1988.01-1990.12 | |
| VALPADANA | 7070 | Lomb.-834 | 3.3 | 1983.09-1987.12 | |
| VALPADANA | 8080 | RS | Lomb.-5LD930.4 | 3.7 | 1990.01- |
| VALPADANA | 8080 | RS | Lomb.-834 | 3.3 | 1988.07-1989.12 |
| VM MOTORI | 104 | M11 | 3.5 | 1982.06-1985.12 | |
| VM MOTORI | 1054 | M11 | 3.8 | 1982.06-1985.12 | |
| VM MOTORI | 1054 | SU | 3.8 | 1982.06-1986.01 | |
| VM MOTORI | 1056 | M11 | 5.7 | 1983.08-1985.12 | |
| VM MOTORI | 1056 | SU | 5.7 | 1982.06-1986.01 | |
| VM MOTORI | 106 | M11 | 5.2 | 1983.08-1985.12 | |
| VM MOTORI | 106 | MH11 | 5.2 | 1983.08-1985.12 | |
| VM MOTORI | 1154M | - | 5.3 | - | |
| VM MOTORI | 32.5 KVA | 1054SU | 1982.06-1986.01 | ||
| VM MOTORI | 4105 | - | 4.0 | 1984.01- | |
| VM MOTORI | 4105 | M | 4.0 | 1986.01- | |
| VM MOTORI | 4105 | T | 4.0 | 1984.01- | |
| VM MOTORI | 5 KVA | HR192A | 1982.06-1985.06 | ||
| VM MOTORI | 50 KVA | 1056SU | 1983.08-1986.01 | ||
| VM MOTORI | 60 KVA | 1056SU | 1983.08-1986.01 | ||
| VM MOTORI | 60 KVA | T1056SU | 1983.08-1986.01 | ||
| VM MOTORI | 6105 | - | 6.0 | 1984.01- | |
| VM MOTORI | 6105 | M | 6.0 | 1986.01- | |
| VM MOTORI | 6105 | T | 6.0 | 1984.01- | |
| VM MOTORI | 70 KVA | T1056SU | 5.7 | 1976.01-1986.01 | |
| VM MOTORI | HR | 192A | 0.6 | 1982.06-1985.06 | |
| VM MOTORI | HR | 294 HP | 1.4 | 1986.09-1990.12 | |
| VM MOTORI | T | 1054SU | 3.8 | 1982.06-1986.01 | |
| VM MOTORI | T | 1056SU | 5.7 | 1983.08-1986.01 |
Mehr Informationen
| Gewicht (kg) | 3.540000 |
|---|---|
| Zustand | Neu |
| Die Spannung | 14 V |
| Stromstärke | 33 A |
| Drehrichtung | N/A |
| Bemerkungen | Dust-proof |
