24V 4.0kW z9 (IS0490, MS186)
MAHLE Webkatalog
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Haben Sie Fragen?
415 € 327 €
Verfügbar in 2-3 Werktagen i Unser Lieferant hat diesen Artikel auf Lager, den wir innerhalb der vorgegebenen Zeit besorgen können. Bestellungen, die außerhalb der Geschäftszeiten aufgegeben werden, werden am nächsten Werktag bearbeitet.
Versandkostenrechner
Bestellschlusszeit:
GLS: 15:00 / UPS: 12:30

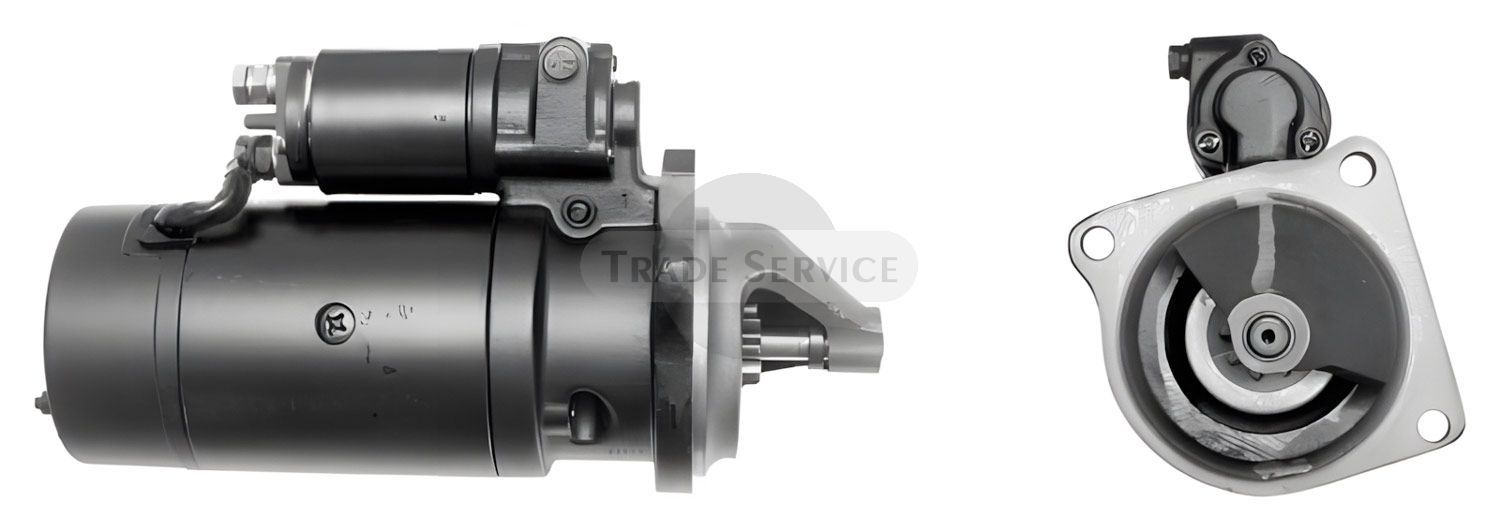

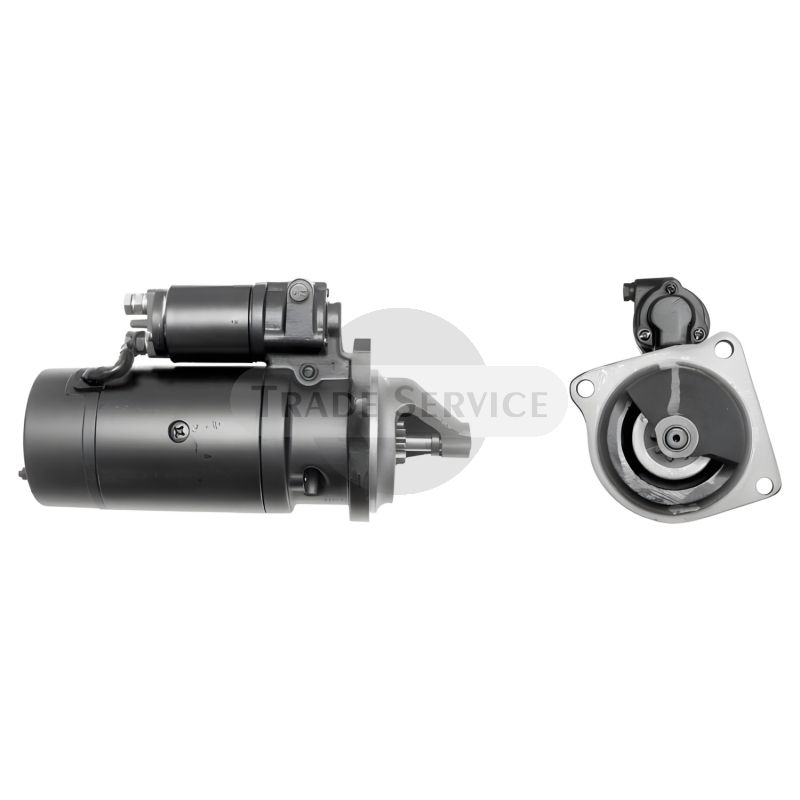

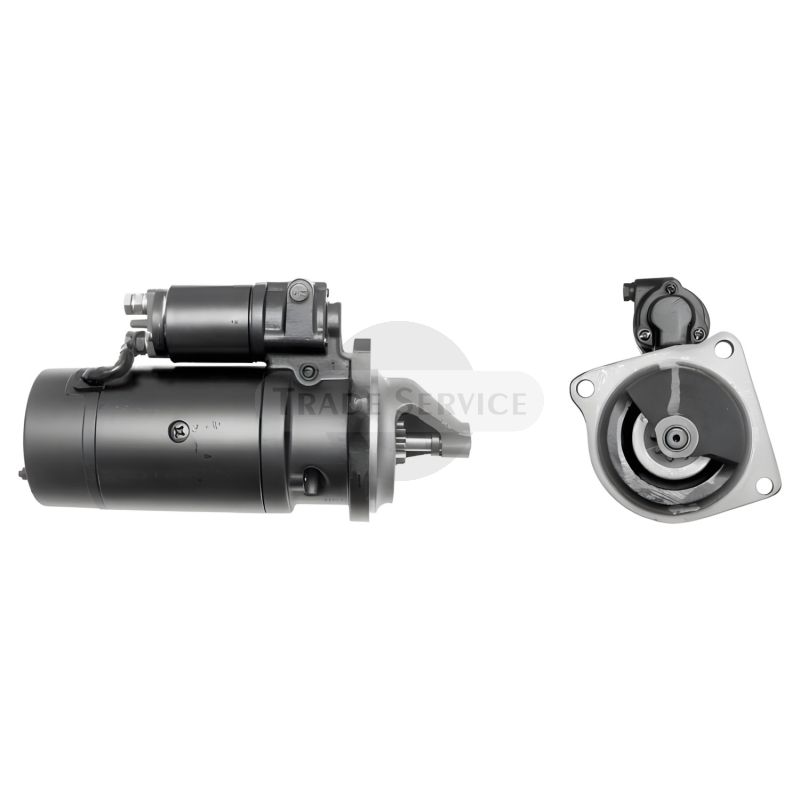

11.130.490 AZJ3131 MS186 MAHLE (Letrika, Iskra) Anlasser (11130490)
Ähnliche Produkte
Wir haben andere Produkte gefunden, die Ihnen gefallen könnten!
-
860817 Prestolite Anlasser24V 4.0kW z9 -
11.139.454 MAHLE (Letrika, Iskra) Anlasser (11139454)24V 4.0 kW z9 (IS9446)
Referenznummern
| BOSCH | 0001360063, 0001368020, 0986011330, 0986011331 |
|---|---|
| EFEL | 11430 |
| FIAT | 4706008, 4716026, 4716062, 4737756, 4755111, 4807379, 77050262, 77050562 |
| HELLA | 8EA726142001, CS394 |
| IVECO | 4737756, 4807379, 5001018587 |
| LESTER | 18033, 18093 |
| LUCAS | LRS00841 |
| MAGNETI MARELLI | 30281020, 63216740, 63216741, 943252228, MSN521, MT67C, MT67CA, MT67CB |
| MAHLE (Letrika, Iskra) | IS0490, 11130490, AZJ3131, MS186, 11130124, AZJ3515 |
| PRESTOLITE | 859542 |
| SPAREX | 36127 |
| VALEO | 455518 |
Kompatibilität
| Hersteller | Modell | Typ | Motor | Leistung | Baujahr |
|---|---|---|---|---|---|
| AIFO | 8361 | .05.500 | 160PS | 8.1 | 1980.03-1983.06 |
| AIFO | 8361 | .25.500 | 175PS | 8.1 | 1980.03-1983.06 |
| AIFO | 8361 | 05.530 | 8.1 | 1978.01-1983.12 | |
| ASTRA | BM | 201 | OM-8360.05.200 | 8.0 | 1980.03- |
| ASTRA | BM | 201 | OM-8360.05.300 | 8.0 | 1979.06- |
| ASTRA | BM | 44D12R | OM-8360.05.200 | 8.1 | 1991.04- |
| BENFRA | 10 | CH | Aifo-8361I000 | 8.1 | 1982.01-1983.12 |
| BENFRA | 10 | CH | Aifo-8361I01 | 8.1 | 1984.01-1985.06 |
| BENFRA | 9.11 | Aifo-8361SI000 | 8.1 | 1985.09-1987.12 | |
| BENFRA | 9.11 | Aifo-8361SI10.00 | 5.9 | 1988.01-1991.06 | |
| BENFRA | 9.12 | Aifo-8361SI10.00 | 5.9 | 1990.01- | |
| BENFRA | 9.32 | Aifo-8361SI10.00 | 5.9 | 1990.01- | |
| FIAT | 110 | NC | OM-8360.04.200 | 6.9 | 1978.05-1981.12 |
| FIAT | 130 | NC | OM-8360.04.300 | 6.9 | 1978.05-1984.07 |
| FIAT | 130 | NC.NR.NT20 | 8220.02 | 9.6 | 1979.08-1980.05 |
| FIAT | 130 | NC14.NT14 | OM-8360.04.200 | 6.9 | 1978.05-1984.07 |
| FIAT | 150 | NC.NT20 | 8220.02. | 9.6 | 1976.01-1980.05 |
| FIAT | 150 | NC17 | 8360.03. | 8.1 | 1976.01-1979.12 |
| FIAT | 159 | .17 | OM-8360.05.254 | 8.1 | 1977.03-1982.07 |
| FIAT | 160 | .26 | 8210.02.020 | 13.8 | 1980.01-1982.10 |
| FIAT | 50 | F10 | OM-8340.04.250 | 4.6 | 1978.04-1982.12 |
| FIAT | 540 | .DT | 8035.02.302 | 2.6 | 1972.03-1978.06 |
| FIAT | 55 | F9 | 8340.04. | 4.6 | 1977.06-1979.12 |
| FIAT | 60 | F10 | OM-8340.04.250 | 4.6 | 1979.01-1982.12 |
| FIAT | 65 | F10 | OM-8340.04.200 | 4.6 | 1978.04-1980.10 |
| FIAT | 70 | F10 | 8340.04.250 | 4.6 | 1978.04-1980.10 |
| FIAT | 75 | F10 | 8340.04. | 4.6 | 1978.04-1980.06 |
| FIAT | 79 | F10 | OM-8340.04.200.250 | 4.6 | 1979.06-1982.12 |
| FIAT (BR) | 129 | 16 | 8360.05.B | 8.1 | 1979.01-1982.06 |
| FIAT (BR) | 130 | CP3 | 7.4 | 1979.01-1982.12 | |
| FIAT-ALLIS | 645 | B | 8361.05.500 | 8.1 | 1980.12-1982.12 |
| IVECO | 100 | E15 | Fiat-8060.25R.4200 | 6.0 | 1991.01- |
| IVECO | 100 | E18 | Fiat-8060.25V.4000 | 6.0 | 1991.01- |
| IVECO | 100 | E21 | Fiat-8060.45.4100 | 6.0 | 1991.01- |
| IVECO | 100 | E21 | Fiat-8060.45.4180 | 6.0 | 1992.01- |
| IVECO | 110 | 17W | Fiat-8060.24.678 | 5.5 | 1983.09-1984.12 |
| IVECO | 110 | 17W | Fiat-8060.25.678 | 5.9 | 1987.07- |
| IVECO | 115 | 14 | Fiat-8060.04.630 | 5.5 | 1983.09-1985.10 |
| IVECO | 115 | 14 | Fiat-8060.05.200 | 5.9 | 1985.11-1991.12 |
| IVECO | 115 | 17 | Fiat-8060.24.601 | 5.5 | 1983.09-1985.12 |
| IVECO | 115 | 17 | Fiat-8060.25.600 | 5.9 | 1986.01- |
| IVECO | 120 | E15 | Fiat-8060.25R.4280 | 6.0 | 1991.12- |
| IVECO | 120 | E18 | Fiat-8060.25V.4080 | 6.0 | 1991.09- |
| IVECO | 120 | E23 | Fiat-8060.45.6090 | 6.0 | 1992.02- |
| IVECO | 120 | E23 | Fiat-8060.45S.6800 | 6.0 | 1991.10- |
| IVECO | 130 | E15 | Fiat-8060.25R.4280 | 6.0 | 1992.02- |
| IVECO | 130 | E18 | Fiat-8060.25V.4080 | 6.0 | 1991.11- |
| IVECO | 130 | E23 | Fiat-8060.45.6090 | 6.0 | 1992.04- |
| IVECO | 130 | E23 | Fiat-8060.45S.6000 | 6.0 | 1991.11- |
| IVECO | 135 | 14 | Fiat-8060.04.630 | 5.5 | 1983.09-1985.10 |
| IVECO | 135 | 14 | Fiat-8060.05.200 | 5.9 | 1985.11-1991.12 |
| IVECO | 135 | 17 | Fiat-8060.24.601 | 5.5 | 1983.09-1985.12 |
| IVECO | 135 | 17 | Fiat-8060.25.600 | 5.9 | 1986.01- |
| IVECO | 145 | 17 | Fiat-8060.25.600 | 5.9 | 1986.02- |
| IVECO | 150 | 17 | OM-8360.05.200 | 8.1 | 1982.07-1984.10 |
| IVECO | 150 | E15 | Fiat-8060.25R.4280 | 6.0 | 1991.12- |
| IVECO | 150 | E18 | Fiat-8060.25V.4080 | 6.0 | 1991.09- |
| IVECO | 150 | E23 | Fiat-8060.45.6090 | 6.0 | 1992.02- |
| IVECO | 150 | E23 | Fiat-8060.45S.6800 | 6.0 | 1991.10- |
| IVECO | 159 | 17 | OM-8360.05.254 | 8.1 | 1982.07-1986.09 |
| IVECO | 175 | 17 | Fiat-8060.25.600 | 5.9 | 1986.09- |
| IVECO | 180 | E21 | Fiat-8060.45.4100 | 6.0 | 1992.04- |
| IVECO | 260 | E23T | Fiat-8060.45S.6700 | 6.0 | 1991.12- |
| IVECO | 280 | E23T | Fiat-8060.45S.6700 | 6.0 | 1991.12- |
| IVECO | 50 | 10 | OM-8340.04.200.250 | 4.6 | 1979.01-1983.10 |
| IVECO | 50 | 10 | OM-8340.04.300.362 | 4.6 | 1979.01-1983.10 |
| IVECO | 60 | 10 | OM-8340.04.200.250 | 4.6 | 1982.05-1987.01 |
| IVECO | 65 | 10 | 8340.04.300.362 | 4.6 | 1982.05-1987.01 |
| IVECO | 65 | 10 | OM-8340.04.200.250 | 4.6 | 1983.01-1984.09 |
| IVECO | 75 | E15 | Fiat-8060.25R.4200 | 6.0 | 1991.01-1992.12 |
| IVECO | 79 | 10 | OM-8340.04.200.300 | 4.6 | 1983.01-1987.01 |
| IVECO | 79 | 14 | Fiat-8060.05.280 | 5.9 | 1988.07-1992.12 |
| IVECO | 79 | 14S | Fiat-8060.05 | 5.9 | 1988.12-1992.12 |
| IVECO | 80 | E15 | Fiat-8060.25R.4200 | 6.0 | 1991.01- |
| IVECO | 80 | E18 | Fiat-8060.25V.4000 | 6.0 | 1991.01- |
| IVECO | 80 | E21 | Fiat-8060.45.4100 | 6.0 | 1991.01- |
| IVECO | 80 | E21 | Fiat-8060.45.4180 | 6.0 | 1991.01- |
| IVECO | A | 55-10 | OM-8340.04.300 | 4.6 | 1982.05-1987.07 |
| IVECO | A | 55-13 | Fiat-8060.04.658 | 5.5 | 1979.12-1988.12 |
| IVECO | A | 55-14 | Fiat-8060.05.246 | 5.9 | 1988.12-1991.12 |
| IVECO | A | 60-10 | OM-8340.04.040 | 4.6 | 1979.11-1988.06 |
| IVECO | A | 70-12 | OM-8340.05.200 | 5.4 | 1983.01-1985.01 |
| IVECO | A | 70-14 | Fiat-8060.05.246 | 5.9 | 1988.05-1991.06 |
| IVECO | A | 79-14 | Fiat-8060.05.285 | 5.9 | 1988.07-1993.12 |
| IVECO | A | 90-14 | Fiat-8060.05.246 | 5.9 | 1988.05-1991.06 |
| IVECO | OM-8360 | 05.200 | 8.1 | 1983.06-1990.12 | |
| IVECO | OM-8361 | 05.500 | 8.1 | 1983.06- | |
| IVECO | OM-8361 | 05.501 | 8.1 | 1984.01- | |
| IVECO | OM-8361 | 25.500 | 8.1 | 1983.06-1985.12 | |
| IVECO | OM-8361 | 25.501 | 8.1 | 1984.01-1985.12 | |
| IVECO | OM-8361 | 25.510 | 8.1 | 1984.05- | |
| IVECO | OM-8361 | 25.511 | 8.1 | 1986.04- | |
| IVECO | OM-8361 | SI 10.00 | 8.1 | 1990.01- | |
| IVECO | OM-8361 | SRI | 8.1 | 1990.06- | |
| IVECO | OM-8361 | SRI 26 | 8.1 | 1989.12- | |
| IVECO | OM-8361 | SRI 26.00 | 8.1 | 1989.12- | |
| OM (BRESCIA) | 50 | NC10 | 8340.04 | 4.6 | 1977.09-1982.12 |
| OM (BRESCIA) | 50 | OM10 | 8340.04.250 | 4.6 | 1977.07-1982.12 |
| OM (BRESCIA) | 50 | OM10 | 8340.04.352 | 4.6 | 1977.07-1980.12 |
| OM (BRESCIA) | 50 | OM10 | 8340.04.362 | 4.6 | 1977.07-1982.12 |
| OM (BRESCIA) | 55 | NC10 | 8340.04 | 4.6 | 1977.09-1979.12 |
| OM (BRESCIA) | 55 | OM10 | 8340.04.250 | 4.6 | 1977.07-1982.12 |
| OM (BRESCIA) | 55 | OM10 | 8340.04.352 | 4.6 | 1977.07-1980.12 |
| OM (BRESCIA) | 55 | OM10 | 8340.04.362 | 4.6 | 1977.07-1982.12 |
| OM (BRESCIA) | 65 | NC10 | 8340.04 | 4.6 | 1977.09-1982.12 |
| OM (BRESCIA) | 65 | OM10 | 8340.04.250 | 4.6 | 1977.07-1982.05 |
| OM (BRESCIA) | 65 | OM10 | 8340.04.352 | 4.6 | 1977.07-1980.12 |
| OM (BRESCIA) | 65 | OM10 | 8340.04.362 | 4.6 | 1977.07-1980.12 |
| OM (BRESCIA) | 70 | OM10 | 8340.04.250 | 4.6 | 1977.07-1982.05 |
| OM (BRESCIA) | 70 | OM10 | 8340.04.352 | 4.6 | 1977.07-1980.12 |
| OM (BRESCIA) | 70 | OM10 | 8340.04.362 | 4.6 | 1977.07-1980.12 |
| OM (BRESCIA) | 75 | NC10 | 8340.04 | 4.6 | 1977.09-1980.12 |
| OM (BRESCIA) | 75 | OM10 | 8340.04.250 | 4.6 | 1977.07-1982.05 |
| OM (BRESCIA) | 75 | OM10 | 8340.04.352 | 4.6 | 1977.07-1980.12 |
| OM (BRESCIA) | 75 | OM10 | 8340.04.362 | 4.6 | 1977.07-1980.12 |
| ZASTAVA | 635 | - | - | ||
| ZASTAVA | 640 | - | - | ||
| ZASTAVA | 645 | - | - | ||
| ZASTAVA | 650 | - | - |
Mehr Informationen
| Gewicht (kg) | 14.499000 |
|---|---|
| Zustand | Neu |
| Die Spannung | 24 V |
| Die Leistung | 4.0 kW |
| Zähnezahl | 9 |
| Drehrichtung | Im Uhrzeigersinn |
| Bemerkungen | Mass terminal 31 |
