24V 5.4kW z11 (IS9016, MS507)
MAHLE Webkatalog
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Haben Sie Fragen?
Dieses Produkt ist zur Zeit leider nicht auf Lager.
Über den Preis und Erreichbarkeit des Produkts, bitte erkundigen Sie sich bei unseren Mitarbeitern.
Über den Preis und Erreichbarkeit des Produkts, bitte erkundigen Sie sich bei unseren Mitarbeitern.
Nicht auf Lager i Über den Preis und Erreichbarkeit des Produkts, bitte erkundigen Sie sich bei unseren Mitarbeitern.
Bestellschlusszeit:
GLS: 15:00 / UPS: 12:30

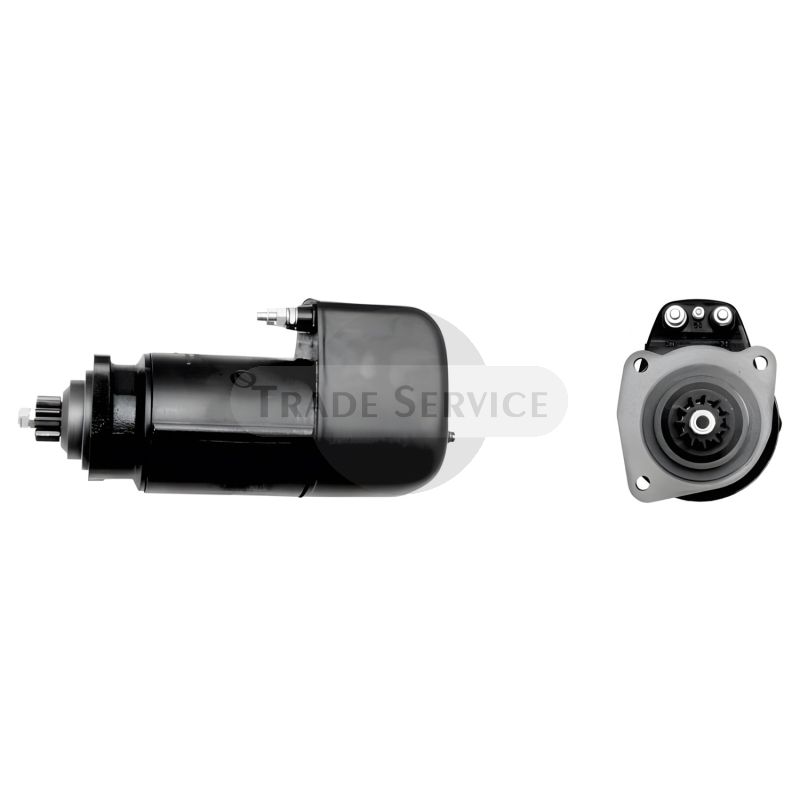

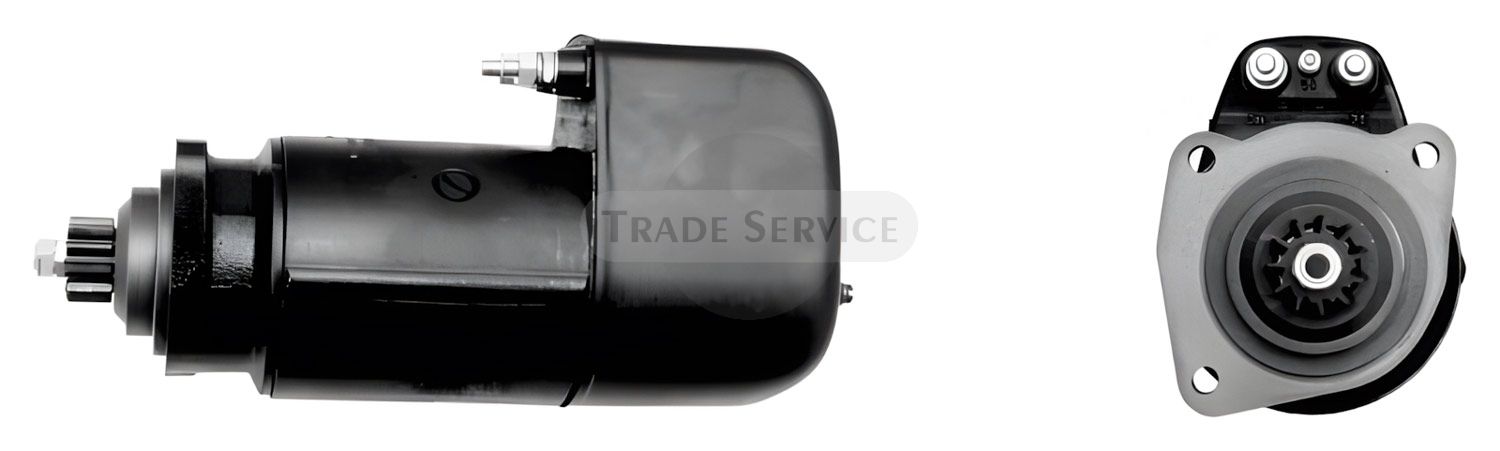

11.139.016 AZK5175 MS507 MAHLE (Letrika, Iskra) Anlasser (11139016)
Ähnliche Produkte
Wir haben andere Produkte gefunden, die Ihnen gefallen könnten!
-
11.139.512 AZK5550 MS672 MAHLE (Letrika, Iskra) Anlasser (11139512)561 € 442 €24V 5.4kW z11 (IS9016, MS672) -
-
860519 Prestolite Anlasser24V 6.6kW z10 -
11.139.128 AZK5477 MS545 MAHLE (Letrika, Iskra) Anlasser (11139128)358 € 282 €24V 5.4kW z11 (IS9115, MS545)
Referenznummern
| AVF (REMY) | IM325, IM350, IM509, IM521 |
|---|---|
| BOSCH | 0001402040, 0001410044, 0001411016, 0001414008, 0001415016, 0001416009, 0001416021, 0986012740, 0986013260 |
| DAF | 636306 |
| DELCO REMY | 19024110, DRS0316, DRS3260 |
| DEUTZ AG (KHD) | 01161280, D2R24X6H7622 |
| EFEL | 08790, 22606 |
| ELMOT | 6110000, R2311 |
| FIAT | 61227993 |
| HELLA | 8EA726154001, 8EA730226001, CS506, CS710 |
| LESTER | 18253 |
| LIEBHERR | 6000733 |
| LUCAS | LRS00860, LRS02178 |
| MAGNETI MARELLI | 943252190, MSR690 |
| MAHLE (Letrika, Iskra) | IS9016, 11139512, AZK5550, MS672, 11139075, AZK5429, 11139016, AZK5175, MS507, 11130601, AZL3653 |
| MAN | 51262017034, 51262017048, 51262017100, 51262019034 |
| MERCEDES-BENZ | 0011512901 |
| PRESTOLITE | 860504GB, 860519, 860519GB |
| REAL | 20401241, 20401251 |
| RENAULT | 5000270909 |
| SAVIEM | 5000270909 |
| STEYR | 81500090049 |
| UNIC | 000227993, 061227993, 061662550 |
| VALEO | 458340 |
| VOLVO | 11030906, 11129121, 11139128, 240504, 465929, 5001683, 5003027 |
Kompatibilität
| Hersteller | Modell | Typ | Motor | Leistung | Baujahr |
|---|---|---|---|---|---|
| AIFO | M | 32S | 5.4 | 1980.07-1983.05 | |
| AIFO | M | 32SD | 4.5 | 1980.07-1983.05 | |
| AIFO | M | 42S | 8.1 | 1980.07-1983.05 | |
| AIFO | M | 52S | 6.7 | 1980.07-1983.05 | |
| AIFO | M | 62S | 10.8 | 1980.07-1983.05 | |
| AIFO | MZ | 42S-OM | 8.1 | 1980.07-1983.05 | |
| FIAT | 190 | Unic-V85S | 15.0 | 1972.02-1982.10 | |
| FIAT | 190 | UnicV85S | 15.0 | 1972.02-1982.10 | |
| FIAT | 260 | UnicV85S | 14.9 | 1972.02-1982.10 | |
| HANOMAG (RHEINSTAHL) | K | 12C | D562 | 8.2 | 1972.07-1973.05 |
| MAN | 20 t | 22.304FVS.FN | D2858MX-090 | 15.4 | 1971.05-1973.12 |
| MAN | 22 t | 22.304FVS.FN | D2858MX-090 | 15.4 | 1971.05-1973.12 |
| MAN | 26 t | 26.304DF.DFK.DFKA.DFS | D2858MX-090 | 15.4 | 1971.05-1973.12 |
| MAN | 30 t | 30.304DFSA | D2858MX-090 | 15.4 | 1971.05-1973.12 |
| MAN | D2148 | M | 12.9 | 1965.01-1974.12 | |
| MAN | D2148 | MT | 12.9 | 1965.01-1974.12 | |
| OM (BRESCIA) | 150 | -3AC.N.L | Unic-L63S/24 | 8.9 | 1971.01-1981.12 |
| OM (BRESCIA) | 150 | 3AC.N.L.T | Unic-L63S/24 | 8.9 | 1971.01-1981.12 |
| OM (BRESCIA) | 150 | C.N.L.T | Unic-L63S/24 | 8.9 | 1971.01-1981.12 |
| OM (BRESCIA) | 190 | C.L.N.T | Unic-V85S/4 | 14.8 | 1973.01-1981.12 |
| OM (BRESCIA) | 260 | -4AN.L | Unic-V85S/4 | 14.8 | 1973.01-1981.12 |
| OM (BRESCIA) | 260 | -4AN.L.C.N.T | Unic-V85S/4 | 14.8 | 1973.01-1981.12 |
| OM (BRESCIA) | 260 | C.N.T | Unic-V85S/4 | 14.8 | 1973.01-1981.12 |
| SAVIEM | SM | 280TU | MAN-D2658M4 | 15.0 | 1971.01-1976.12 |
| SAVIEM | SM | 280TU | MAN-D2658M4 | 15.0 | 1971.01-1976.12 |
| SAVIEM | SM | 300.T | MAN-D2658M41 | 15.0 | 1971.01-1976.12 |
| SAVIEM | SM | 300.T | MAN-D2658M41 | 15.0 | 1971.01-1976.12 |
| SAVIEM | SM | 320 | MAN-D2858M4 | 16.0 | 1972.01-1974.12 |
| SAVIEM | SM | 340V | MAN-D2858M4 | 15.0 | 1971.01-1980.06 |
| SAVIEM | SM | 340V | MAN-D2858M4 | 16.0 | 1974.01-1980.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1291 | 320 | WD815.61/71 | 12.0 | 1982.02-1982.11 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1291 | 320 | WD815.61/71 | 12.0 | 1982.02-1982.11 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1291 | 330 | WD815.64/67/74 | 12.0 | 1982.09-1987.09 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1491 | 320 | WD815.61/71 | 12.0 | 1982.08-1982.11 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1491 | 330 | WD815.64/67/74 | 12.0 | 1982.09-1987.09 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1891 | 320 | WD815.61/71 | 12.0 | 1982.05-1982.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1891 | 330 | WD815.62/72/68 | 12.0 | 1972.09-1987.09 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 19 S | 34 | WD815.64.79;.67.69 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 19 S | 37 | WD815.66.76 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 19 S | 39 | WD815.66 | 12.0 | 1990.05-1996.12 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 22 S | 34 | WD815.64.67.69 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 22 S | 37 | WD815.66 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 26 S | 34 | WD815.64.67.69 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 26 S | 37 | WD815.66.76 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 2891 | 330 | WD815.97 | 12.0 | 1983.10-1987.12 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 32 S | 34 | WD815.64/67/69/79 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 32 S | 37 | WD815.66/76 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 33 S | 34 | WD815.67 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 40 S | 37 | WD815.66 | 12.0 | 1988.01-1996.06 |
| UNIC | M | 32S | 5.4 | 1967.10-1980.06 | |
| UNIC | M | 32SD | 4.5 | 1967.10-1980.06 | |
| UNIC | M | 42S | 8.0 | 1967.10-1980.06 | |
| UNIC | M | 52S | 7.0 | 1967.10-1980.06 | |
| UNIC | M | 62S | 11.0 | 1967.10-1980.06 | |
| UNIC | MZ | 42S-OM | 8.0 | 1967.04-1980.06 | |
| UNIC | P | 270A | M62S | 11.0 | 1974.01-1981.12 |
| UNIC | P | 270A | M62S | 11.0 | 1974.01-1981.12 |
| UNIC | P | 9A | M32S | 5.4 | 1972.01-1981.12 |
| UNIC | T | 340A | V85S | 15.0 | 1972.01-1981.12 |
| UNIC | T | 340A | V85S | 15.0 | 1972.01-1981.12 |
| VOLVO | B | 10M | THD100DA | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10M | THD100DA | 9.6 | 1979.10-1983.12 |
| VOLVO | B | 10M | THD100DA/DC/DD/EA/EB/EC | 9.6 | 1979.10-1983.12 |
| VOLVO | B | 10M | THD100DC | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10M | THD100DC | 9.6 | 1979.10-1983.12 |
| VOLVO | B | 10M | THD100DD | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10M | THD100DD | 9.6 | 1979.10-1983.12 |
| VOLVO | B | 10M | THD100EA | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100EA | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD100EB | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100EB | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD100EC | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100EC | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD100ED | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100ED | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD100ED/EE/EK | 9.6 | 1979.10-1983.12 |
| VOLVO | B | 10M | THD100EE | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100EE | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD100EK | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100EK | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD101GB | 9.6 | 1986.06- |
| VOLVO | B | 10M | THD101GB/GC/GD/KB/KC | 9.6 | 1986.06- |
| VOLVO | B | 10M | THD101GC | 9.6 | 1986.06- |
| VOLVO | B | 10M | THD101GD | 9.6 | 1986.06-2003.12 |
| VOLVO | B | 10M | THD101KB | 9.6 | 1988.05- |
| VOLVO | B | 10M | THD101KC | 9.6 | 1988.05-2003.12 |
| VOLVO | B | 10R | THD100D | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10R | THD100D | 9.6 | 1978.06-1983.12 |
| VOLVO | B | 10R | THD100D/DA/DB/EB/EC | 9.6 | 1986.06- |
| VOLVO | B | 10R | THD100DA | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10R | THD100DA | 9.6 | 1978.06-1983.12 |
| VOLVO | B | 10R | THD100DB | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10R | THD100DB | 9.6 | 1978.06-1983.12 |
| VOLVO | B | 10R | THD100EB | 9.6 | 1986.06- |
| VOLVO | B | 10R | THD100EB | 9.6 | 1983.11-1983.12 |
| VOLVO | B | 10R | THD100EC | 9.6 | 1986.06- |
| VOLVO | B | 58 | HD100D | 9.6 | 1972.08-1980.03 |
| VOLVO | B | 58T | THD100D | 9.6 | 1972.01-1980.03 |
| VOLVO | B | 59T | THD100D | 9.6 | 1972.10-1979.01 |
| VOLVO | C | 10M | THD100GD/KC | 9.6 | 1984.10-1987.12 |
| VOLVO | C | 10M | THD101GD | 9.6 | 1984.10-1987.12 |
| VOLVO | C | 10M | THD101KC | 9.6 | 1984.10-1985.12 |
| VOLVO (BM) | WHEEL LOADERS | L150E | D12D LD E3; 200kW | 9.6 | 2002.01-2007.12 |
Mehr Informationen
| Gewicht (kg) | 17.000000 |
|---|---|
| Zustand | Neu |
| Die Spannung | 24 V |
| Die Leistung | 5.4 kW |
| Zähnezahl | 11 |
| Drehrichtung | Im Uhrzeigersinn |
| Bemerkungen | Mass terminal 31 |
