24V 5.4kW z11 (IS9016, MS672)
MAHLE Webkatalog
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Letrika Webkatalog
MAHLE Ersatzteilliste
Letrika Ersatzteilliste
Gebrauchsanweisung
Haben Sie Fragen?
561 € 442 €
Auf Lager i Ab Lager in unserem Shop erhältlich. Aktualisierungshäufigkeit: 5 Minuten
Versandkostenrechner
Bestellschlusszeit:
GLS: 15:00 / UPS: 12:30

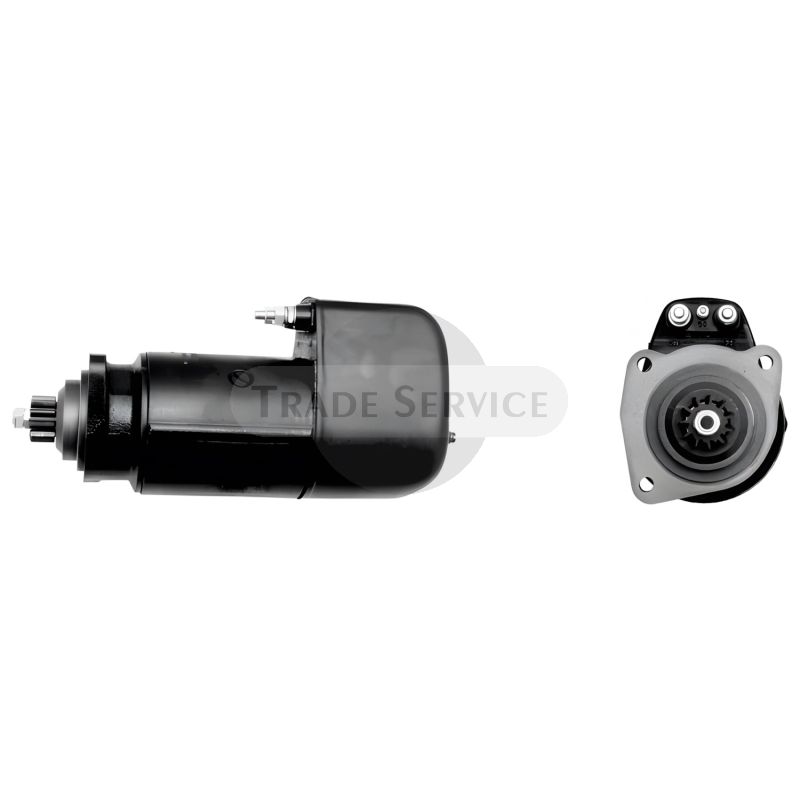

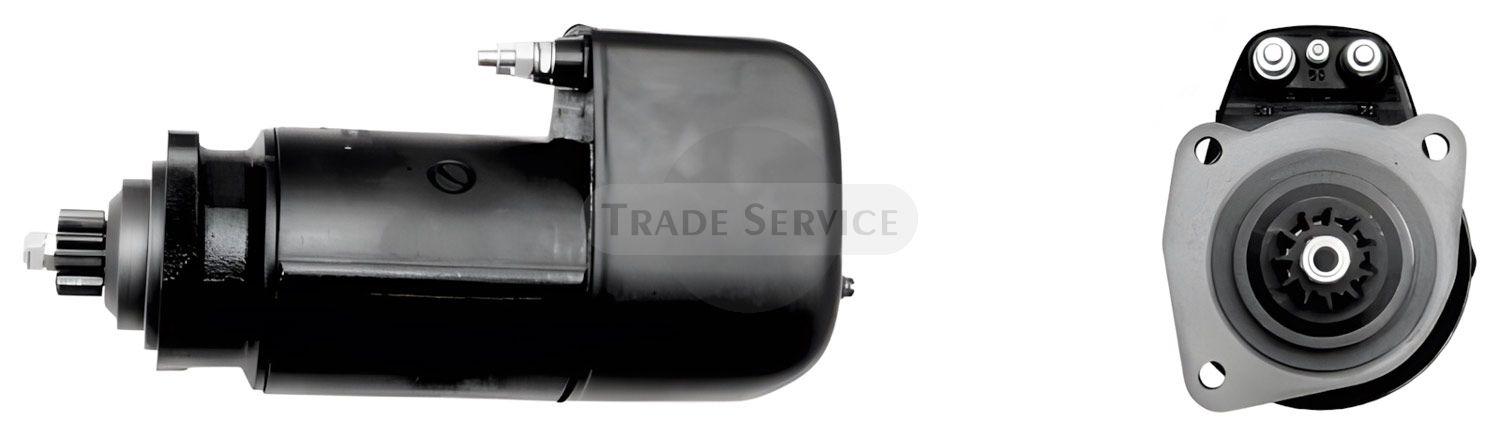

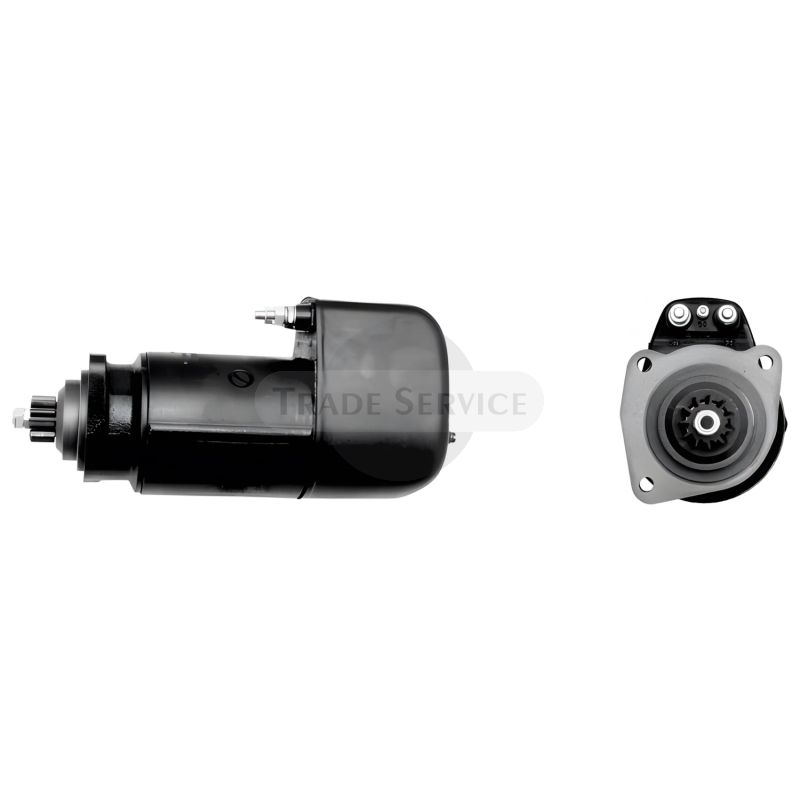

11.139.512 AZK5550 MS672 MAHLE (Letrika, Iskra) Anlasser (11139512)
Ähnliche Produkte
Wir haben andere Produkte gefunden, die Ihnen gefallen könnten!
-
11.139.016 AZK5175 MS507 MAHLE (Letrika, Iskra) Anlasser (11139016)24V 5.4kW z11 (IS9016, MS507) -
-
860519 Prestolite Anlasser24V 6.6kW z10 -
11.139.128 AZK5477 MS545 MAHLE (Letrika, Iskra) Anlasser (11139128)24V 5.4kW z11 (IS9115, MS545)
Information
11.139.512 AZK5550 MS672 MAHLE (Letrika, Iskra) Anlasser (11139512) ist ein zuverlässiges Ersatzteil, das häufig bei AIFO, FIAT, HANOMAG (RHEINSTAHL), MAN, OM (BRESCIA), SAVIEM, STEYR (STEYR-DAIMLER-PUCH AG), UNIC, VOLVO, VOLVO (BM) Motoren verwendet wird.
Genaue Modelle und Referenznummern finden Sie in den Listen unten.
Falls Sie Fragen zu diesem Produkt haben oder Hilfe bei der Suche nach dem richtigen Ersatzteil benötigen, können Sie sich gerne an uns wenden!
Wir sind hier, um Ihnen zu helfen, Ihr Geschäft am Laufen zu halten.
Referenznummern
| AVF (REMY) | IM325, IM350, IM509, IM521 |
|---|---|
| BOSCH | 0001402040, 0001410044, 0001411016, 0001414008, 0001415016, 0001416009, 0001416021, 0986012740, 0986013260 |
| DAF | 636306 |
| DELCO REMY | 19024110, DRS0316, DRS3260 |
| DEUTZ AG (KHD) | 01161280, D2R24X6H7622 |
| EFEL | 08790, 22606 |
| ELMOT | 6110000, R2311 |
| FIAT | 61227993 |
| HELLA | 8EA726154001, 8EA730226001, CS506, CS710 |
| LESTER | 18253 |
| LIEBHERR | 6000733 |
| LUCAS | LRS00860, LRS02178 |
| MAGNETI MARELLI | 943252190, MSR690 |
| MAHLE (Letrika, Iskra) | IS9016, 11139512, AZK5550, MS672, 11139075, AZK5429, 11139016, AZK5175, MS507, 11130601, AZL3653 |
| MAN | 51262017034, 51262017048, 51262017100, 51262019034 |
| MERCEDES-BENZ | 0011512901 |
| PRESTOLITE | 860504GB, 860519, 860519GB |
| REAL | 20401241, 20401251 |
| RENAULT | 5000270909 |
| SAVIEM | 5000270909 |
| STEYR | 81500090049 |
| UNIC | 000227993, 061227993, 061662550 |
| VALEO | 458340 |
| VOLVO | 11030906, 11129121, 11139128, 240504, 465929, 5001683, 5003027 |
Kompatibilität
| Hersteller | Modell | Typ | Motor | Leistung | Baujahr |
|---|---|---|---|---|---|
| AIFO | M | 32S | 5.4 | 1980.07-1983.05 | |
| AIFO | M | 32SD | 4.5 | 1980.07-1983.05 | |
| AIFO | M | 42S | 8.1 | 1980.07-1983.05 | |
| AIFO | M | 52S | 6.7 | 1980.07-1983.05 | |
| AIFO | M | 62S | 10.8 | 1980.07-1983.05 | |
| AIFO | MZ | 42S-OM | 8.1 | 1980.07-1983.05 | |
| FIAT | 190 | Unic-V85S | 15.0 | 1972.02-1982.10 | |
| FIAT | 190 | UnicV85S | 15.0 | 1972.02-1982.10 | |
| FIAT | 260 | UnicV85S | 14.9 | 1972.02-1982.10 | |
| HANOMAG (RHEINSTAHL) | K | 12C | D562 | 8.2 | 1972.07-1973.05 |
| MAN | 20 t | 22.304FVS.FN | D2858MX-090 | 15.4 | 1971.05-1973.12 |
| MAN | 22 t | 22.304FVS.FN | D2858MX-090 | 15.4 | 1971.05-1973.12 |
| MAN | 26 t | 26.304DF.DFK.DFKA.DFS | D2858MX-090 | 15.4 | 1971.05-1973.12 |
| MAN | 30 t | 30.304DFSA | D2858MX-090 | 15.4 | 1971.05-1973.12 |
| MAN | D2148 | M | 12.9 | 1965.01-1974.12 | |
| MAN | D2148 | MT | 12.9 | 1965.01-1974.12 | |
| OM (BRESCIA) | 150 | -3AC.N.L | Unic-L63S/24 | 8.9 | 1971.01-1981.12 |
| OM (BRESCIA) | 150 | 3AC.N.L.T | Unic-L63S/24 | 8.9 | 1971.01-1981.12 |
| OM (BRESCIA) | 150 | C.N.L.T | Unic-L63S/24 | 8.9 | 1971.01-1981.12 |
| OM (BRESCIA) | 190 | C.L.N.T | Unic-V85S/4 | 14.8 | 1973.01-1981.12 |
| OM (BRESCIA) | 260 | -4AN.L | Unic-V85S/4 | 14.8 | 1973.01-1981.12 |
| OM (BRESCIA) | 260 | -4AN.L.C.N.T | Unic-V85S/4 | 14.8 | 1973.01-1981.12 |
| OM (BRESCIA) | 260 | C.N.T | Unic-V85S/4 | 14.8 | 1973.01-1981.12 |
| SAVIEM | SM | 280TU | MAN-D2658M4 | 15.0 | 1971.01-1976.12 |
| SAVIEM | SM | 280TU | MAN-D2658M4 | 15.0 | 1971.01-1976.12 |
| SAVIEM | SM | 300.T | MAN-D2658M41 | 15.0 | 1971.01-1976.12 |
| SAVIEM | SM | 300.T | MAN-D2658M41 | 15.0 | 1971.01-1976.12 |
| SAVIEM | SM | 320 | MAN-D2858M4 | 16.0 | 1972.01-1974.12 |
| SAVIEM | SM | 340V | MAN-D2858M4 | 15.0 | 1971.01-1980.06 |
| SAVIEM | SM | 340V | MAN-D2858M4 | 16.0 | 1974.01-1980.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1291 | 320 | WD815.61/71 | 12.0 | 1982.02-1982.11 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1291 | 320 | WD815.61/71 | 12.0 | 1982.02-1982.11 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1291 | 330 | WD815.64/67/74 | 12.0 | 1982.09-1987.09 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1491 | 320 | WD815.61/71 | 12.0 | 1982.08-1982.11 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1491 | 330 | WD815.64/67/74 | 12.0 | 1982.09-1987.09 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1891 | 320 | WD815.61/71 | 12.0 | 1982.05-1982.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 1891 | 330 | WD815.62/72/68 | 12.0 | 1972.09-1987.09 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 19 S | 34 | WD815.64.79;.67.69 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 19 S | 37 | WD815.66.76 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 19 S | 39 | WD815.66 | 12.0 | 1990.05-1996.12 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 22 S | 34 | WD815.64.67.69 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 22 S | 37 | WD815.66 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 26 S | 34 | WD815.64.67.69 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 26 S | 37 | WD815.66.76 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 2891 | 330 | WD815.97 | 12.0 | 1983.10-1987.12 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 32 S | 34 | WD815.64/67/69/79 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 32 S | 37 | WD815.66/76 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 33 S | 34 | WD815.67 | 12.0 | 1987.10-1996.06 |
| STEYR (STEYR-DAIMLER-PUCH AG) | 40 S | 37 | WD815.66 | 12.0 | 1988.01-1996.06 |
| UNIC | M | 32S | 5.4 | 1967.10-1980.06 | |
| UNIC | M | 32SD | 4.5 | 1967.10-1980.06 | |
| UNIC | M | 42S | 8.0 | 1967.10-1980.06 | |
| UNIC | M | 52S | 7.0 | 1967.10-1980.06 | |
| UNIC | M | 62S | 11.0 | 1967.10-1980.06 | |
| UNIC | MZ | 42S-OM | 8.0 | 1967.04-1980.06 | |
| UNIC | P | 270A | M62S | 11.0 | 1974.01-1981.12 |
| UNIC | P | 270A | M62S | 11.0 | 1974.01-1981.12 |
| UNIC | P | 9A | M32S | 5.4 | 1972.01-1981.12 |
| UNIC | T | 340A | V85S | 15.0 | 1972.01-1981.12 |
| UNIC | T | 340A | V85S | 15.0 | 1972.01-1981.12 |
| VOLVO | B | 10M | THD100DA | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10M | THD100DA | 9.6 | 1979.10-1983.12 |
| VOLVO | B | 10M | THD100DA/DC/DD/EA/EB/EC | 9.6 | 1979.10-1983.12 |
| VOLVO | B | 10M | THD100DC | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10M | THD100DC | 9.6 | 1979.10-1983.12 |
| VOLVO | B | 10M | THD100DD | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10M | THD100DD | 9.6 | 1979.10-1983.12 |
| VOLVO | B | 10M | THD100EA | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100EA | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD100EB | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100EB | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD100EC | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100EC | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD100ED | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100ED | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD100ED/EE/EK | 9.6 | 1979.10-1983.12 |
| VOLVO | B | 10M | THD100EE | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100EE | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD100EK | 9.6 | 1984.01-1986.10 |
| VOLVO | B | 10M | THD100EK | 9.6 | 1980.10-1983.12 |
| VOLVO | B | 10M | THD101GB | 9.6 | 1986.06- |
| VOLVO | B | 10M | THD101GB/GC/GD/KB/KC | 9.6 | 1986.06- |
| VOLVO | B | 10M | THD101GC | 9.6 | 1986.06- |
| VOLVO | B | 10M | THD101GD | 9.6 | 1986.06-2003.12 |
| VOLVO | B | 10M | THD101KB | 9.6 | 1988.05- |
| VOLVO | B | 10M | THD101KC | 9.6 | 1988.05-2003.12 |
| VOLVO | B | 10R | THD100D | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10R | THD100D | 9.6 | 1978.06-1983.12 |
| VOLVO | B | 10R | THD100D/DA/DB/EB/EC | 9.6 | 1986.06- |
| VOLVO | B | 10R | THD100DA | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10R | THD100DA | 9.6 | 1978.06-1983.12 |
| VOLVO | B | 10R | THD100DB | 9.6 | 1984.01-1985.01 |
| VOLVO | B | 10R | THD100DB | 9.6 | 1978.06-1983.12 |
| VOLVO | B | 10R | THD100EB | 9.6 | 1986.06- |
| VOLVO | B | 10R | THD100EB | 9.6 | 1983.11-1983.12 |
| VOLVO | B | 10R | THD100EC | 9.6 | 1986.06- |
| VOLVO | B | 58 | HD100D | 9.6 | 1972.08-1980.03 |
| VOLVO | B | 58T | THD100D | 9.6 | 1972.01-1980.03 |
| VOLVO | B | 59T | THD100D | 9.6 | 1972.10-1979.01 |
| VOLVO | C | 10M | THD100GD/KC | 9.6 | 1984.10-1987.12 |
| VOLVO | C | 10M | THD101GD | 9.6 | 1984.10-1987.12 |
| VOLVO | C | 10M | THD101KC | 9.6 | 1984.10-1985.12 |
| VOLVO (BM) | WHEEL LOADERS | L150E | D12D LD E3; 200kW | 9.6 | 2002.01-2007.12 |
Mehr Informationen
| Gewicht (kg) | 16.980000 |
|---|---|
| Zustand | Neu |
| Die Spannung | 24 V |
| Die Leistung | 5.4 kW |
| Zähnezahl | 11 |
| Drehrichtung | N/A |
| Bemerkungen | Mass terminal 31 |
